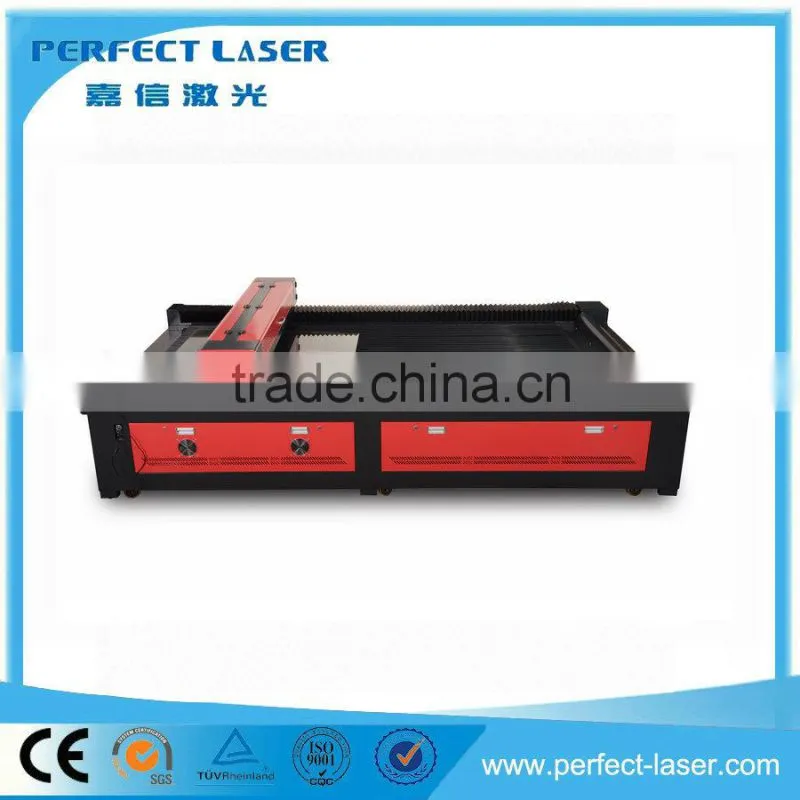

Pefect Laser high quality 90W PEDK-130250 CO2 engraving machine with CE
60w/80w/100w/120w/150w Craft/Wood/Art 3d Laser Engraving Machine is a multi-function laser process device which combines the functions of drawing, engraving and cutting. It adopts automatic stainless steel crawler platform & large scope.
CO2 metal engraving machine Features
1. Adopts automatic stainless steel crawler platform & large scope, can meet the demand of large-format cutting, carving for clothing and other fields.
2. With advantages of small speed, higher precision can save time and greatly improve production efficiency combing with automatic feeding device.
3. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
4. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
6. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
9. Red Light Pointer realizes the exact position without laser.
10. Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.
11. Optional Imported Ball Screw Rod, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.
CO2 metal engraving machine Application Fields
Our CO2 Laser Engraving Machine is widely used in garment material: leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, shoe engraving, jeans engraving, carpet engraving and cutting, toy cutting, woolen cutting, denim engraving and cutting. Advertisement material, such as acrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting, organic glass engraving, plexiglass engraving, marble engraving, granite engraving, Gum engraving,paper engraving and cutting.
CO2 metal engraving machinTechnical Parameter
Model |
PEDK-130180 |
PEDK-130250 |
PEDK-160260 |
Working Area |
1300×1800mm |
1300×2500mm |
1600×2600mm |
Laser Power |
60W / 80W / 100W / 120W / 150W |
||
Laser Type |
Hermetic and Detached Co2 Laser Tube |
||
Engraving Speed |
1-60000mm/min |
||
Cutting Speed |
1-10000mm/min |
||
Repeat Location Accuracy |
± 0.0125mm |
||
Laser Power Controlling |
1-100% Manual Adjustment and Software Controlling |
||
Voltage |
220V(±10%) 50Hz |
||
Cooling Mode |
Water Cooling and Protect System |
||
Cutting Platform |
Professional Thickening Strip or Honeycomb Work Table |
||
Controlling Mode |
CNC Professional Control System |
||
Support Graphics Formats |
BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT |
||
Power Controlling Mode |
Laser Energy Combining Movement Control System |
||
Control Software |
Original Perfect Laser Engraving & Cutting Software |
||
CO2 metal engraving machine series
CO2 metal engraving machine Working Video on Youtube:
Perfect Laser-Laser Engraving & Cutting On Acrylic: http://youtu.be/wOYac56L8Sc
Perfect Laser-Wood Laser Engraving Machine: http://youtu.be/3Mp99xHgg9E
Perfect Laser-Wood Laser Cutting Machine: http://youtu.be/UDzcYGRXOKE
Perfect Laser-Leather Laser Engraving & Cutting Machine: http://youtu.be/sbfxlLxZXl8
Perfect Laser-Fabric Garment Cloth Laser Cutting Machine: http://youtu.be/QqwQRKKiajQ
Perfect Laser-Acrylic, PVC board Laser Engraving machine: http://youtu.be/6ey2lmpzMlI
Perfect Laser-Laser Engraving Machine With Auto Feeding System: http://youtu.be/uRzHB_J7tTY
Perfect Laser Laser Engraving Machine with auto feeding and rolling system: http://youtu.be/qfjGqYHyhRE
Perfect Laser-Double Heads Laser Engraving Machine: /watch?v=3rF6Ahqm24k
Perfect Laser-CCD Camera Automatic locating Trademark Laser Cutting Machine:
http://youtu.be/_i_ng8YLNe4
CO2 metal engraving machine make Samples:
Guarantee & After Sales Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English verson manual and operation video CD disc.
Machine Details:
Our Certifications:
Package:
Exhibition Show:
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact –China Perfect Laser!
- The exact material you want to engrave/cut? (wood, acrylic, cloth, fabric, leather, rubber, paper, plastic, marble....)
- The cutting depth on above materials?(max thickness, 3 mm, 6 mm, 15 mm, 20 mm....)
- The working area you demand? (max dimension of material, width*length, 600*400 mm, 900*600 mm, 1300*900 mm,...)
Need more information please feel free to contact us-Perfect Laser!---Right Now!!
Skype:perfectlaser018 whatsapp:008613871092053
