60W PEDK-9060 Plywood/cloth/acrylic/wood Laser Engraving and Cutting Machine
60W PEDK-9060 Plywood/cloth/acrylic/wood Laser Engraving and Cutting Machine Features
This series products adopt imported proprietary sliding guide,and equip with auxiliary facilities,such as blower, exhaust fan, infrared, foot pedal and other auxiliary facilities.Also,this series products integrate advanced high-speed continuous curve motion control card, and adopt self-developed high-speed laser engraving & cutting controlling software.
Plywood/cloth/acrylic/wood PEDK-9060 Laser Engraving and Cutting Machine Applied Industries
It has been widely used in the fields of plexiglass, architectural models, rubber plates, bamboo products.For cutting and carving on plexiglass products, acrylic art & crafts panel, lenses, wood &cutting carving, advertising materials, crystal characters, easel, packing boxes, models, toys and furnitures,etc.
Advantages of Laser Engraving & Cutting Machine
1. We use ball screw rod to make the up and down table, which ensure its long-term using and precision. While other company may have less precision, and will be noise after a period using.
2. We use American IIV company's reflect mirror and focus lens, which prolong the lifetime of the spare parts.
3. For laser tube, we use the Chinese top brand laser tube, have very stable performance, lifetime can reach 3000 hours. Also, we have another brand laser tube with 10000 hours lifetime if you require, we can use it in our order.
4. For water chiller, we use both CW5000 for single head, and CW5200 for double head laser machine.

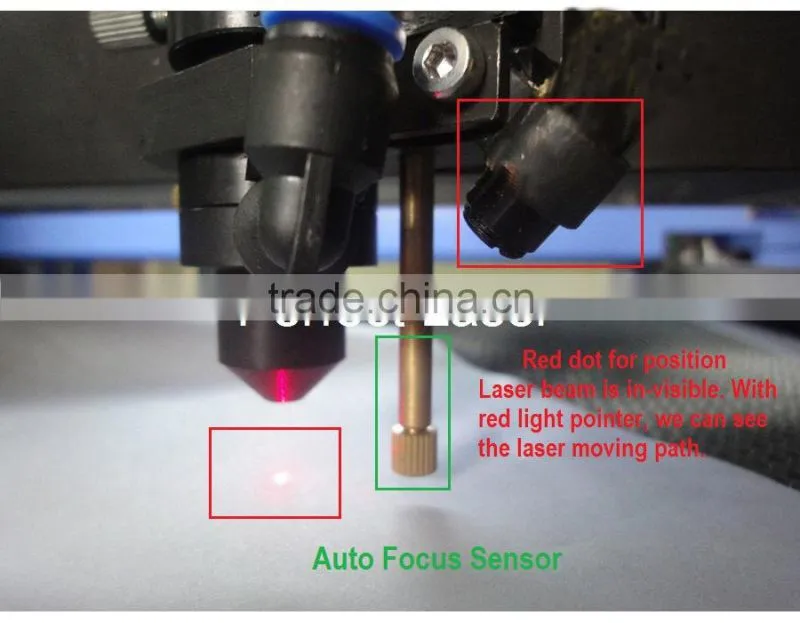

5. All the machine are use red pointer and auto focus system.
6. All the machine have LCD offline control system + USB port.
7. The bearing we use Japan import NSK brand, which ensure the long time performance and accuracy.
8. the transforming belt adopt the famous FULONG brand, it have the metal in the material, so it is fasten and not easy to loosen.
9. All the power supply and laser device are will be running for at least 48 hours testing to ensure it's good performance.
All the features are more than above
60W PEDK-9060 Plywood/cloth/acrylic/wood Laser Engraving and Cutting Machine Technical Data
Laser Type |
Hermetic and detached CO2 laser tube |
Laser Power |
60W |
Engraving Area |
600×900mm |
Engraving Speed |
0-900mm/s |
Cutting Speed |
0-300mm/s |
Repeating Location Accuracy |
±0.0125mm |
Working Voltage |
220V ±10% 50HZ |
Machine Power |
900W |
Controling System |
CNC professional controlling system |
Supporting Graphics Formats |
BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,CDR,DWG,DXF |
Cooling Mode |
Water-cooling and protection system |
Auxiliary Devices |
Exhaust fan & exhaust pipe |
Cutting Platform |
Professional strip work table |
Power Control Mode |
Laser power and moving system cooperate |
Control Software |
Original PERFECT LASER software |
Machine Size |
1400*960*1150mm |

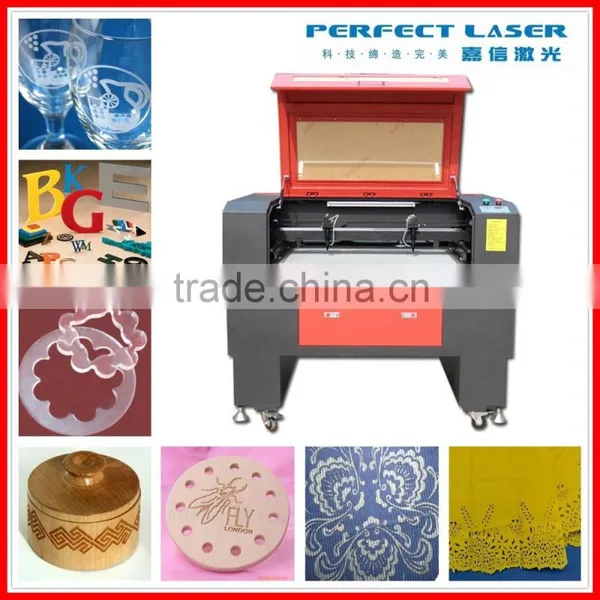

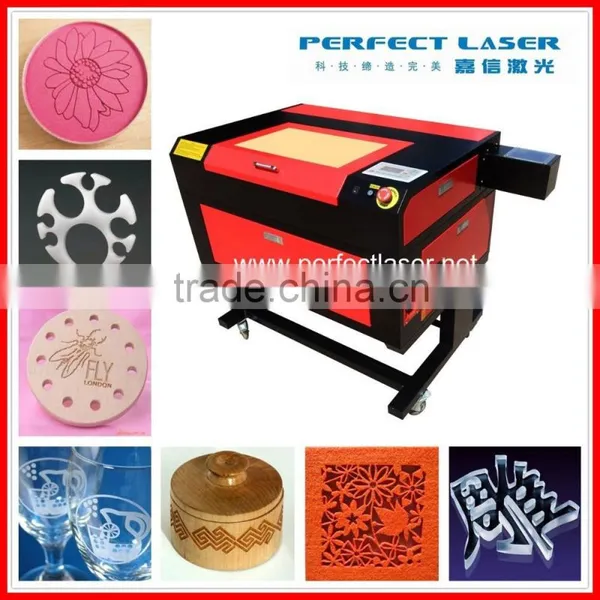

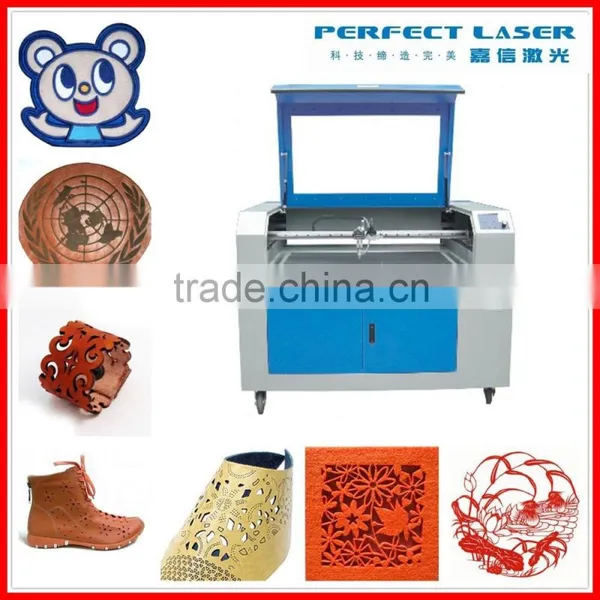

Plywood/cloth/acrylic/wood PEDK-9060 Laser Engraving and Cutting Machine Samples
Fittings:
Guarantee & After Sales Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English verson manual and operation video CD disc.
Certifications:
Package:
Exhibition Show:
Video, Machine Photo,Samples, if you need , pls send me inquiry!
