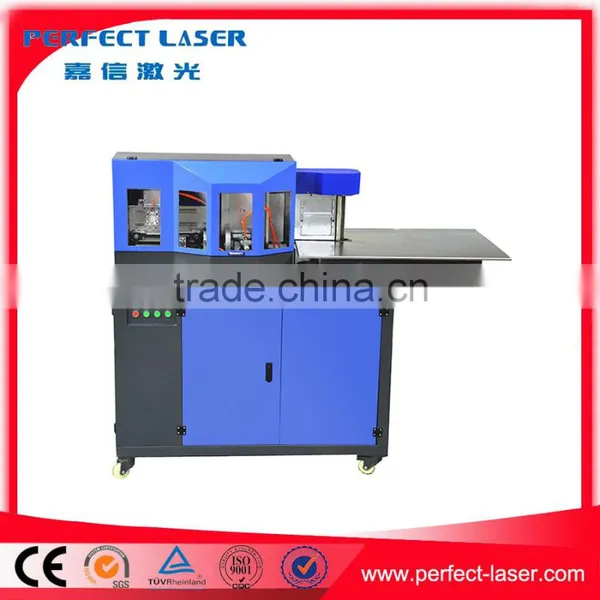

CE Certified Automatic Aluminum PEL-100 Channel Letter Bending Machine
US$ 2,500 - 7,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
Perfectlaser
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum S/S Zinc Plate Two Sided Notching PEL-500 Channel Letter Bending MachineUS$ 2,500 - 7,500MOQ: 1 Set -
Perfect Laser Hot Sell PEL-100 Aluminim0.5-1.5mm Channel Letter/character Bending Machine for Logo Sign AdevetisingUS$ 2,500 - 7,500MOQ: 1 Set
-
Perfect Laser Hot Sell PEL-300 PC Control Tyle Channel Letter/character Bending Machine for Logo Sign AdevetisingUS$ 2,500 - 7,500MOQ: 1 Set
-
Perfect Laser Hot Sell PEL-200 PC Control Tyle Channel Letter Bending Machine for Logo Sign AdevetisingUS$ 2,500 - 7,500MOQ: 1 Set
-
Perfect Laser Hot Sell PEL-400 LCD Tyle Channel Letter/character Bending Machine for Logo Sign AdevetisingUS$ 2,500 - 7,500MOQ: 1 Set
Condition
New
Place of Origin
Hubei, China
Brand Name
Perfectlaser
Model Number
PEL-100
Certification
CE
Simple Trim Cap Aluminum Automatic 3D LED Channel Letter Bending Machine
Specifications of aluminum trim cap bending machine
letter auto bending machine
1.can bend Alu,steel,metal 0.5-1.5mm
2.LCD Touch Control
3make logos,LED signs,light box,billbord
1.Brief Introduction of aluminum trim cap bending machine :

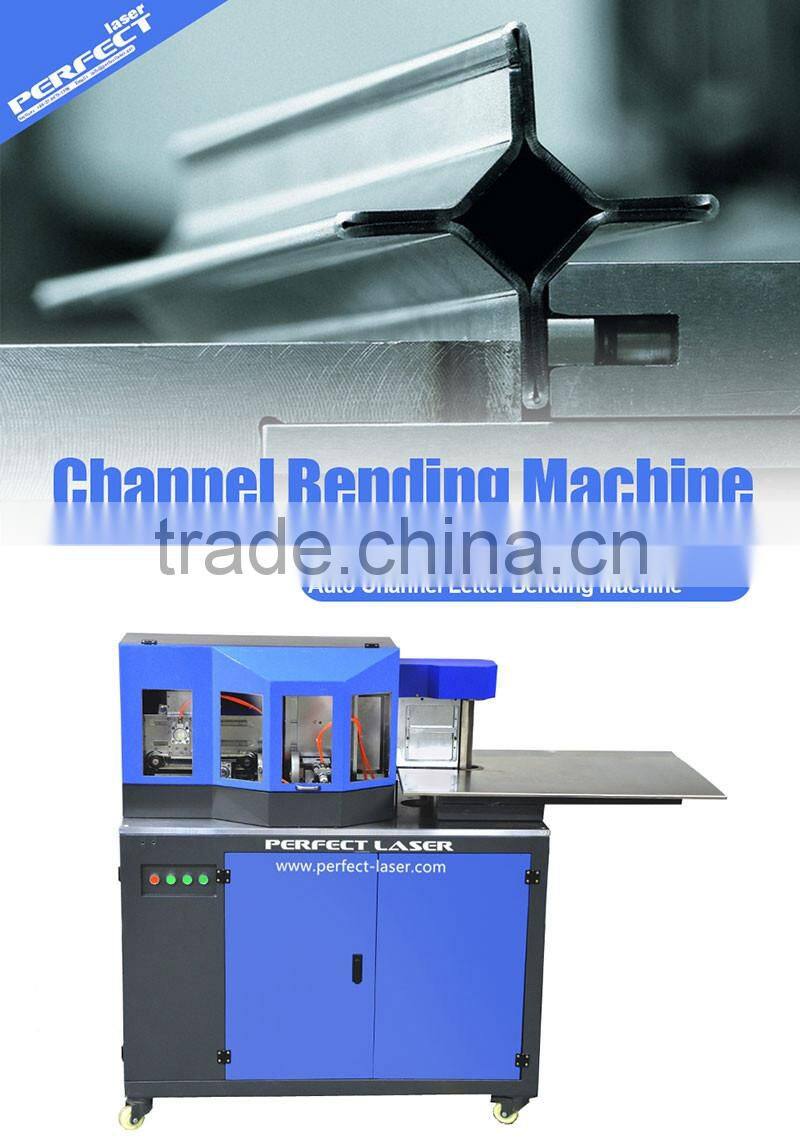

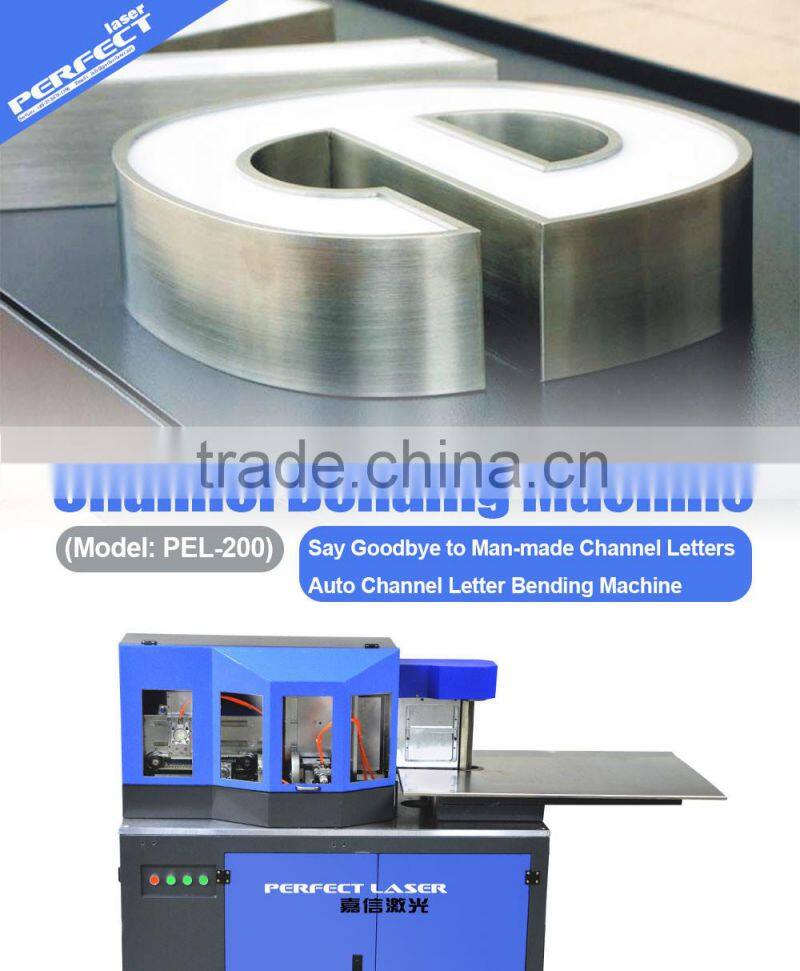

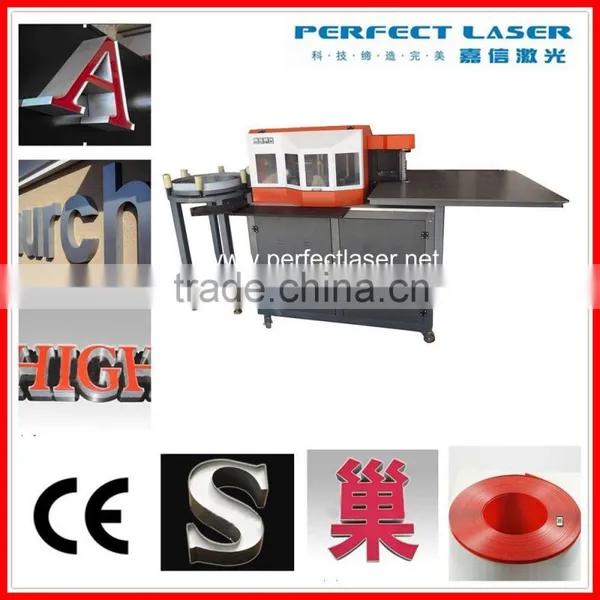

Automatic CNC bending machine, (also called CNC letter bending machine or character bending machine) is a new advertising production equipment, which can be used for logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising production.
2.Application of aluminum trim cap bending machine:
1) Applicable Materials: Aluminum strip bending, plastic, iron bending, galvanized steel bending ect. Suitable width:30mm-150mm.
2) Applicable Industries: advertising industry, such as logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising production.
3.Technical Data of aluminum trim cap bending machine :
Model: |
PEL-100 |
PEL-200 |
PEL-300 |
PEL-400 |
|
Control Type |
PC Control Type For Bending Aluminum Only |
PC Control Type For Bending All SS,CS,MS,Al |
Auto Bending & Auto Cutting |
LCD Touch Screen Control Type |
|
Bending Material: |
Only used to bend Aluminum |
Can bend all kinds of Stainless Steel, Carbon Steel, Mild Steel, Galvanize Plate, Aluminum, Iron, etc..... |
|||
|
Max. Processed Thickness: |
Only Aluminum: 0.5-1.5 mm |
Aluminum: 0.5 - 1.5 mm Stainless steel: 0.5 -1.0 mm (or customized up to 0.5-1.5mm for SS) Carbon Steel: 0.5 – 1.2 mm Mild Steel: 0.5-1.2mm Galvanize Plate: 0.5-1.2 mm Iron Steel: 0.5-1.2 mm |
|||
Max. Processed Width: |
<180 mm |
<150 mm |
|||
Voltage: |
220V |
||||
Size: |
1740*760*1450 mm |
||||
Weight: |
400 kgs |
||||
Import File Format |
PLT |
||||
Export File Format |
DAT |
||||
Feed speed: |
5-20 Meter / Min |
||||
Precision |
0.05 mm |
||||
Remark: |
Machine only used to bend Aluminum Strip. |
Machine used to bend All SS, CS, MS, Aluminum, Galvanize Plate. |
This model has the function of Automatic Cutting The Letter after finishing bending. |
Adopt advanced LCD Touching Screen to control. |
|
|
Computer system and computer screen is not included in Price. |
No need PC system, Simple and compact. |
||||
4.Product Features of aluminum trim cap bending machine :

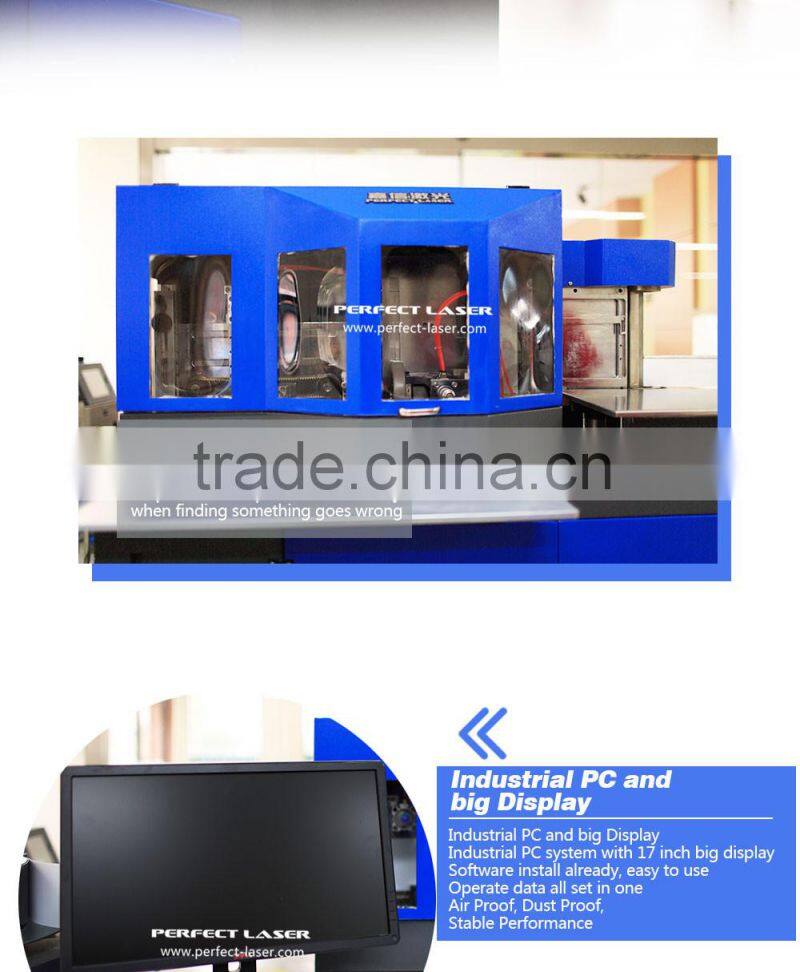

1) Friendly man-machine interface, simple configuration. Simply enter the processing of text, graphic design files, and then the machine can process them on materials automatically.
2) Automatically feed, notch for two sides(angel 45-135), and roll Japanese linear module(screw drive), precision motor clamp.
3) No need of air pump, low voice and environment-friendly.
4) The operating system consist of stepping up, cutting, swing, promotion and demotion of,
feed motor, bending motor, diffusion knife. Feeding ,bending and swinging are controlled by stepper motor. On the basis of the length , radian and angle which are figured out by microcomputer, the machine can feed , cut angle and bend precisely.

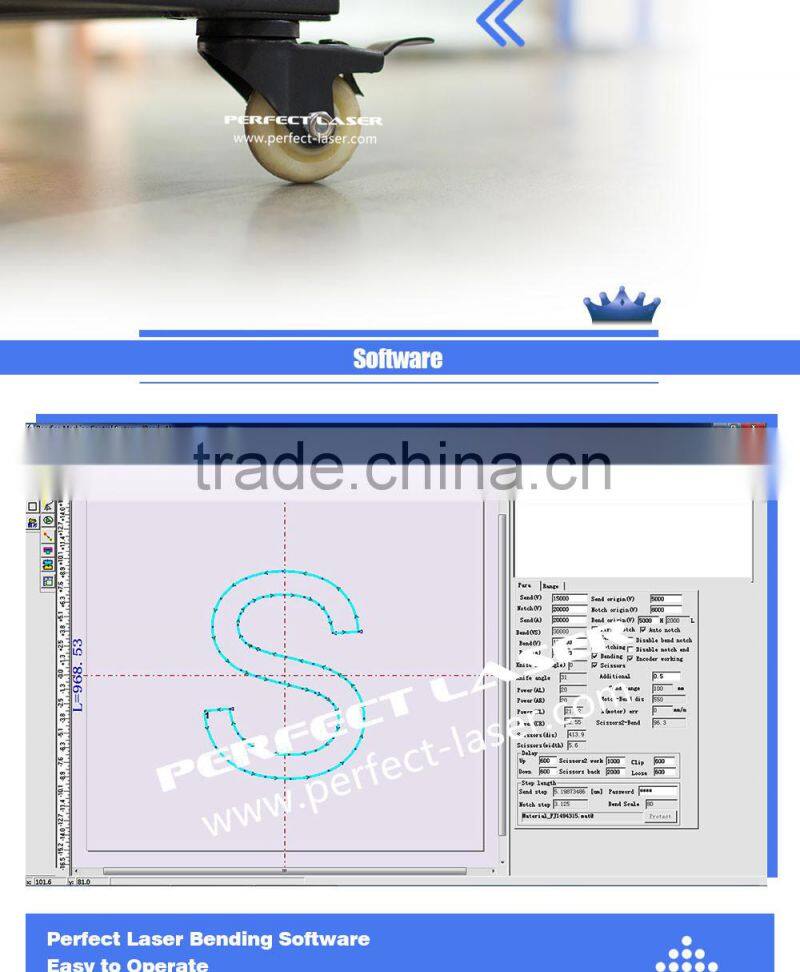

5) A unique three-dimensional process simulation technology, two-dimensional design file to be able to display three-dimensional effects, supplemented by translation, rotation, zoom and other functions, enables full observation and monitoring of whole working process.
6) The original double-bent knife parallel bending technology to save time and greatly improve the processing efficiency, the maximum bending angle reached 135 °.
7) High precision machining, feeding precision can reach 0.01mm, bending accuracy up to 0.4 °.
8) With precision automatic calibration function, based on the way of the processing material, self-adjusting process parameters, so that it can match with a variety of engraving machines and cutting machine, meet a variety of complex embedded process accuracy as much as possible.
9) Wide range of applications: CNC Bending machine can process 2mm strip of aluminum, galvanized steel, iron and other metal sheet.
10) It can work in 0.05 precision, and work together with laser engraving machine, plasma cutting machine to realize the advertisement processing.

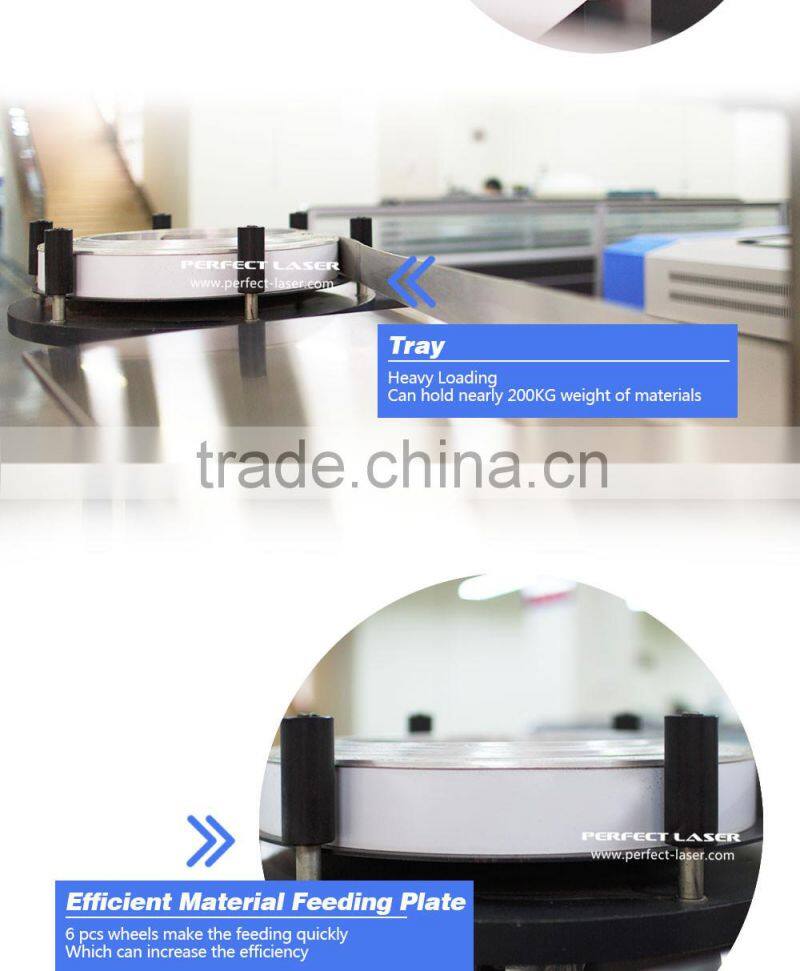

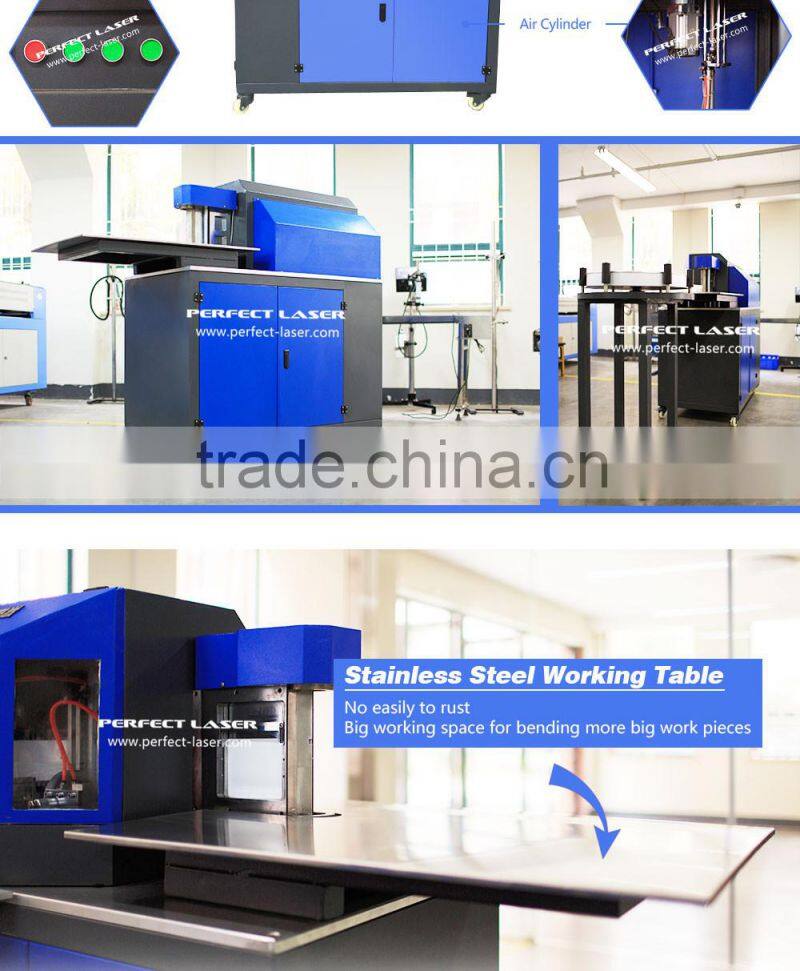

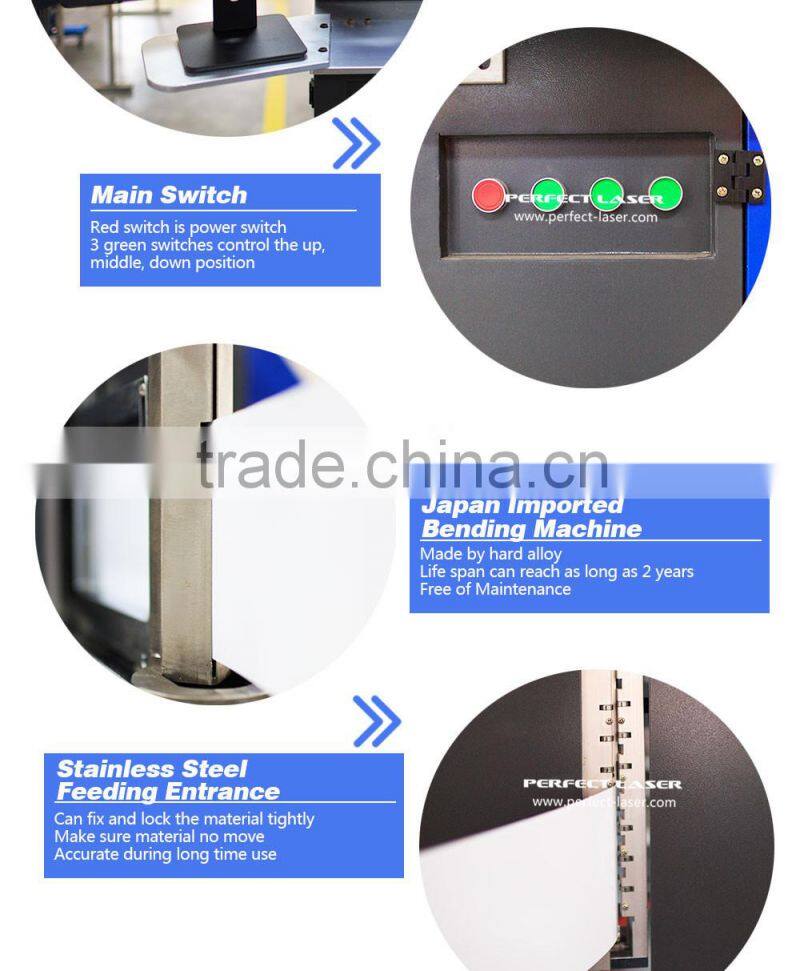

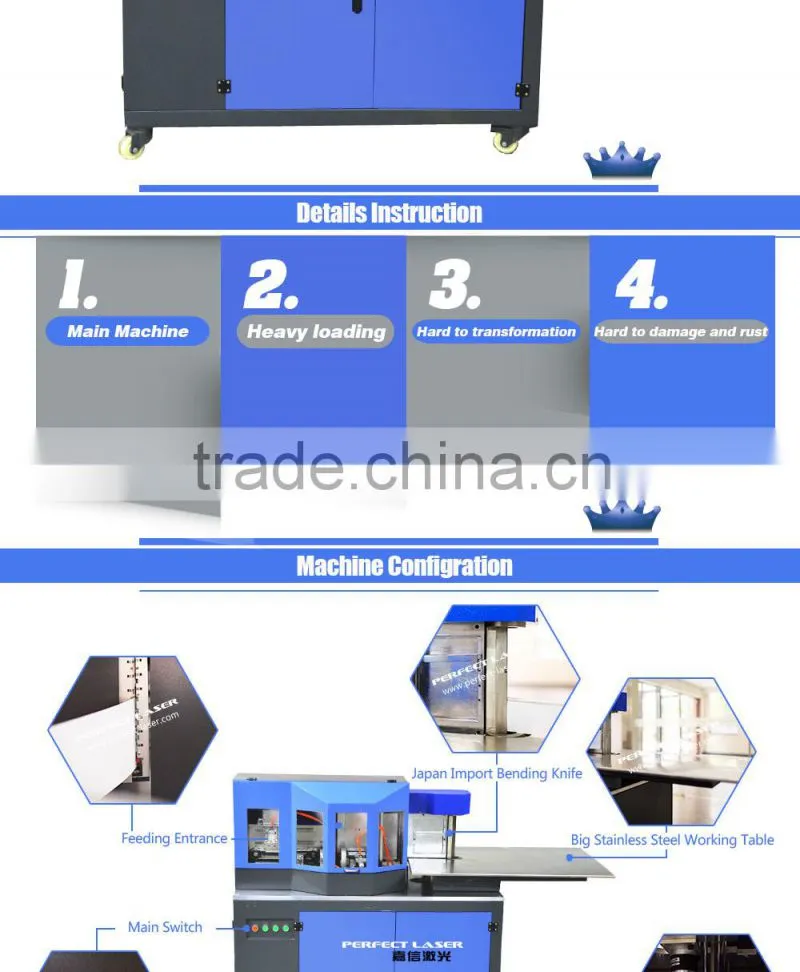

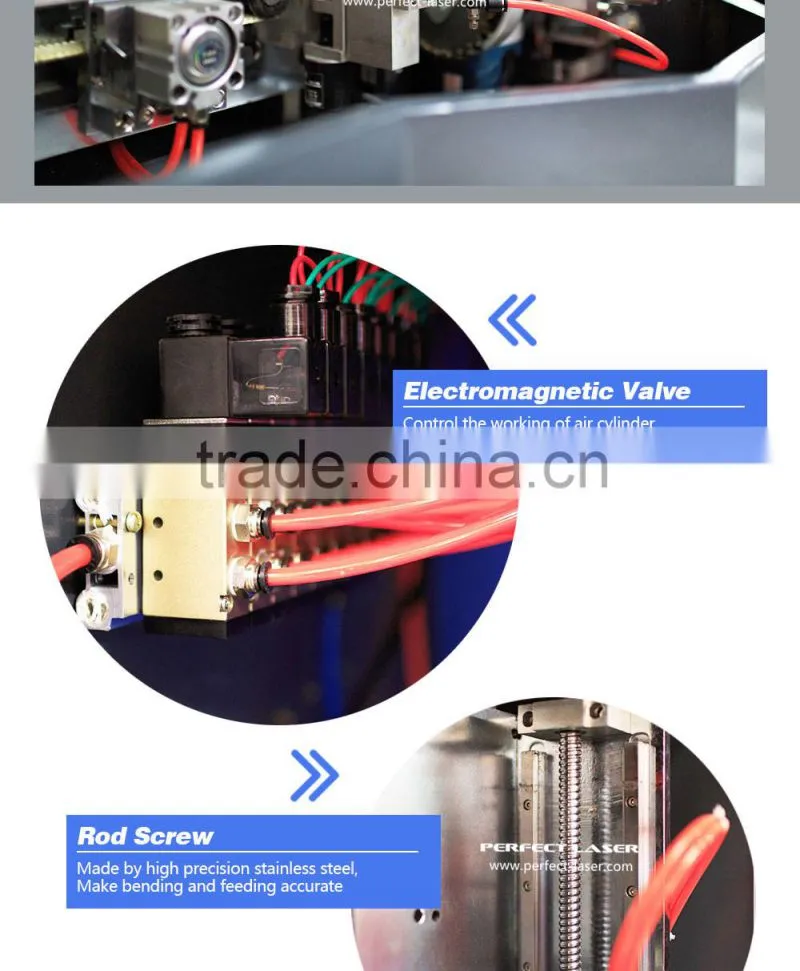

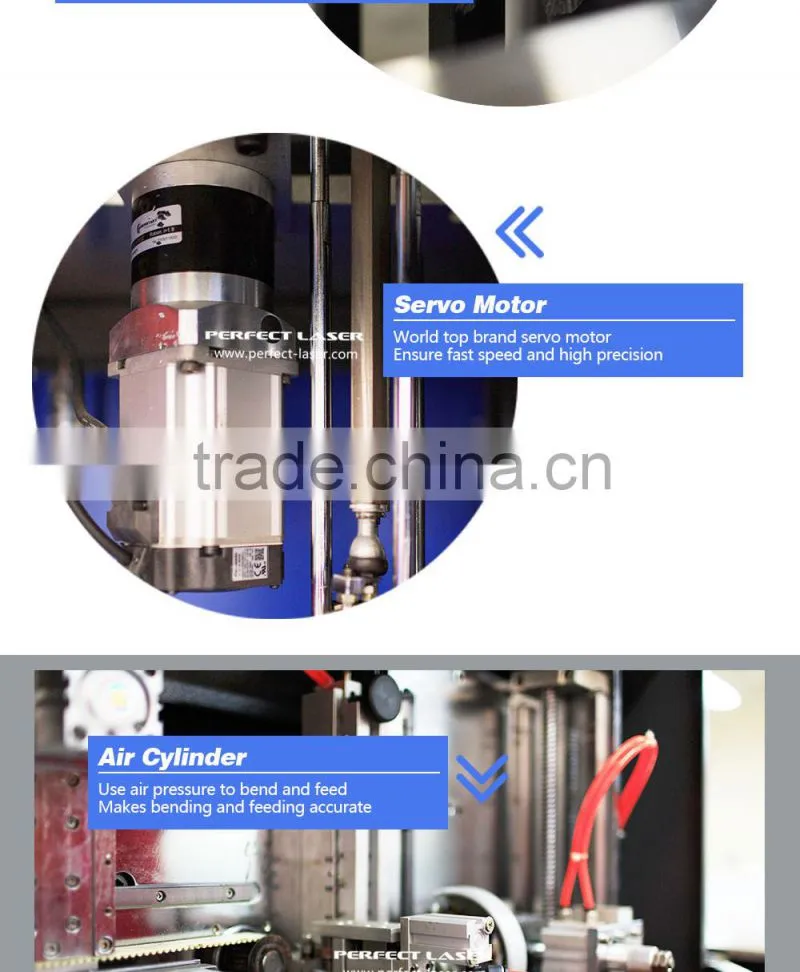

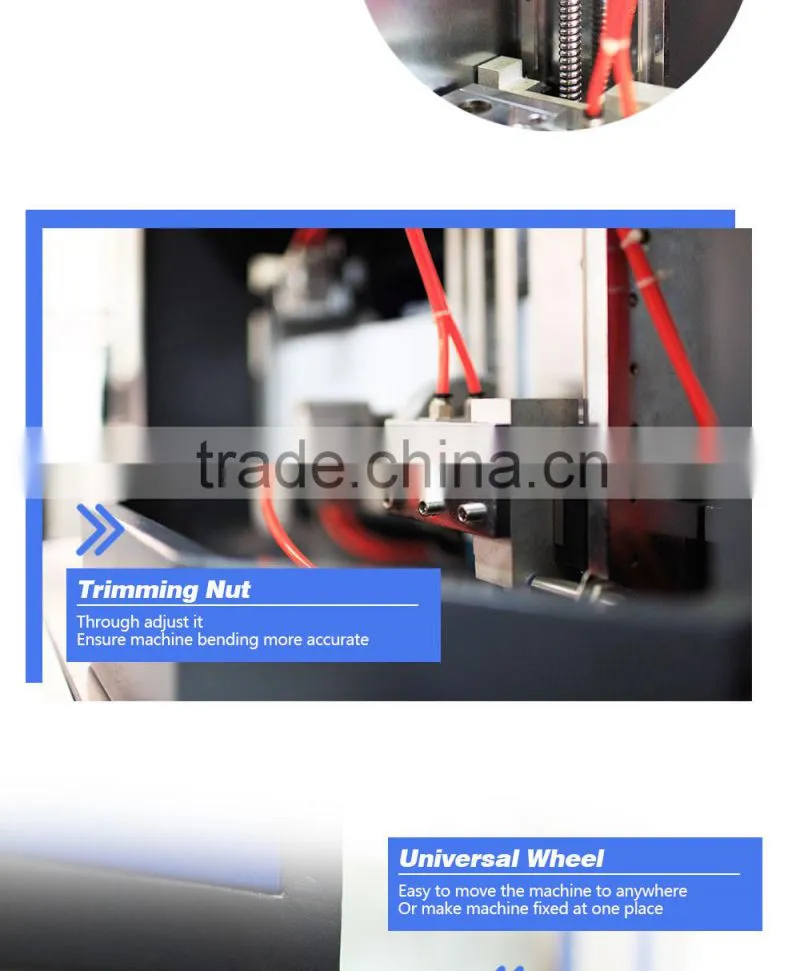

5.details of aluminum trim cap bending machine :
