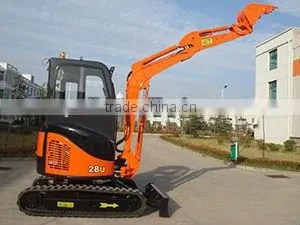

Help CenterHydraulic Excavator
Related Products
Specifications
Our watchword is surviving on quality, developing on innovation and make best profit for clients. Our company already met ISO900
A. Overall height |
2685mm |
B. Overall length |
4460mm |
C. Track overall width |
1550mm |
D. Track shoe width |
300mm |
E. Upperstructure ground clearance |
575mm |
F. Minimum ground clearance |
255mm |
G. Center to center(idler to sprocket) |
1635mm |
H. Track overall length |
2125mm |
I. Length of Chasis |
2535mm |
J. Backfill blade height |
350mm |
K. Bucket swing radius(Left) |
690mm |
L. Bucket swing radius(Right) |
625mm |
M. Tail swing radius |
790mm |
Working weight |
2800kg |
Ground pressure |
29KPa |
A. Maximum dig radius |
4825mm |
B. Dig radius at groundline |
4675mm |
C. Maximum dig depth |
2740mm |
D. Dump height |
3230mm |
E. Overall reach height |
4585mm |
F. Bucket rotation |
173° |
G. Vertical straight wall dig depth |
2175mm |
H. Lift above groud |
370mm |
J. Drop below groud |
240mm |
K. Minimum rotation radius |
2130mm |
Arm digging force |
13.4KN |
Bucket digging force |
17.8KN |
