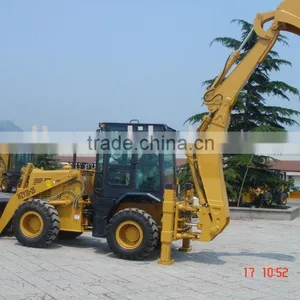

WZY30-25 Backhoe Loaders

Name: WZY30-25 Backhoe Loaders
Brand: Topall
SKU: 112666613

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

Topall

Model Number:

WZY30-25

Jurong Topall Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NANJING

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name Topall

Model Number WZY30-25

Place of Origin Jiangsu, China

Type Front Loader

Moving Type Wheel Loader

Specifications

Backhoe loaders-construction mahcine/loader/construction machine
operating weight is 7600kg

Model		WYZ30-25
Dimension technological parameters	Total operating weight	7600kg
	Transportation dimension	590023403750
	Wheel base	2.25m
	Min ground clearance	0.31m
	Loading bucket capacity	36.43KN
	Bucket discharge height	2.7m
	Bucket discharge distance	0.84m
	Bucket indicator	Yes
	Maximum articulated height of bucket	3.4m
	Digging depth	84mm
	Backacter bucket capacity	0.3m³
	Backacter discharge height	3.67m
	Max digging depth	4.13m
	Bucket slewing angle	180°
	Bucket slewing angle	180°
	Min turning radius	5862mm
Engine	Model	R4105GWeichai R4105G
	Type	in line, direct injection, four-stroke, liquid cooled
	Cylinder-intermal diameter*stroke	4-105 125mm
	Rated power	55kw
	Rated revolving speed	2200r/min
	Min fuel consumption	239g/kw.h
	Max torque	600N.m
	Displacement	4.33L
Steering system	Type	Articulated hydraulic steering
Steering system	Model of turning control valve	YSF25S-00
Transmission system	Model of hydraulic pump	CBGj2040/2032/2032
	Type	Duplex gears pump
	Motor model	A6V80HA2FZ1027
	Type	Swash plate operated, axial piston
	Type of gearbox	Manually shifted
	Gear	2 gears ahead,2 gear astem
	Max speed	20km/h
Hydraulic system	Flow	140L/min
	Bucket digging capacity	46.5KN
	Bucket lift time	4.88s
	Bucket lower time	3.00s
	Bucket discharge time	1.10s
