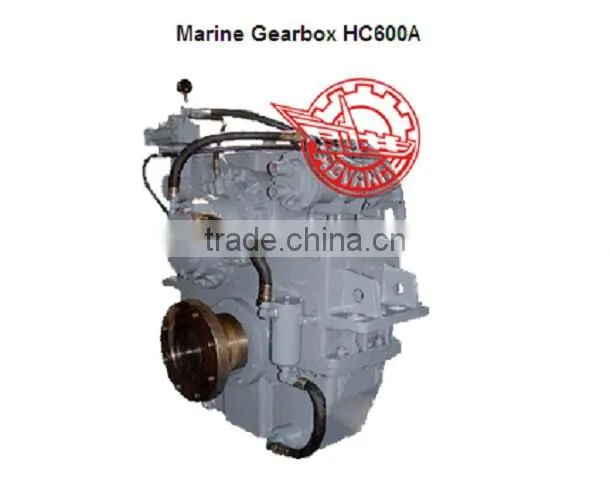

Chinese Advance Marine Gearbox planetary gearbox HC600A for Marine Engine used
Description:
Marine Gearbox HC600A possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume and light in weight.
Main Data:
Input speed |
1000-2100r/min |
||
Reduction ratio |
2.00,2.48,3.00 |
Trans. capacity |
0.48kw/r/min |
3.58 |
0.44kw/r/min |
||
3.89 |
0.40kw/r/min |
||
Control way |
Push-and-pull flexible shaft, electrically, pneumatically |
||
Rated thrust |
90KN |
||
Center distance |
320mm |
||
L×W×H |
745*1094*1126mm |
||
Net weight |
1300kg |
||
Flywheel |
SAE18,16,14 |
||
Bell housing |
SAE00,0 |
||
Application:
Marine Gearbox HC600A is suitable for passenger, fishing, and various engineering and transport boats.
