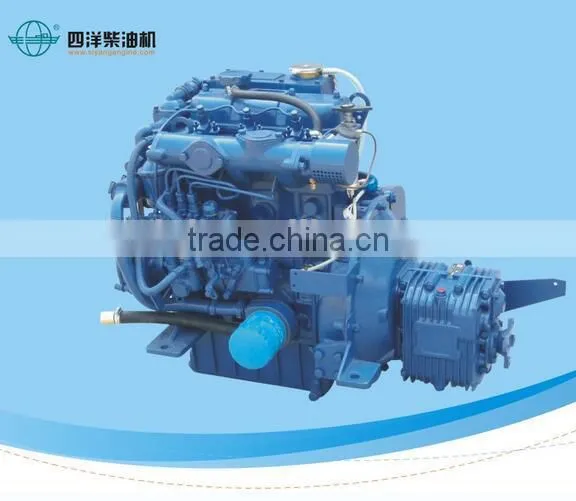

High speed marine diesel engine with gearbox for total enclosed lifeboat 26Hp
APPLICATIONS:
380J-3 series diesel engine sets are composed of 380C diesel engine and SCG025 and ZF12M gearbox. The engine sets have been found in accordance of lifeboat rules GB11868-89 (Diesel engine set for lifeboat) IMO (Testing of lift-Saving appliance) Resolution MSC81(70)and”SOLAS”(1997).The engine sets have passed the type approved of “CCS”,“NK”“BV”“DNV”“ABS”“RS”and“EC”and can be used as the main engine for lifeboat and auxiliary engine for all kinds of small boat.
Main Technical Data
Engine set Model |
380J-3 |
||
Diesel Engine |
Model |
380C-3 |
|
Type |
In line,water cooling,Four stroke |
||
Combustion chamber type |
Direct injection |
||
Cylinder number |
3 |
||
Bore×Stroke (mm) |
80×90 |
||
Total displacement (l) |
1.357 |
||
Fire order |
1→3→2 |
||
Compression ratio |
18:1 |
||
Rated power/Speed (kW/r/min) |
20.6/2800 |
||
Rated fuel consumption(g/kW·h) |
≤255 |
||
Rated lube consumption(g/ kW·h) |
≤2.72 |
||
Lubrication method |
Combination of force,Splash |
||
Cooling method |
Force cooling through keel cooler |
||
Rotation direction |
Anticlockwise(view from flywheel ) |
||
Starting method |
Electric (option spring starter/Manual starting/Hydraulic motor starting) |
||
Exhaust temperature at rating(℃) |
≤550 |
||
Air consumption in 10minutes (m3) |
16.148 |
||
Gearbox |
Model |
ZF12M |
SCG025 |
Ratio |
2.63(Forward)/1.95(Reverse) |
2.74(Forward)/2.67(Reverse) |
|
Engine set |
Rated output/Speed (kW/r/min) |
19.7/1065 |
19.7/1020 |
output shaft rotation |
Clockwise(view from output end) |
||
Operation method |
Mechanical or soft cable remote |
||

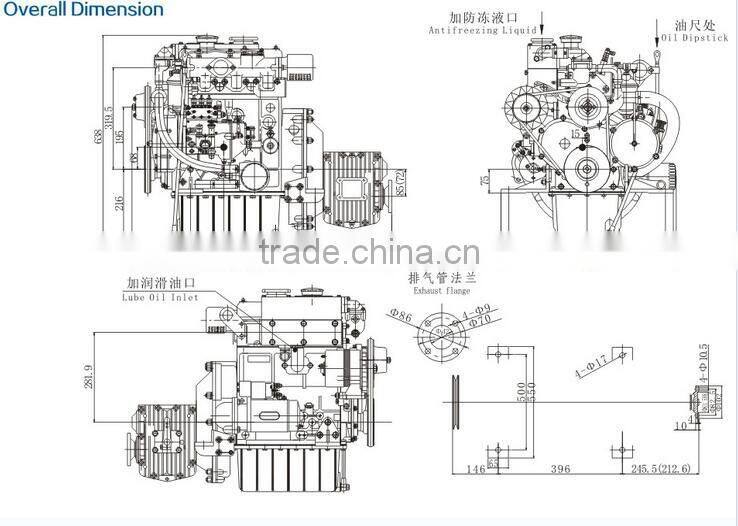

Overall dimension |
795.6×560×638 |
828×560×638 |
|
Weight (kg) |
195 |
200 |
|
