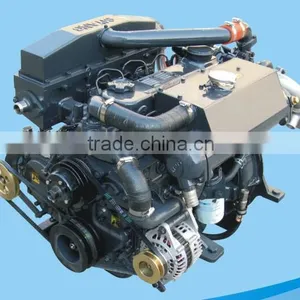

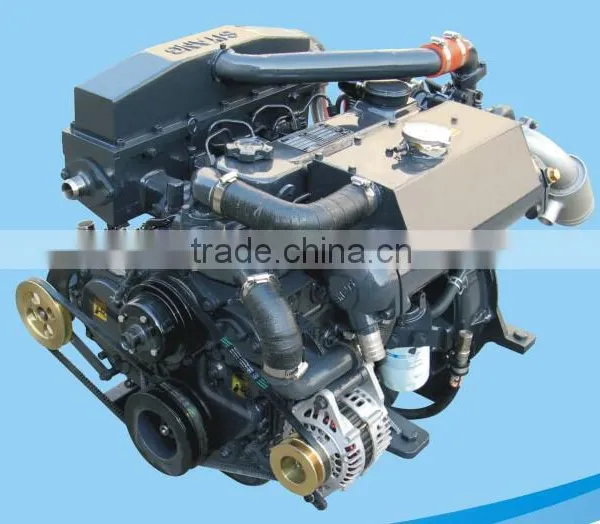

High speed marine diesel engine SY110C/SY144C 100-130hp
Have “CCS”,“EC”type approval certificates.
Match with ZF30M,ZF45-1, MA125A reduction gearbox and high flexible coupling
Adapting advance turbo and inter-cooling technology, low fuel consumption and emission
Low vibration and noise, excellent comfortable
Use as the main propulsion engine for all kind of lifeboat, rescue boat. Match also SYP23
water jet propulsion device for kinds of small ship or yacht.
Main technical data
Model |
SY110C |
SY144C |
|
Type |
In line,water cooling, four stroke, turbo charger |
In line,water cooling, four stroke, turbo cooling |
|
Combustion chamber type |
Direct injection |
||
Cylinder No. |
4 |
||
Bore×Stroke (mm) |
99.2×102 |
||
Total displacements (L) |
3.153 |
||
Fire order |
1→3→4→2 |
||
Compression ratio |
22:1 |
||
Rated power/Speed (kW/r/min) |
73.6/3600 |
96/3600 |
|
Max. power/Speed (kW/r/min) |
80.9/3715 |
105.6/3715 |
|
Rated fuel consumption (g/ kW·h) |
≤260 |
||
Lubrication method |
Combination of force,Splash |
||
Cooling method |
Force water cooling,closed circulation by sea fresh heat-exchanger |
||
Rotation direction |
Anticlockwise (View from flywheel end) |
||
Starting method |
Electric(option another starting device) |
||
Max. idle speed (r/min) |
3860 |
||
Idle speed (r/min) |
≤850 |
||

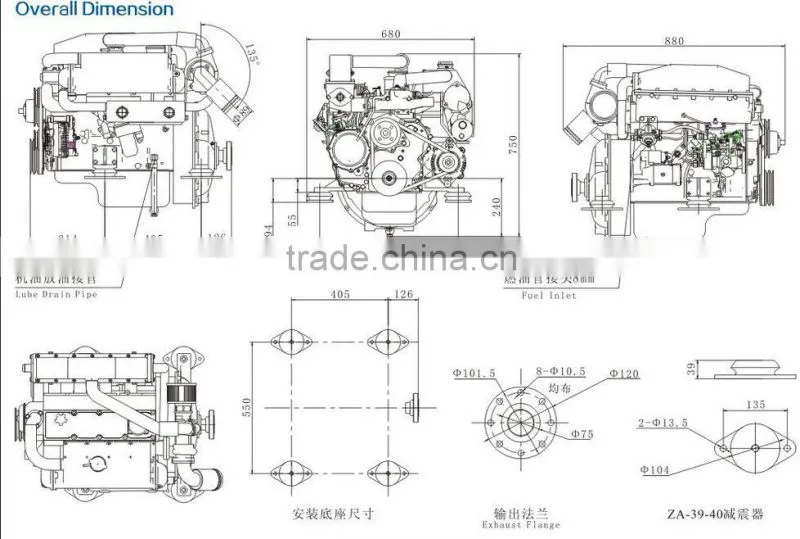

Overall dimension(L×W×H)(mm) |
880×680×715 |
880×680×750 |
|
Net weight(Kg) |
285 |
296 |
|
