China Small Inboard Diesel Engine 3m78

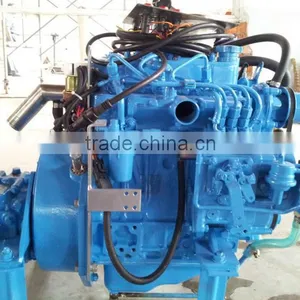

China Small Inboard Diesel Engine 3m78 thumbnail-1
China Small Inboard Diesel Engine 3m78 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Usage:
Boat
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Xiamen Sitaiqi Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port or Other Port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Boat
Fuel Diesel
Stroke 4 Stroke
Cylinder Other, 3 Cylinder
Cold Style Other, Forced double cold
Start Electric Start
Place of Origin Jiangsu, China
Brand Name China Changchai
Model Number Top Sale! China small inboard diesel engine 2m78/3m78
Certification CCS/ZY/ZC

             Top Sale! China small inboard diesel engine 2m78/3m78









Engine features:

1, compact structure, light weight and energy&material saving



2, adopt the CAE analysis,reliable



3, low emission design technique, with the less pollution and emission



4, apply the tunnel structure to enforce the strength of cylinder block, low vibration and noise.





Specification:

Model

3M78

Type

Vertical,water cooled,4-stroke

Air intake way

Naturally aspirated

Combustion model

Swirl

Cylinder No.-Bore×Stroke(mm)

3-78×78.4

Cylinder sleeve type

Dry-type

Displacement(L)

1.123

Compression ratio

22:1

Ignition sequence

1-2-3

Rated power/speed(kW/r/min)

8~15.5 / 2200~3600

Max.Torque/speed(N·m/r/min)

≤64 / 1800~2200

Minimum specific fuel consumption (g/kW·h)

≤275

Smoke intensity(FSN)

≤4.5

Noise(dB(A))

≤107

Emission

EurroⅡ

Type of cooling

Forced water cooling

Lubrication way

Pressure, splash

Oil consumption(g/kW·h)

2.72

Starting method

Electric starting

Direction of rotation (face to the flywheel)

Counterclockwise

Overall dimension(L×W×H)(mm)

520×457×581

Net weight(kg)

110

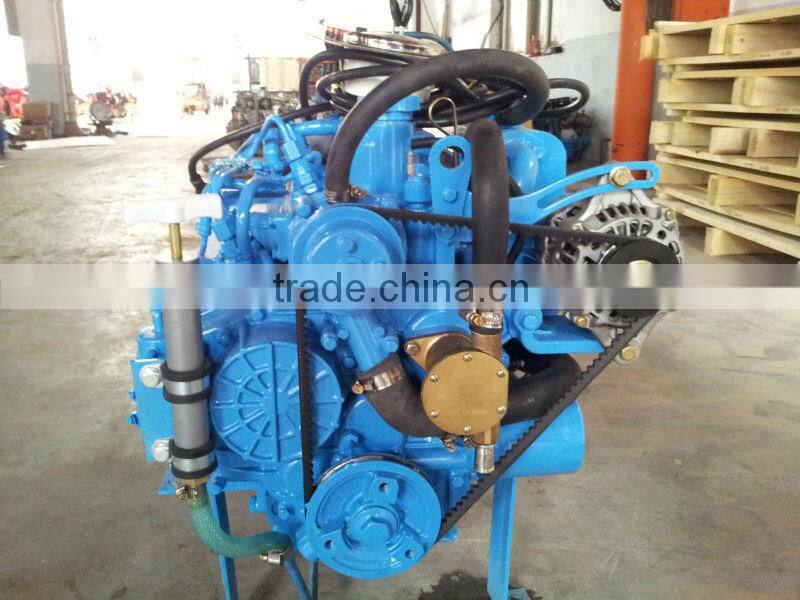

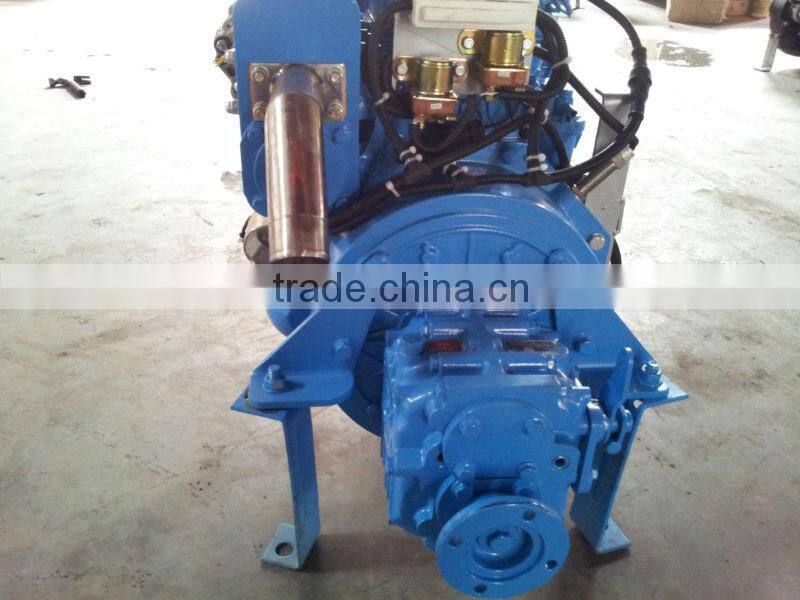

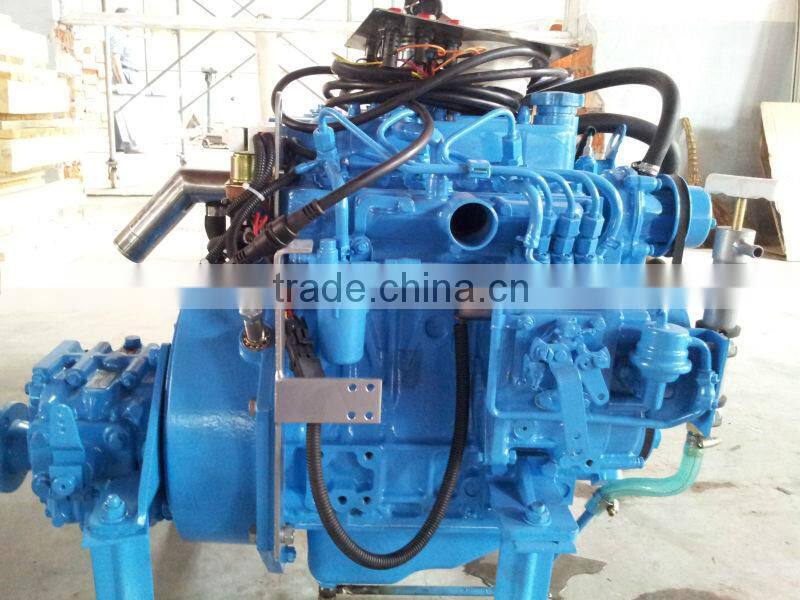

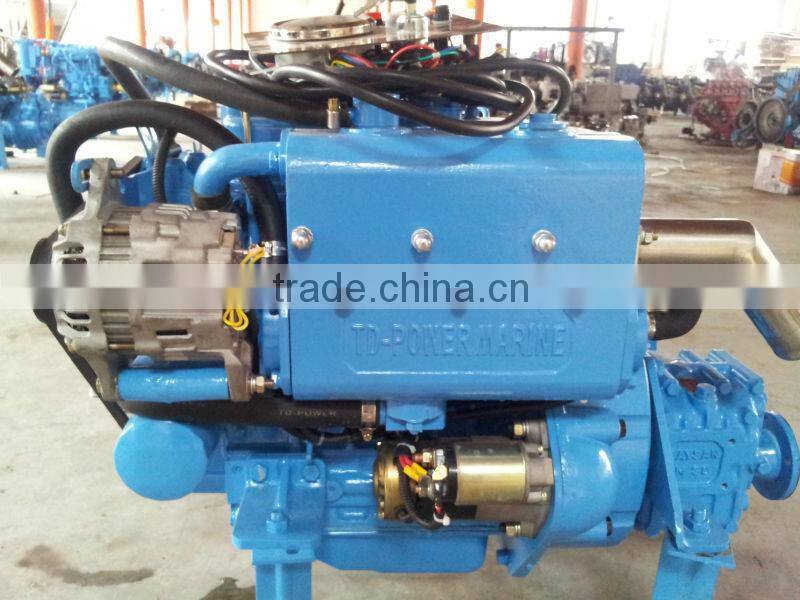

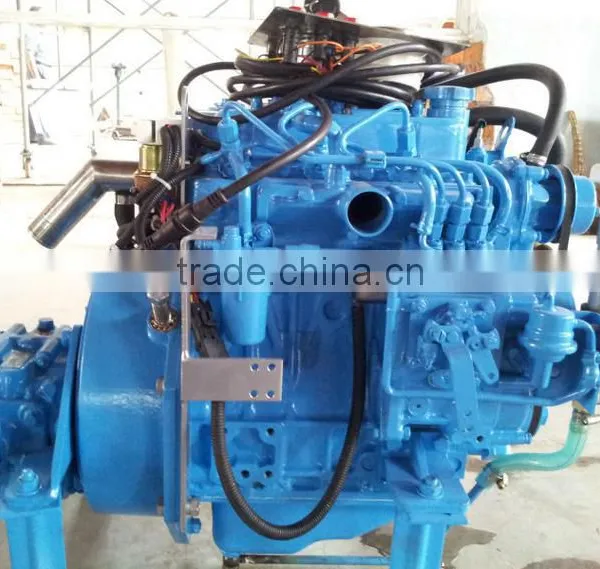

Engine detailed pictures:

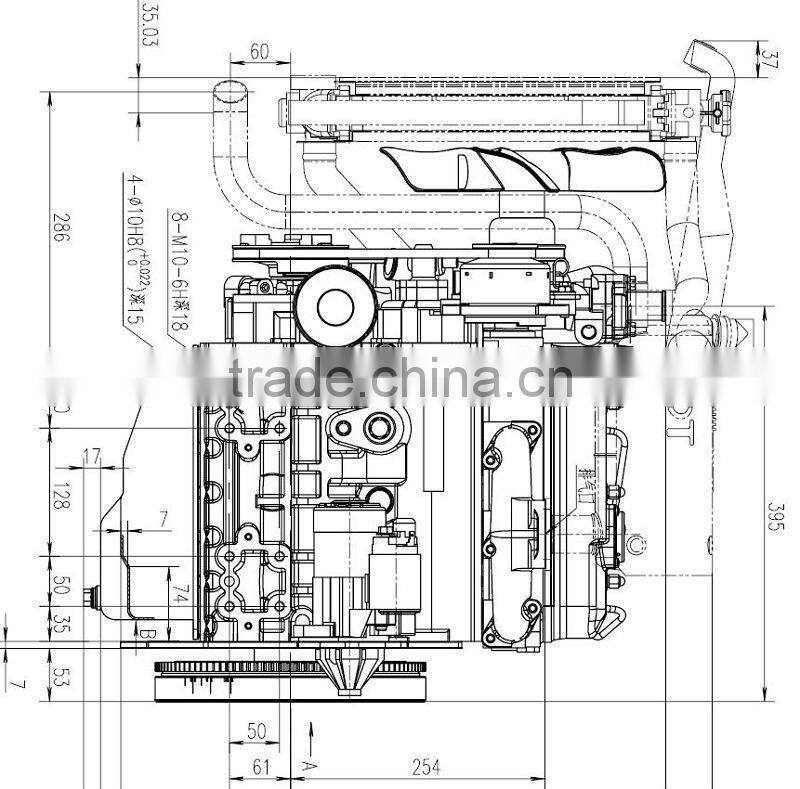

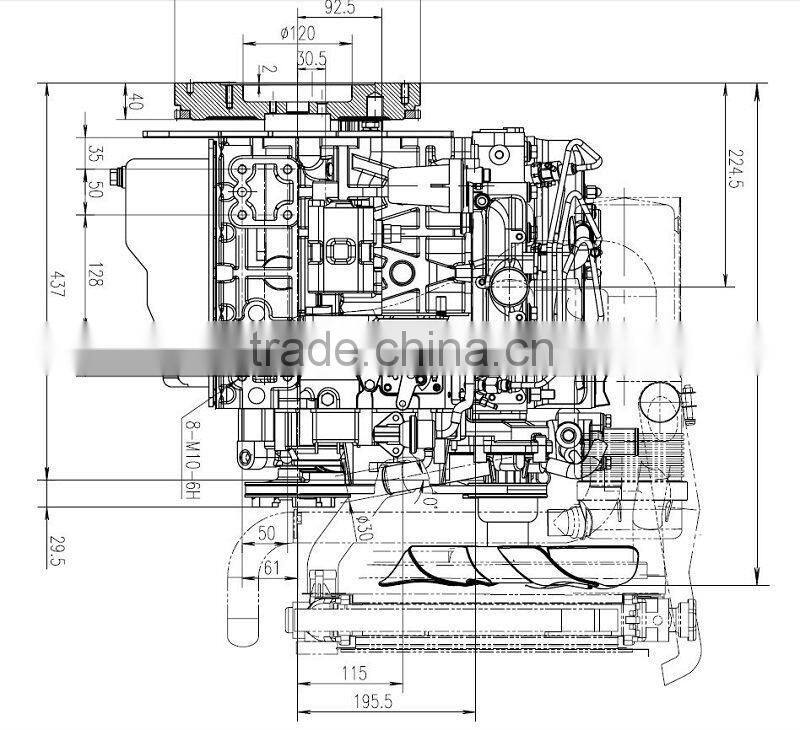

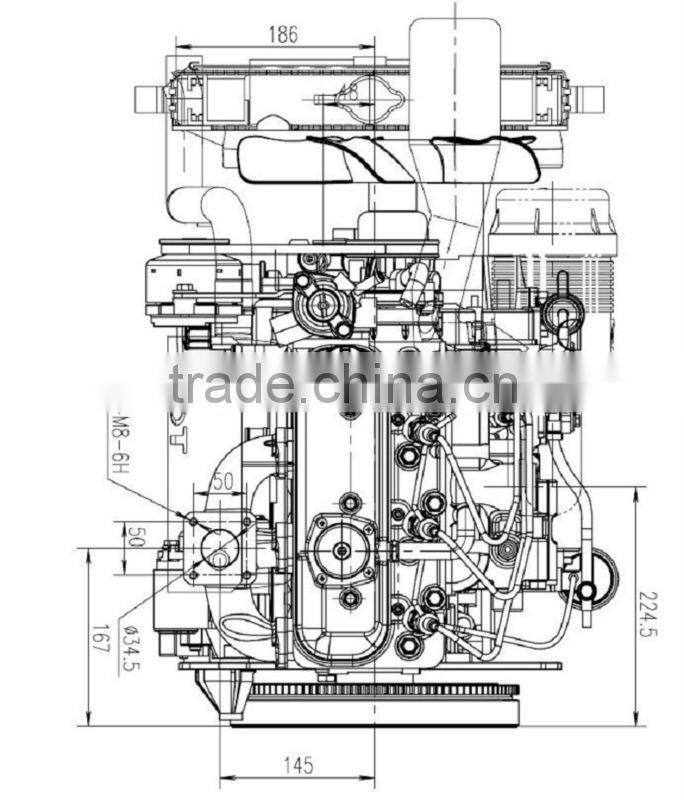

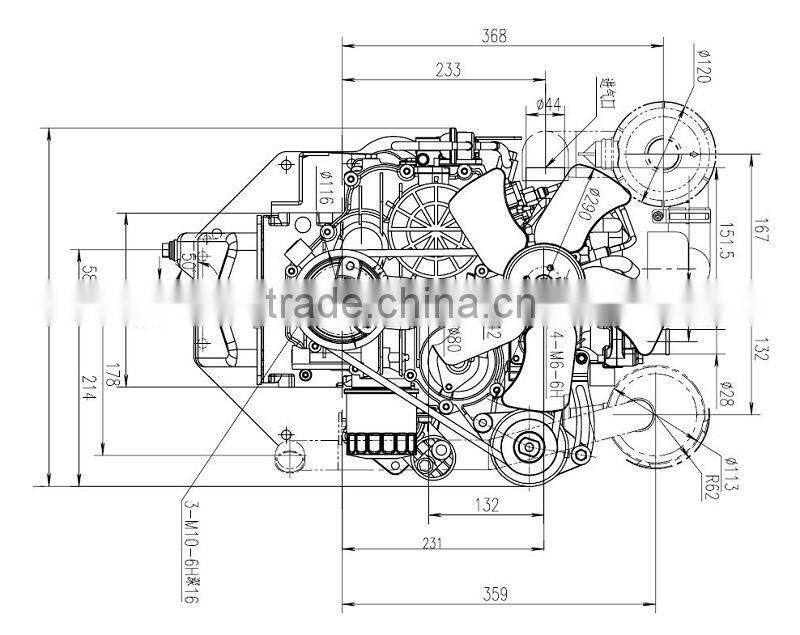

Outline drawing:

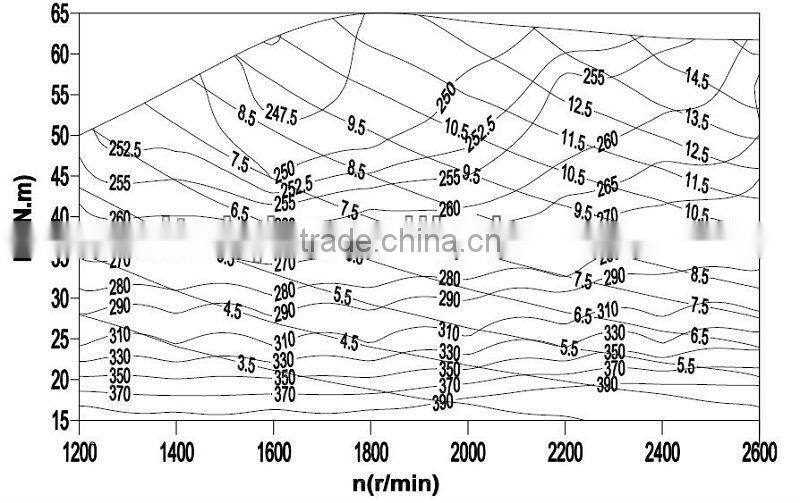

Performance Curve:

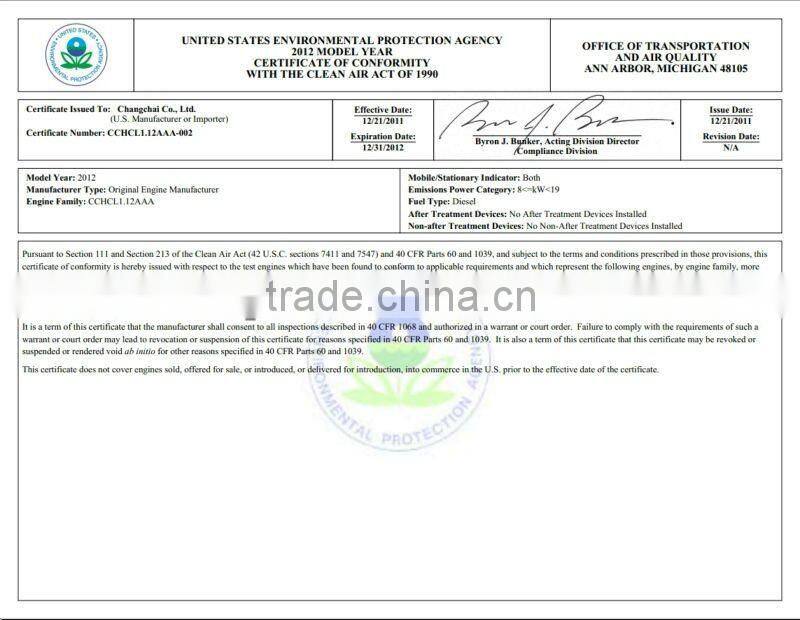

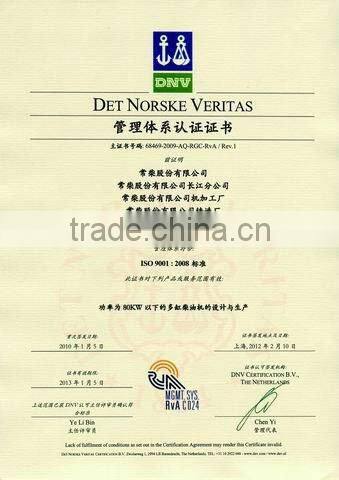

Certification:
