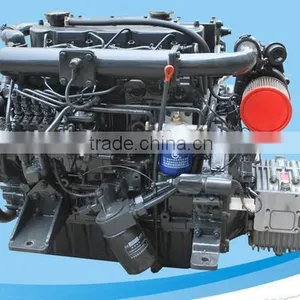

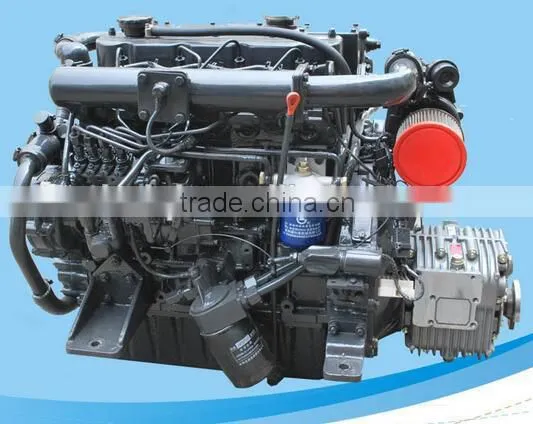

High speed marine diesel engine set with gearbox for total enclosed lifeboat 4L88CB 88Hp
APPLICATIONS:
Have “CCS”,“EC”type approval certificates.
Match with ZF30M reduction gearbox and high flexible coupling
Advance turbo charger with low fuel consumption and emission.
Exhaust manifold integrated with sea fresh water heat exchanger design, it has a compact size and low noise
Main Technical Data
Model |
4L88CB |
Type |
Four cylinders ,In-line, vertical, four stroke, water cooling, direct injecting, turbo charger |
Stroke× Bore (mm) |
95×100 |
Total piston displacement(L) |
2.834 |
Compression Ratio |
18:1 |
Rated Output/Rated speed (KW/r/min) |
65/3200 |
Max.Output/Rated Speed (Kw/r/min) |
71.5/3303 |
Starting method |
Electric(option another starting device) |
Direction of rotation(From Output) |
Clockwise |
Gear box model |
ZF30M |
Reduction ratio |
Ahead 2.696 Astern 2.636
|
|
Engine overall dimension (L×W×H) (mm) |
1034×600×673(ZF30M) |
Net weight (Kg) |
≤325 |
