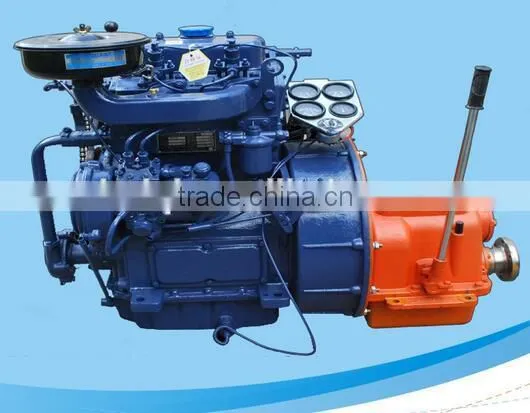

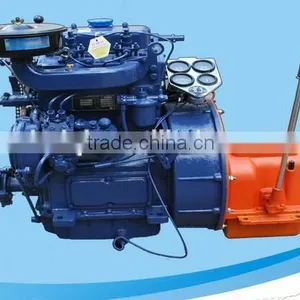

High speed marine diesel engine set for open type lifeboat ZX2105J-1 20-28Hp
APPLICATIONS:
ZX2105J-1 marine diesel engine set is composed of ZX2105C-1 diesel engine and16A-3 reduction gearbox.The engine set has been found in accordance of "rules and regulations for the construction and classification of sea-going steel ships" CCS,IMO "Testing of lift-saving appliance" resolutions,MSC.81(70)and 1974 SOLAS and amendments.
The engine set has gotten the approval of CCS classification society and used mainly as the propulsion engine for lifeboat and other small boat.
Main Technical Data
Model |
ZX2105J-1 |
|||
Type |
In line,water cooling,four stroke,nature inspiration |
|||
Combustion type |
Direct injecting |
|||
Cylinder no. |
2 |
|||
Bore×Stroke (mm) |
105×120 |
|||
Total displacement (L) |
2.078 |
|||
Fire order |
1→2 |
|||
Compression ratio |
16.5:1 |
|||
Rated power/Speed (kW/rpm) |
17.6/1500 |
20.6/2000 |
||
Fuel consumption (g/ kW·h) |
≤255 |
|||
Lubrication method |
Force and splash combination |
|||
Cooling circulation |
Open type with force cooling |
|||
Direction of rotation |
Anticlockwise (view from flywheel) |
|||
Starting method |
Electrical motor and manual starting |
|||
Gearbox |
Model |
16A-3 |
||
Ratio |
2.0:1 |
|||
|
Engine set output/Speed (kW/ rpm) |
16.9/750 |
19.8/800 |
||
Direction of output shaft |
Clockwise (View from output end) |
|||
Manipulation |
Manual |
|||
Overall dimension(L×W×H)(mm) |
1050×550×850 |
|||
Weight (kg) |
360 |
|||
