25kva Single phase small diesel generator silent type
USD $600 - $2,800
/ Unit
1 Unit(Min.Order)
- 100 Unit / Units per Month
- Shaihai or ther port in China
- T/T
You May Like
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | KAMA | Model Number: | KDE 25T |
| Speed: | 3000/3600rpm | Frequency: | 50HZ/60HZ | Rated Power: | 25KW |
| Rated Voltage: | 230V | Rated Current: | 87.0A |
Product Description

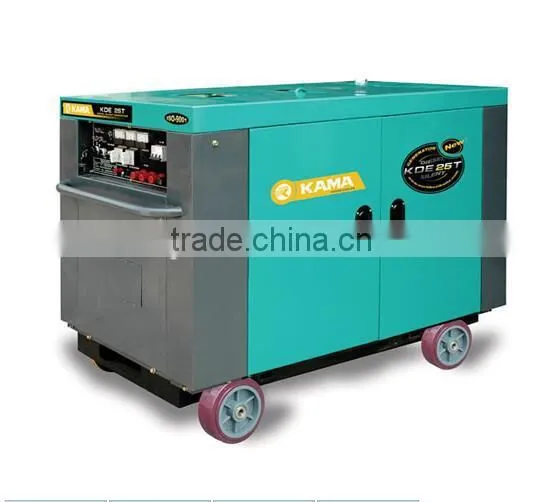

KAMA 25kva Single phase small diesel generator silent type
Main Data
| Rated frequency(Hz) | 50 60 | |
| Rated voltage(V) | 230 230 | |
| Rated current(A) | 87.0 87.0 | |
| Rated output power(KW) | 20 20 | |
| Max output power(KW) | 22 22 | |
| Rated otation speed(rpm) | 3000 3600 | |
| Power factor(cos) | 1 | |
| Phase number | Single phase | |
| Excitation mode | Self-excitation and constant voltage(AVR) | |
| Overall dimension(LxWxH)[mm(in)] | E:1450x890x1020(57.06x35.04x40.16),T:1800x785x1080(70.87x30.91x42.52) | |
| Dry weigt[kg(ibs.) | E:430(946) T:495(1089) | |
| Structure type | E:Open-frame type T:Silent type | |
| Engine model | KM480G KM485G | |
| Rated power[kW(Hz)/rpm] | 29(39.44)/3000,29(39.44)/3600 | |
| Engine type | Four cylinder,in-line,water-cooled,4-stroke,direct injection,diesel engine | |
| Bore*stroke[mm(in)] | 80x90(3.15x3.54),85x95(3.35x3.74) | |
| Compression ratio | 18:1 | |
| Total displacement[L(cu.in)] | 1.809(110.39),2.156(131.57) | |
| Fuel consumption at full load[g(ml)/kW.h] | <247(294) | |
| Starting system | 12V electric starter | |
| Fuel | 0#(summen)-10#(winter)light diesel oil | |
| Cooling system | Forced water-cooled circulation | |
| Lube Capacity[L(gal.)] | 38(8.36) | |
| Lube | LECD grade 15W40 |
MODEL KDE 25T
