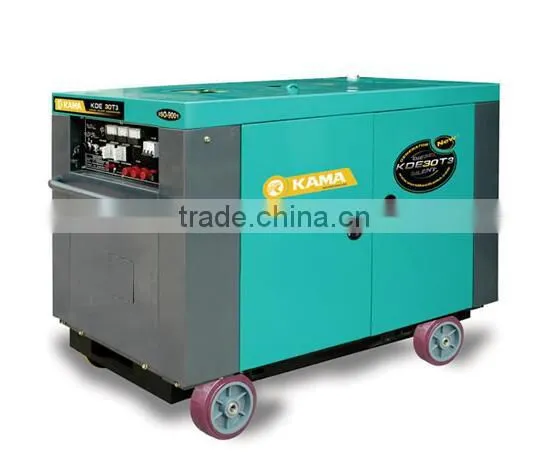

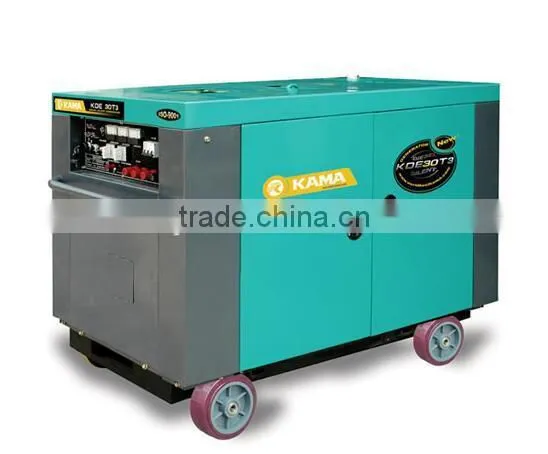

KAMA 31.25kva Three Phase Small Diesel Generator Silent Type
US$ 800 - 3,000
MOQ: 1 Acre
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KAMA
Model Number:
KDE 30T3
Payment & Shipping
Payment Methods:
Port of Shipment:
Shaihai or ther port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KAMA 31.25kva Three Phase Small Diesel Generator Open-frame TypeUS$ 700 - 3,000MOQ: 1 Acre -
KAMA 25kva Three Phase Diesel Generator Soundproof TypeUS$ 800 - 3,000MOQ: 1 Acre
-
KAMA 25kva Single Phase Small Diesel Generator Silent TypeUS$ 600 - 2,800MOQ: 1 Unit
-
KAMA 25kva THREE Phase Small Diesel Generator Open-frame TypeUS$ 700 - 3,000MOQ: 1 Acre
-
KAMA 25kva Single Phase Small Diesel Generator Open-frame TypeUS$ 700 - 2,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
KAMA
Model Number
KDE 30T3
Speed
3000/3600rpm
Frequency
50HZ/60HZ
Rated Power
25KW
Rated Voltage
400/230V
Rated Current
36.2A
KAMA 31.25kva Three phase small diesel generator silent type
Main Data
| Rated frequency(Hz) | 50 60 | |
| Rated voltage(V) | 400/230 400/230 | |
| Rated current(A) | 36.2 36.2 | |
| Rated output power(KW) | 25 25 | |
| Max output power(KW) | 28 28 | |
| Rated otation speed(rpm) | 3000 3600 | |
| Power factor(cos) | 0.8(applied to KVA) | |
| Phase number | Three phase | |
| Excitation mode | Self-excitation and constant voltage(AVR) | |
| Overall dimension(LxWxH)[mm(in)] | E3:1500x930x970(59.06x36.61x38.19),T3:1960x860x1180(77.17x33.86x46.46) | |
| Dry weigt[kg(ibs.) | E3:480(1056),T3:550(1210) | |
| Structure type | E3:Open-frame type T3:Silent type | |
| Engine model | KM490G | |
| Rated power[kW(Hz)/rpm] | 38(51.68)/3000,38(51.68)/3600 | |
| Engine type | Four cylinder,in-line,water-cooled,4-stroke,direct injection,diesel engine | |
| Bore*stroke[mm(in)] | 90x100(3.54x3.94) | |
| Compression ratio | 18:1 | |
| Total displacement[L(cu.in)] | 2.54(155.00) | |
| Fuel consumption at full load[g(ml)/kW.h] | <265.2(315.7) | |
| Starting system | 12V electric starter | |
| Fuel | 0#(summen)-10#(winter)light diesel oil | |
| Cooling system | Forced water-cooled | |
| Lube Capacity[L(gal.)] | 65(14.3) | |
| Lube | LECD grade 15W40 |
MODEL KDE 30T3
