Good price of small injection moulding machines
- 30 Set / Sets per Month
- Ningbo
- T/T
- Food Box Thermoforming Machine Disposable Plastic Cup Making Machine
- Plastic Cup Thermoforming Making Machine Disposable Plastic Cups Plate Machine
- Plastic Cup Machine Plastic Thermoforming Manufacturing Machine Full Automatic Plastic Cup Thermoforming Machine
- Plastic Cup Thermoforming Machine Full automatic Plastic Cup Making Machine
- High Efficiency PP Plastic Cup Making Machine PET Food Box Thermoforming Machine
- High Speed Manufacture Plastic Coffee Cup Cover Thermoforming Machine
Product Details
Condition: | New | Product Type: | Other, PLASTIC MACHINE | Place of Origin: | Zhejiang, China |
Brand Name: | SS | Model Number: | SSF700-K5 | Voltage: | 380V |
Power(W): | 50HZ | Dimension(L*W*H): | 3.6m*1.2m*1.65m | Weight: | 2.2 |
Certification: | CE | Warranty: | One year | After-sales Service Provided: | Overseas third-party support available |
Product Description
Items | Parameter | Unit | Parameter Value (SSF700-K5) | |
Injection Unit | Screw diameter | mm | A | B |
34 | 36 | |||
Screw L/D ratio | L/D | 18.8 | 17.7 | |
shot volumn (theoretical) | Cm3 | 113 | 127 | |
injection weight(PS) | g | 103 | 115 | |
plasticizing capacity | g/s | 11.6 | 13 | |
injection rate | g/s | 86 | 96 | |
injection pressure | Mpa | 171 | 153 | |
screw speed | rmp | 180 | ||
Clamping unit | clamp force | KN | 700 | |
open stroke | mm | 270 | ||
space between bars (W*H) | mm | 315*300 | ||
max mould height | mm | 320 | ||
min mould height | mm | 150 | ||
ejector stroke | mm | 80 | ||
ejector force | KN | 27 | ||
ejector number | PC | 1 | ||
mould align diameter | mm | 100 | ||
Others | max pump pressure | Mpa | 16 | |
pump motor power | KW | 7.5 | ||
heating power | KW | 5.1 | ||
machine dimension | m | 3.6*1.2*1.65 | ||
machine weight | T | 2.2 | ||
oil tank capacity | L | 130 |
Standard features;
1.Colorful Techmation controller with optional languages;
2.Chrome plated tie bars with double-cylinder balanced injection system;
3.Auto lubrication system;
4.Mould data memory system, can save 199 set molds data;
5.Multi-stage pressure &speed injection;
6.ack pressure adjustment device;
7.Low pressure mold protection;
8.Mechanical, electrical safety device;
9.Automatic mould adjustment function;
10.T-slot mold platen for machines above 100T;
11.Automatic purge function.
Available Options(To be charged)
1.By pass oil filter;
2.Oil temperature controller;
3.USB port data connecting;
4.Hopper dryer;
5.Mold clamps;
6.Vickers directional valves;
7.1PC core valve for SSF380,SSF500,SSF700,
8.2PCS core valves for SSF900,SSF1180,SSF1480,SSF1680;
9.2PCS air valve for all models;
10.3 Color alarm light;
11.Ceramic heater bands;
12.Water flow regulator;
13.Special screw designs for PA66,PVC,PC production;
14.Hydraulic safety mechanism;
15.SSR;
16.Other brand controller eg Keba, Mirle and etc;
17.Optional machine color.
Spare parts;
1.Manual for machine and controller;
2.1 Set various O-rings;
3.1PC nozzle;
4.1Barrel lubrication oil or grease;
5.Professional tools such as wrench, screw drivers;
6.1Set level pad(6pcs)
Clamping unit
Five-point inward moving toggle system ensure high rigidity and precision for mold clamping and also reducing stress and stain effects;
The moving platen is fitted with adjustable slide support system to improve platen parallelism and provide better tie bar and mould protection and lengthen the working lifetime.
Injection unit
A wide variety of screws are available for different polymer processing requirements. Special engineering materials are used to manufacture the screws to ensure optimal quality and processing life;
The injection unit incorporates a dual-pillar supporting system with balanced twin cylinder injection unit for evenly distributed force and rapid screw motion;
Nozzle alignment is provided using a simple mechanism with fine adjustment for accurate centering;
High quality nitride or chrome plated alloy screw with a nitrogen-treated barrel provided anti corrossion with high wear resistance for an extended working life.

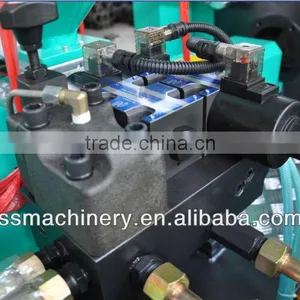

Electrical and hydraulic components;
Major hydraulic components and seals are sourced from world famous manufacturers providing high reliability and interchangeability.
Controller is from Techmation, with multiple language for selection, of including but not limited English, Spanish,Turkish,Persian,russia and etc.
Lubrication system;
The toggle system uses oil-sleeve bushes lubricated by an automatically control central lubrication unit which provides excellent lubrication quality to all points and extends the clamping unit working life.
There are 2 type of lubrication agent, one is lubrication grease, the other is lubrication oil, per customer's final products requirements, medical parts prefer to use lubrication oil to avoid any contamination.
Motors and pumps;
We have 2 series injection molding machine, one is fixed pump, the other is servo motor.
Fixed pump machine is a traditional machine enjoys the features of stable, servo motor enjoys the advantanges of energy saving.
Low noise, below 78db, servo motor almost has no noice when no movement of machine.
Agent wanted
In order to bring our machines to more customer worldwidely, we are sincerely to invite distributors to get exclusive agency agreement from us.
We have signed agency agreements with distributors in Argentina, Denmark,Poland,Russia,Turkey.
Welcome your join-in.
Our Services;
If you have any query about our injection molding machine, just contact me at any time
Alexis Liao
Mobile photo:+8613806673276(whats app&we chat ID)
QQ:1159033100
