Small injection molding machine manufacturer
We are a small plastic injection molding machine manufacturer of which clamp force ranges from 25T to 168T.

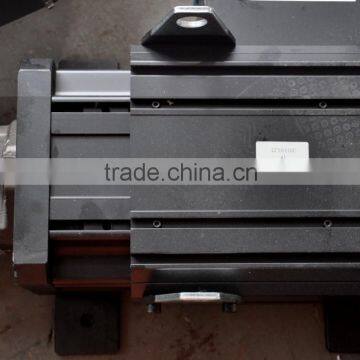

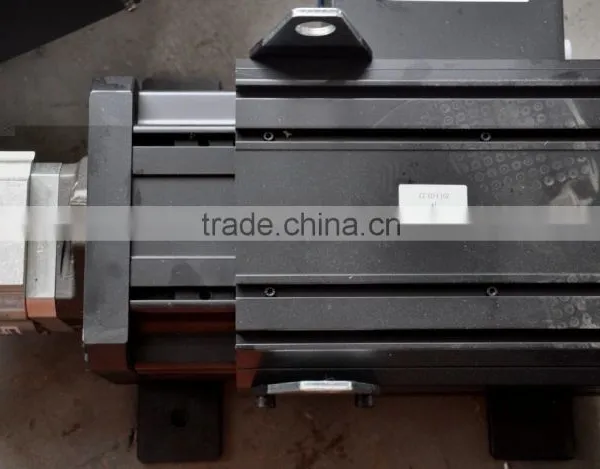

This machine is equipped with servo motor, of which energy can save 40~60% compared with standard machines.

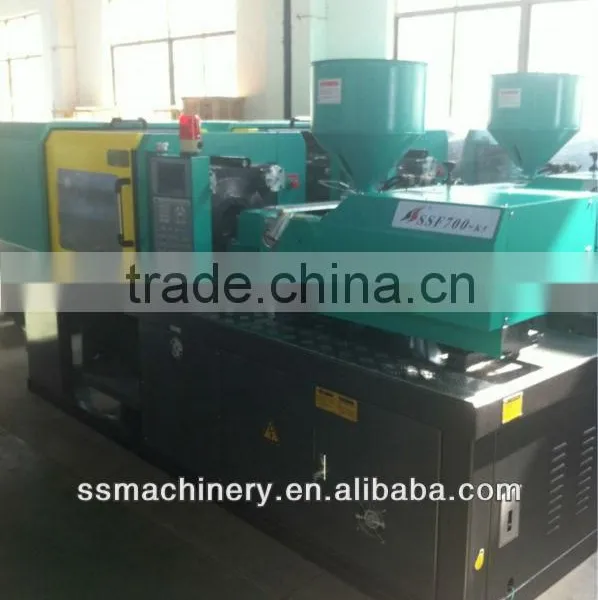

Pamameters of this 70T servo plastic injection machine as below;
| Items | Parameter | Unit | Parameter Value (SSF700-S) | |
| Injection Unit | Screw diameter | mm | A | B |
| 34 | 36 | |||
| Screw L/D ratio | L/D | 18.8 | 17.7 | |
| shot volumn (theoretical) | Cm3 | 113 | 127 | |
| injection weight(PS) | g | 103 | 115 | |
| plasticizing capacity | g/s | 11.6 | 13 | |
| injection rate | g/s | 86 | 96 | |
| injection pressure | Mpa | 171 | 153 | |
| screw speed | rmp | 180 | ||
| Clamping unit | clamp force | KN | 700 | |
| open stroke | mm | 270 | ||
| distance between tie bars (W*H) | mm | 315*300 | ||
| max mould thickness | mm | 320 | ||
| min mould thickness | mm | 150 | ||
| ejector stroke | mm | 80 | ||
| ejector force | KN | 27 | ||
| ejector number | PC | 1 | ||
| dia of mould location hole | mm | 100 | ||
| Others | max pump pressure | Mpa | 16 | |
| pump motor power | KW | 7.5 | ||
| heating power | KW | 5.1 | ||
| machine dimension | m | 3.6*1.2*1.65 | ||
| machine weight | T | 2.2 | ||
| oil tank capacity | L | 130 | ||
Standard features;
1.Double-cylinder balanced injection system;
2.Multi-stage pressure &speed injection;
3.Back pressure adjustment device;
4.Low pressure mold protection;
5.Single hydraulic core pulling and inserting;
6.Multiple hydraulic ejector knock-out;
7.Mechanical, electrical safety device;
8.Auto lubrication system;

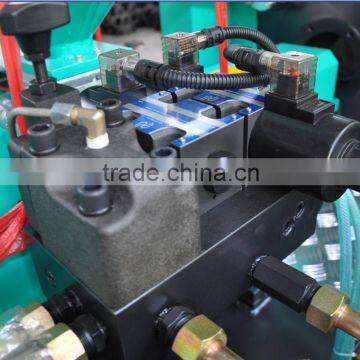

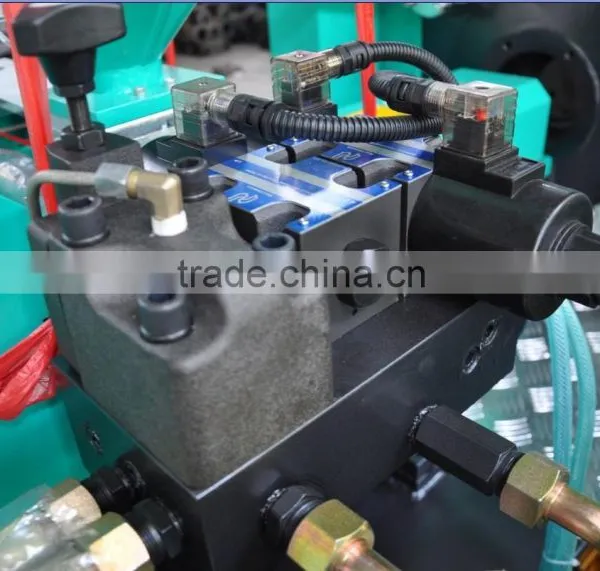

9.Hydraulic pressure full proportional control;
10.Computer control system;
11.Molding data memory system;
12.Automatic mould adjust function.
13.Energy saving with variable pump;
14.Bi-metallic screw to anti-corrosion, which is applicable to nylon or glass material.

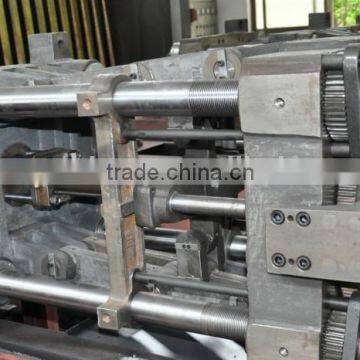

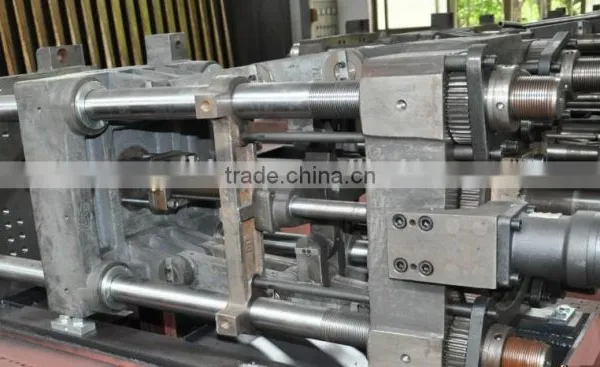

15.Five-point inward moving toggle system ensure high rigidty and precision for mold clamping and also reducing stress and stain effects;
16.Oil pipelines are positioned for aesthetic appearance and easy for maintenance;
17.The moving platen is fitted with adjustable slide support system to improve platen parallelism and provide better tie bar and mould protection and lengthen the working lifetime;
18.Nozzle alignment is provided using a simple mechanism with fine adjustment for accurate centering.
Optional auxiliary
Robot system
Hopper dryer
Auto loader
Hopper Magnet
Mold clamps
Water cooler
Plastic dehumidizer
Mold temperature controller
Oil temperature controller
Oil bypass filter
Warranty;
Machines that used within 12 months(Based on the date machine leaves our company) will be warranted as below;
1.Warranty of mechanical components(except screw and barrel) is 12 months;
2.Warranty of electrical appliances and hydraulic units(except heating ring) is 6 months;
3.Warranty of screw, barrel and heating ring is 3 months;
4. Above warranty is not applicable for the errors that due imporper operation.
Spare parts;
1.Nozzle
2.Lubricate oil
3.Seal rings(5pcs)
4. Tool box
5. Other tools such as spanner, straight screwdrivers;
6. Crash pad
Organization Chart
If you have any query about our injection molding machine, just contact me at any time
Alexis Liao
Mobile photo:+8613806673276(whats app&we chat ID)
QQ:1159033100
