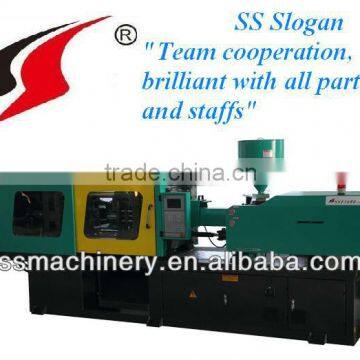

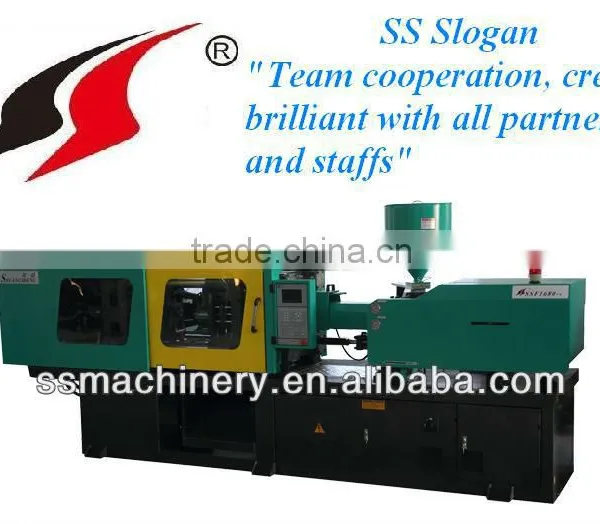

Manufacturer of servo motor plastic moulding machine
We are leading small injection moulding machine manufacturer in Ningbo,China, the largest plastic industry city. Our machines are included but not limited small color match chips injection molding machines, plastic small gears making injection machines, variable pump injection machines, servo motor injection moulding machines, of which are widely used at home appliance equipments, automobile industry, daily life industry, masterbatch and pigment industry, medical industry and ect.
Main parameters of 168T plastic injection molding machine as below;
| Items | Parameter | Unit | Parameter Value (SSF1680-S) | ||
| Injection Unit | Screw diameter | mm | A | B | C |
| 42 | 45 | 50 | |||
| Screw L/D ratio | L/D | 23.6 | 22 | 19.8 | |
| shot volumn (theoretical) | Cm3 | 311 | 357 | 441 | |
| injection weight(PS) | g | 283 | 325 | 402 | |
| injection rate | g/s | 138 | 160 | 196 | |
| injection pressure | Mpa | 203 | 177 | 143 | |
| screw speed | rmp | 180 | |||
| Clamping unit | clamp force | KN | 1680 | ||
| open stroke | mm | 435 | |||
| distance between tie bars (W*H) | mm | 460*460 | |||
| max mould thickness | mm | 520 | |||
| min mould thickness | mm | 180 | |||
| ejector stroke | mm | 135 | |||
| ejector force | KN | 50 | |||
| ejector number | PC | 5 | |||
| dia of mould location hole | mm | 125 | |||
| Others | max pump pressure | Mpa | 16 | ||
| pump motor power | KW | 18.5 | |||
| heating power | KW | 12.3 | |||
| machine dimension | m | 5.13*1.45*2.12 | |||
| machine weight | T | 6 | |||
| oil tank capacity | L | 300 | |||
Features of the injection molding machines;
1.Double-cylinder balanced injection system;
2.Multi-stage pressure &speed injection;
3.Back pressure adjustment device;
4.Low pressure mold protection;
5.Single hydraulic core pulling and inserting;
6.Multiple hydraulic ejector knock-out;
7.Mechanical, electrical safety device;
8.Auto lubrication system;
9.Hydraulic pressure full proportional control;
10.Computer control system;
11.Molding data memory system;
12.Automatic mould adjust function.
13.T-slot mold plate;
14.Energy saving with variable pump;
15.Bi-metallic screw to anti-corrosion, which is applicable to nylon or glass material.
16.Five-point inward moving toggle system ensure high rigidty and precision for mold clamping and also reducing stress and stain effects;
17.Oil pipelines are positioned for aesthetic appearance and easy for maintenance;
18.The moving platen is fitted with adjustable slide support system to improve platen parallelism and provide better tie bar and mould protection and lengthen the working lifetime;
19.Nozzle alignment is provided using a simple mechanism with fine adjustment for accurate centering.
Spare parts;
1.Nozzle
2.Lubricate oil
3.Seal rings(5pcs)
4. Tool box
5. Other tools such as spanner, straight screwdrivers;
6. Crash pad
We make injection molding machines strictly follow ISO9001:2008 quality requirements, per customers's special requirements, CE also can be optional.

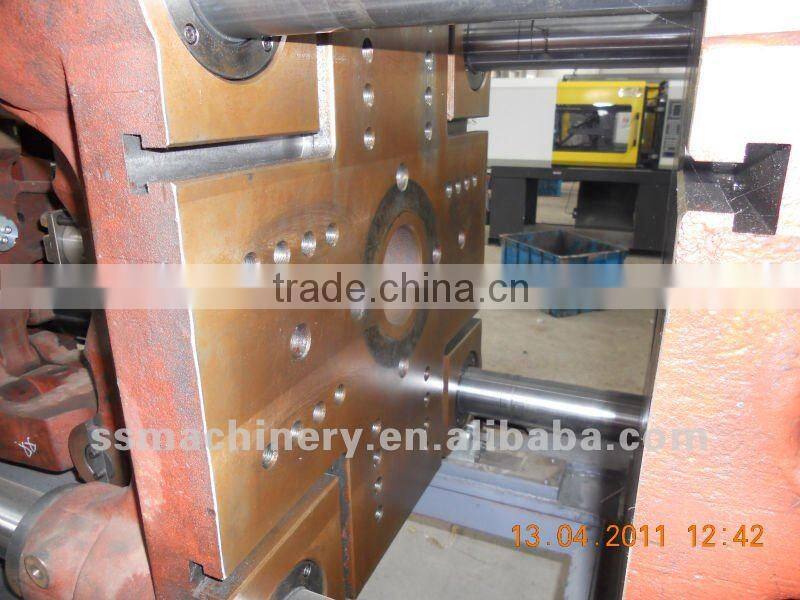

T-slot mold platen;
We shuangsheng plastic machinery respects staffs and values partnership of each customer, each cooperators, that why we can grow smoothly and steadily even the international ecomonic situation is not so optimistic.

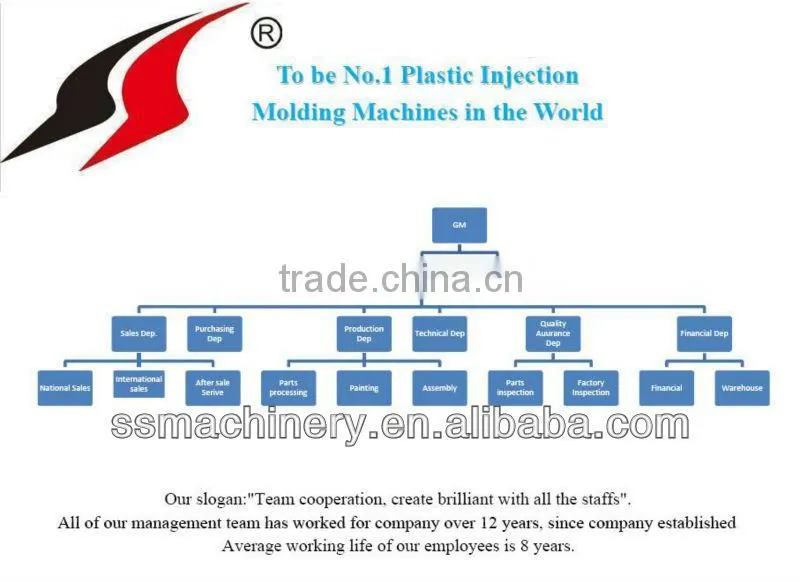

The orgnization chart of our company, average working life of the staffs is 8 years.
Organization Chart
If you have any query about our injection molding machine, just contact me at any time Alexis Liao Mobile photo:+8613806673276(whats app&we chat ID)
QQ:1159033100
