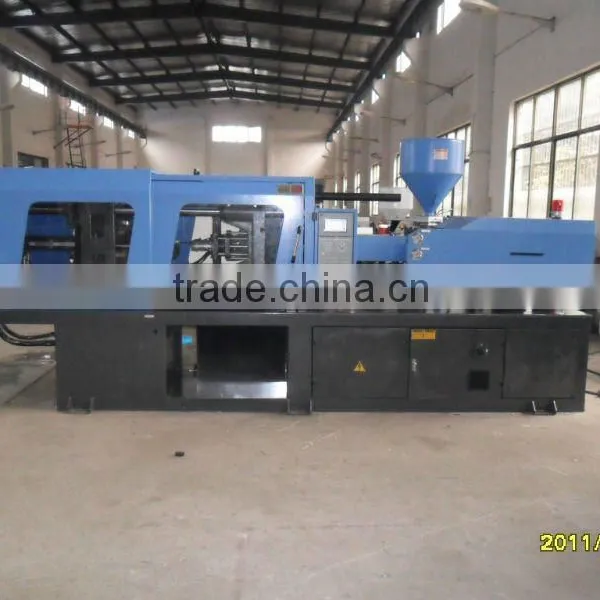

Help CenterT-slot Plastic Injection Molding Machine
Related Products
-
PVC Pipe Fitting Plastic Injection Moulding MachineUS$ 1 - 50,000MOQ: 1 Set -
Manufacturer of Servo Motor Plastic Moulding MachineUS$ 1 - 50,000MOQ: 1 Set
-
J-box Making Plastic Molding MachineUS$ 1 - 50,000MOQ: 1 Set
-
PVC Fitting Injection Molding MachineUS$ 1 - 50,000MOQ: 1 Set
-
168T Servo Motor Injection Plastic Moulding MachineUS$ 1 - 50,000MOQ: 1 Set
| Items | Parameter | Unit | Parameter Value (SSF1680-K5) | ||
| Injection Unit | Screw diameter | mm | A | B | C |
| 42 | 45 | 50 | |||
| Screw L/D ratio | L/D | 23.6 | 22 | 19.8 | |
| shot volumn (theoretical) | Cm3 | 311 | 357 | 441 | |
| injection weight(PS) | g | 283 | 325 | 402 | |
| injection rate | g/s | 138 | 160 | 196 | |
| injection pressure | Mpa | 203 | 177 | 143 | |
| screw speed | rmp | 18 | 180 | 180 | |
| Clamping unit | clamp force | KN | 1680 | ||
| open stroke | mm | 435 | |||
| space between bars (W*H) | mm | 460*460 | |||
| max mould height | mm | 520 | |||
| min mould height | mm | 180 | |||
| ejector stroke | mm | 135 | |||
| ejector force | KN | 50 | |||
| ejector number | PC | 5 | |||
| mould align diameter | mm | 125 | |||
| Others | max pump pressure | Mpa | 16 | ||
| pump motor power | KW | 18.5 | |||
| heating power | KW | 12.3 | |||
| machine dimension | m | 5.13*1.45*2.12 | |||
| machine weight | T | 6 | |||
| oil tank capacity | L | 300 | |||
Standard features;
Double-cylinder balanced injection system;
Multi-stage pressure &speed injection;
Back pressure adjustment device;
Low pressure mold protection;
Single hydraulic core pulling and inserting;
Multiple hydraulic ejector knock-out;
Mechanical, electrical safety device;
Auto lubrication system;
Hydraulic pressure full proportional control;
Computer control system;
Molding data memory system;
Automatic mould adjust function.
Optional auxiliary
Robot system
Hopper dryer
Auto loader
Hopper Magnet
Mold clamps
Water cooler
Plastic dehumidizer
Mold temperature controller
Oil temperature controller
Oil bypass filter
Spare parts;
1.Nozzle
2.Lubricate oil
3.Seal rings(5pcs)
4. Tool box
5. Other tools such as spanner, straight screwdrivers;
6. Crash pad
We make injection molding machines strictly follow ISO9001:2008 quality requirements, per customers's special requirements, CE also can be optional.
The orgnization chart of our company, average working life of the staffs is 8 years.
Organization Chart
If you have any query about our injection molding machine, just contact me at any time
