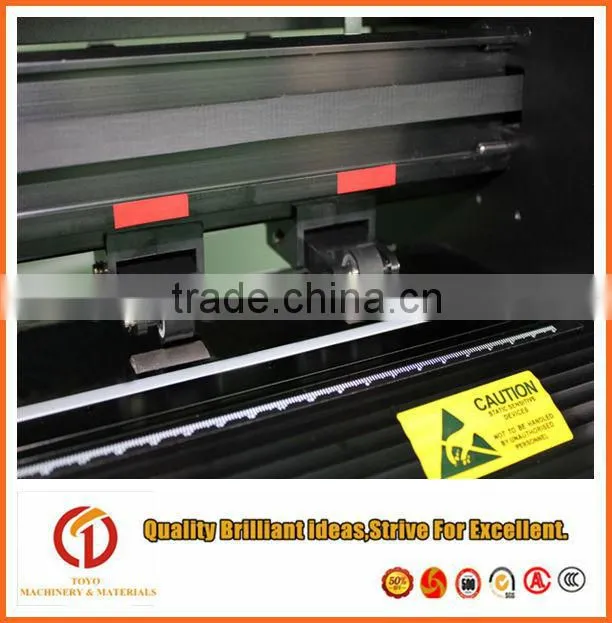

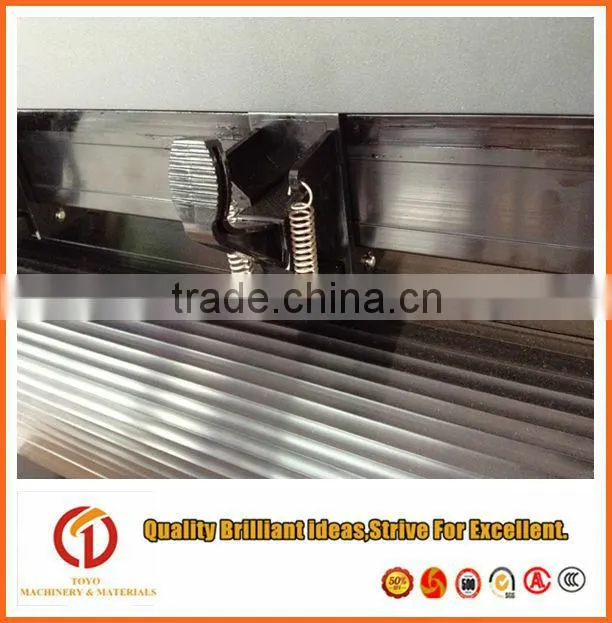

2015 Vinyl Cutter Plotter for Sale/ Contour Cut Cutting Plotter TH-1300L

2015 Vinyl Cutter Plotter for Sale/ Contour Cut Cutting Plotter TH-1300L photo-1
US$ 400 - 600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Die-cutting Machine
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou huangpu
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Die-cutting Machine
Computerized Yes
Place of Origin Guangdong, China
Brand Name TOYO
Model Number TH 1300
Voltage 220V
Dimension(L*W*H) 1480*265*265mm
Certification CE
Warranty 1
After-sales Service Provided Engineers available to service machinery overseas







Product Description

 Specification

Model

TH1300L

Media Way

Optional

Mainboard

32-bit ARM CPU,4MB,Hith-speed CACHE memory

Control panel

11 membrane buttons&2.4 inch touch screen

Driver

High speed,big power step motor,micro-step driver

Maximum paper feed width

1300mm

Maximum cutting with

1200mm

Maximum cutting speed

500mm/s

Curring force

0-500(digital adjustment)(optional 1000G)

Mechanical precision

0.025mm

Repeatable precision

<0.025mm

Type of plotter pen

All types diameter 11.4mm plotter pen

Plotter instruction

Compatible DM/PL,HP/GL

Interface

USB/U disk/Serial Port

Power supply

AC220V/110V,50Hz

Power consumption

<80W

Knife/blade

TENETH high quality blade

Operating environment

Temperature:5-35°C,Relative Humidity:30%-70%

Package size

1582*330*420mm

Gross weight

45KG



2015 vinyl cutter plotter for sale/ Contour cut cutting plotter TH-1300L2015 vinyl cutter plotter for sale/ Contour cut cutting plotter TH-1300L



Features:



1.High Speed: 32-bit ARM7 CPU,4MB CACHE memory;



2.Super Pressure: can cut super reflect film of our model no. with X ;



3.Prevent Stoppage: because of the high speed and high pressure function;



4.High Precision: even can cut 2mm little words of our Model No.:TH1300L;



5.Low noise,cut level and smooth: because of our High-precision Steel Axes and mainboard;



6.Can support all plot sofeware: Adobe Illustrator,CAD,CORELERAW;



7.More Interface: USB,U disk,serial Port,blue teeth or WiFi for optional in additional;



8.Can work without PC: when use USB Flash Driver;



9.Operate Convenient: 11 membrane buttons + 2.4 inch touch screen;



10.High Quality , High Stability: as use high speed ,big power step motor,micro step driver;



11.Contour cut: when used with sofeware FLEXI(Model no. with L has this function);



12.Scale adjustment function: only we have this function in China.



Remark: with plastic package outside when shipping , can keep product dry and clean.



2015 vinyl cutter plotter for sale/ Contour cut cutting plotter TH-1300L





Packaging & Shipping



The accessory included within the machines when you purchase:



-1 Power line

-3 Blades

-Screws

-1 Warranty card

-1 Serial cable

-1 USB cable

-1 Drawing Pen

-1 CD



Company Information

Our office is located in Guangzhou. We have our own factory and technician group. We have



passed CE certification and ISO9000 certification. With the main business of  Advertising trade,



.we entered the international market.  We have gained a high reputation in China as well as some



overseas areas, like turkey, India, Thailand, Indonesia, Brazil, Kenya, Zambia, Dubai, Australia,



Mexico and so on.













FAQ

 On-Time Delivery

After you confirm the order, we will figure out the delivery date according to the model and production schedule. For general models, we will arrange production in 7 days or so and we will notify you of the exact phase of production process.

Production Process:
Machine Case---Mechanical Parts Installation---Electrical Parts Installation---Machine Commissioning--- Aging Test for at Least 24 Hours --- Nameplate, Logo and Packaging---Shipping

After-Sales Service
We guarantee all of our laser machines have a one-year warranty (quick-wear parts not included).
Numerous feedbacks from our clients have proven that our laser machines are stable in performance with rare malfunction. However, we would like to handle it as follows once malfunction occurs:
1.We guarantee we will give you a clear reply within 24 hours.
2. Customer service staff will assist and guide you to analyze the malfunction in order to locate the cause.
3. If the malfunction is caused by improper operation on software and other soft faults, we will help solve the problem on line.
4. If it is proved that a certain part is damaged, we will deliver a replacement part to you as soon as possible, so you can replace it by yourself, reducing unnecessary time cost.
