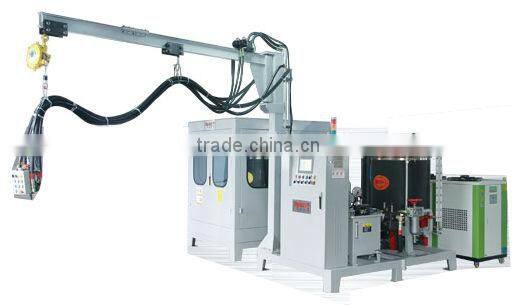

H100-JAD High-pressure foam machines
Refrigerator/freezer foaming machine
1.Overview
H100-JAD High-pressure foam machines is based on the digestion and absorption of famous foaming machine company’s technology at home and abroad. Compared with other similar equipment energy saving up to 30% - 40% , reliable quality, stable performance, accuracy material charge, high economic efficiency, has the extremely high performance-to-price ratio.
2.Machine state and character
(1)Main technical character
No. |
Items |
character |
1 |
Foam type |
Hard foam,soft foam,self-skinning |
2 |
Viscosity of raw material (20°C) |
POL :~2500MPas ISO :~1000MPas |
3 |
Injection pressure |
8-16Mpa |
4 |
Injection flow (mixing ratio 1:1) |
80-1320g/s |
5 |
Mixing ratio range |
1:3~3:1(adjustable) |
6 |
Injection time |
0.01~99.99S(correct to 0.01S) |
7 |
Injection repeatability accuracy |
≤±1.5% |
8 |
Material temperature control range |
±2°C |
9 |
Mixing head |
FPL-1218 |
10 |
Valume of tan |
160L |
11 |
Hydraulic system |
Flow 10 L/min,pressure 16~20MPa |
12 |
Pneumatic working pressure |
0.6-0.8Mpa |
13 |
Compressed air demand |
Dry clean P:0.45MpaQ:400NL/min |
14 |
Temperature controller |
Water cooler 5HP |
15 |
Hydraulic oil temperature |
|
16 |
Space |
2M*1.6M |
17 |
Total power |
about38KW |
18 |
Total weight |
about2.0t |
19 |
Power |
380V 50HZ(regulated spontaneous electric) |
(2),Main parts
No. |
Name |
State |
main technical specifications |
Quantity |
1 |
POLY metering pump |
Rexroth |
A2V28 |
1 |
2 |
ISO metering pump |
Rexroth |
A2V28 |
1 |
3 |
Metering pump motor |
Shanghai |
11KW,1450r/min |
2 |
4 |
Magnetic pump coupling |
Dongri(Germany technology0 |
Low temperature change, Constant torque output |
2 |
5 |
L type mixing head |
FPL-1218
|
Automatic constant pressure needle valve structure, automatic measure material ratio of gun |
1 |
6 |
Pumb of hydraulic station |
Cooperate with Rexroth |
Displacement 10 L pressure 31.5 Mpa
|
1 |
7 |
Main motor of hydraulic station |
Shanghai |
5.5KW,1450r/min |
1 |
9 |
Rely of hydraulic station |
Cooperate with Rexroth |
Double-cotactor permit with Rexroth |
1 |
10 |
Approach switch of material in gun |
PEPPERL FUCHS |
Scence distance0~ 1.5mm |
1 |
11 |
High pressure digital display pressure transmitter
|
America Pressure mebrane |
Ceramic diaphragm structure using anti channeling material, prevent crystallization design
|
2 |
12 |
Low pressure digital display pressure transmitter
|
America Pressure mebrane |
Ceramic diaphragm structure using anti channeling material, prevent crystallization design
|
2 |
13 |
PLC |
Omron |
CP1Lsystem 40 ports |
1 |
14 |
Interface |
Omron |
5.7 -inch LCD screen dynamic display of the parameters and conditions |
1 |
16 |
Liquid-pressure controller |
Omron |
8 connectors |
1 |
17 |
Liquid-level controller |
Omron |
8 connectors |
1 |
18 |
Low-voltage controller |
CHitai |
Circuit breakers, contactors intermediate relay etc electrical components
|
1 |
19 |
Transducer |
Domestic |
11KW motor |
2 |
20 |
Transfinite light induced liquid level gauge
|
|
contain foamy fluid transfinite alarm signal |
2 |
21 |
Built-in heat exchanger |
|
Increase heat exchange area |
2 |
22 |
POLtank(intermediate water) |
160L |
1.2Mpa |
1 |
23 |
POL tank set mixing plant |
|
Feed back eddy mixing |
1 |
24 |
ISO (intermediate water) |
160L |
1.2Mpa |
1 |
25 |
ISO tank set mixing plant |
|
Feed back eddy mixing |
1 |
26 |
Load pump |
Polyurethane special charge pump |
|
2 |
27 |
5 horse water chillers |
Daikin compressor |
10000kcal Air cooled heat exchange |
1 |
Cyclopentane foaming machine

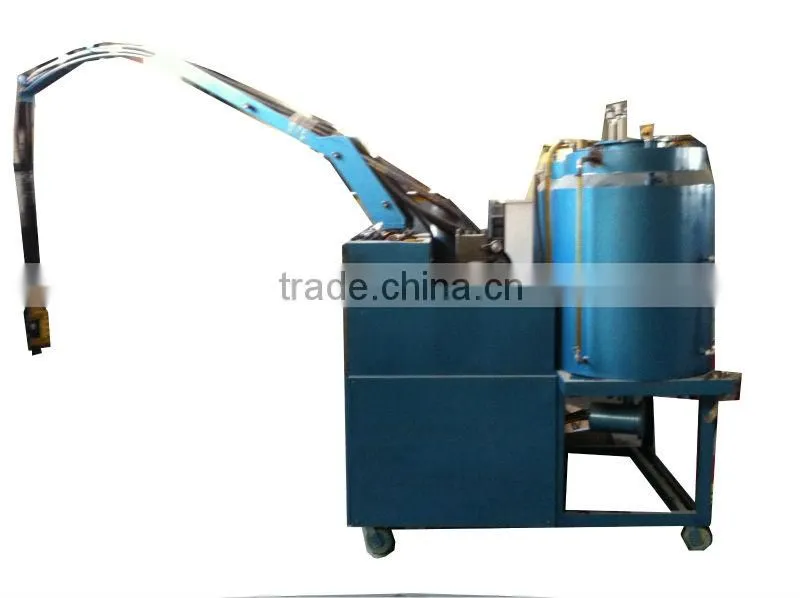

F141b foaming machine
For F141b foaming agent,you also can use manual method.
