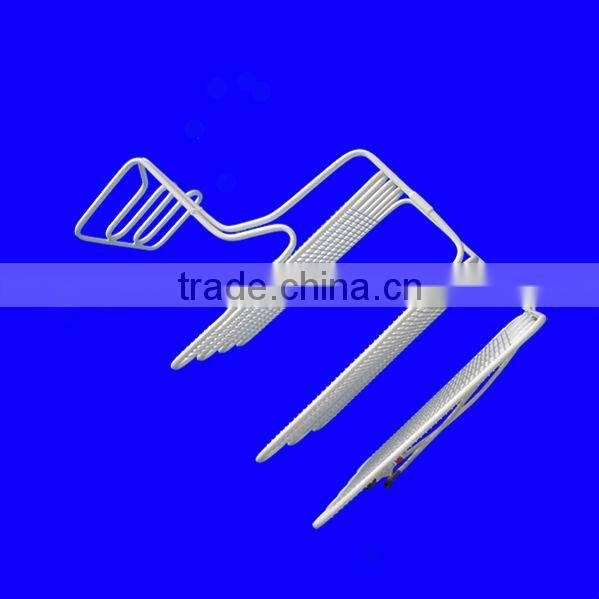

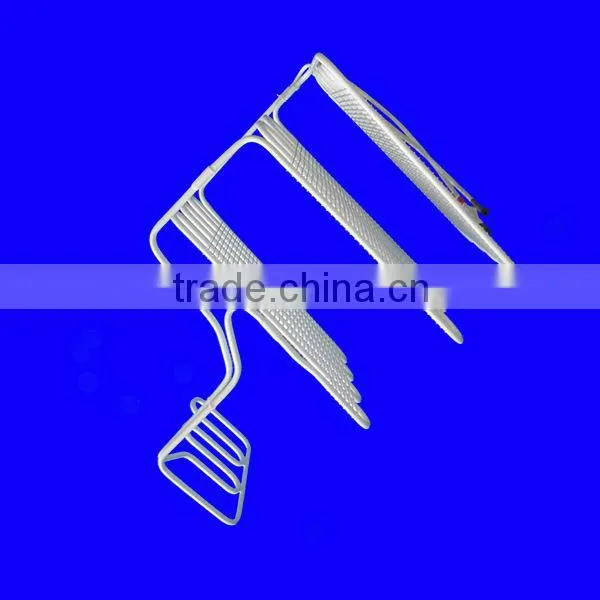

Steel Wire Bundy Tube Evaporator For Refrigerator
- 3000 Set / Sets per Month
- Shanghai/Ningbo
- T/T
Product Details
Condition: | New | Brand Name: | TJ | Place of Origin: | Hubei, China |
Power Source: | Electricity | Certification: | LFGB, Other, LFGB, RoHS |
Packaging Details
10 sets in each carton, evaporator covered by paper
Product Description
Specifications
Product:fridge evaporatorMaterial: bundy tube and steel wire
Quality assured: ISO 9001 and ROHS
High heat exchange efficiency
Environmental protection
Energy-saving, Corrosion-resistant
Made by modern production technology and imported production equipment by using top quality monolayer weld pipe or Bundy tube and steel wire, electrophoresis paint handling for surface. it is suit for such as refrigerator and freezer.
Freezer Evaporator | |||
Wire On Tube Evaporator for Fridge | |||
Wire On Tube Evaporator for Freezer | |||
Ice Box Evaporator, | |||
Evaporator | |||
Raw Material | 1)Rolling welded steel tube : Out Diameter 8mm , Wall Thickness 0.6-0.71mm; | ||
2)Low carbon steel wire O.D.1.4-1.5mm | |||
3)Bracket:Steel Plate (SPCC),thickness 0.6-0.8mm | |||
Structure | 1)Evaporator for single temperature control system (single capillary evaporator) | ||
2)Evaporator for double temperature control system (double capillary evaporator) | |||
3)Evaporator for three way temperture control system (three capillary evaporator) | |||
Key Process | Tube bending, Tube welding, Mono shelf assemble, Assembly welding, Leakage testing | ||
Coating, Inspection, Package | |||
Technical Ability | 1)The distance of steel wire ≥6mm | ||
2)Produce according to the drawing or sample supplied by clients | |||
Performance | 1)Surface treated with powder painting or dip coating to prevent the corrosion1) | ||
2)Inner cleanness can meet the requirement of R134a &CFC cooling system | |||
3)Can satisfy the cooling capability requirements | |||
4)Producing Capacity: 3000 piece/Day | |||
R134a Cooling System Tube Inside Standards | |||
Residual Moisture | ≤20 mg/m2 | ||
Residual Impurity | ≤30 mg/m2 | ||
Residual Mineral Oil | ≤7 mg/m2 | ||
Residual Chlorine | ≤0.3 mg/m2 | ||
Residual Paraffin | ≤0.2 mg/m2 | ||
Specification of Coating | |||
Coating Thickness | Thickness of coating 30-100um | ||
Harness of Coating | ≥2H | ||
Impact of Coating | 50 cmkg/cm impact, no crack | ||
Adhesion of coating | ≥ two grade | ||
Flexbility of Coating | Around R=3D bend 180°,no crack or no fall off | ||
Color tolerance of Power Painting | E ≤ 1.5 | ||
|
We can supply and produce new design products according to your requirment, and we also can help you to design new samples. If you are interested in our products, PLS cantact me and we will quote you the details for your referrence.
About us: Taijia--Professional manufacturer for evaporator and condenser.
We are also the main supplier of evaporator and condenser.
BEST REGARDS.
Company Profile
Jingzhou Taijia Refrigeration Equipment Co., Ltd. is a manufacturer established in 1984 and specialized in the research, development and production of wire tube condenser, wire tube evaporator, finned evaporator ,finned condenser and tube plate evaporator for refrigerator,freezer .
We are located in Jingzhou, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.
We are looking forward to forming successful business relationships with new clients around the world in the near future.
