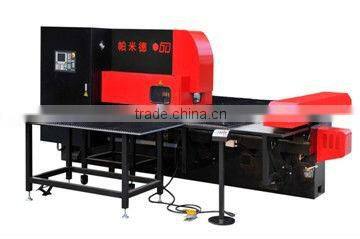

CNC puncher
Feature:
1,Open bed, internal welding 40 mm stiffener, total thickness up to 80 mm, body weight 6.5 T.The bed of whole 48 hours tempering treatment after welding is of stress relief, no deformation, high rigidity, accurate of the localization , more smoothly with high speed feed, put an end to table X Y axis dynamic excursion
2,The adoption of pneumatic floating clamp
3,Feeding platform is of brush plate or brush ball mixed performance is good for high quality big lead ball screw linear guide, high precision
4,Siemens control system, with high quality large inertia digital ac servo motor,is high speed, good reliability
5,With high quality hydraulic pump, digital proportion servo valve is full closed loop control, high resolution, stroke speed digital adjustable
6,Stamping speed 600 HPM; Precise control of the bottom dead center, very convenient processing pages window ,knock off hole, roll bar slitting stamping, etc
7,Full bushing of high precision rotary effectively improve the rotary accuracy and life, rotary material for QT700-2
8,Centralized lubrication device, reduce the luck for friction, improve the service life of the machine
Performance parameters
Nominal force |
KN |
200 |
Biggest Size of Processing Plate |
mm |
1250*2500 |
Thickest of Processing Plate |
mm |
6 |
Maximum diameter one punch |
mm |
88.9 |
Mold station |
N |
18/24 |
Hole Accuracy |
mm |
±0.10 |
highest punching frequency of 1mm step distance |
hpm |
400 |
Controlling Axis |
No. |
3 |
Air pressure |
mpa |
0.5 |
Body |
|
open |
