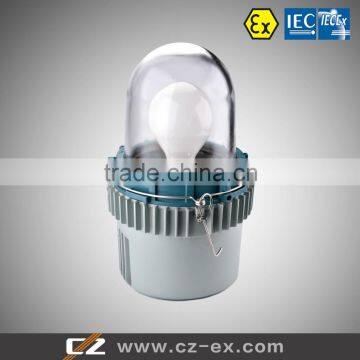

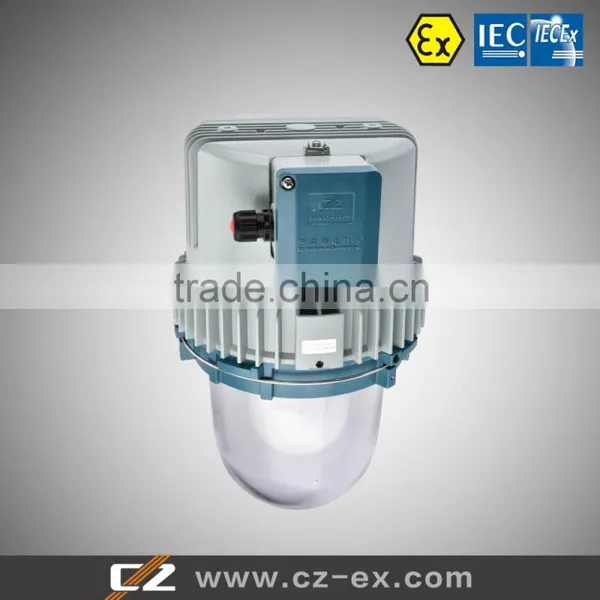

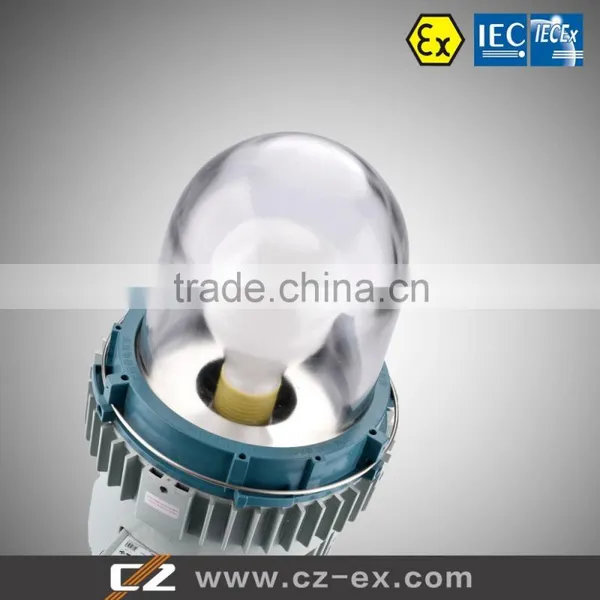

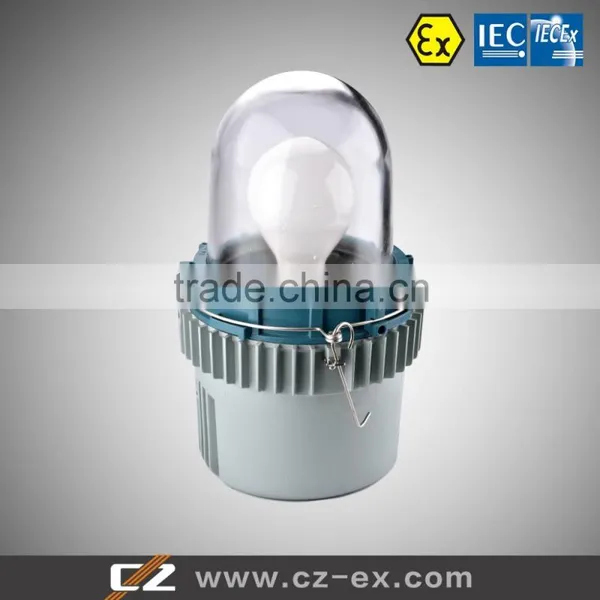

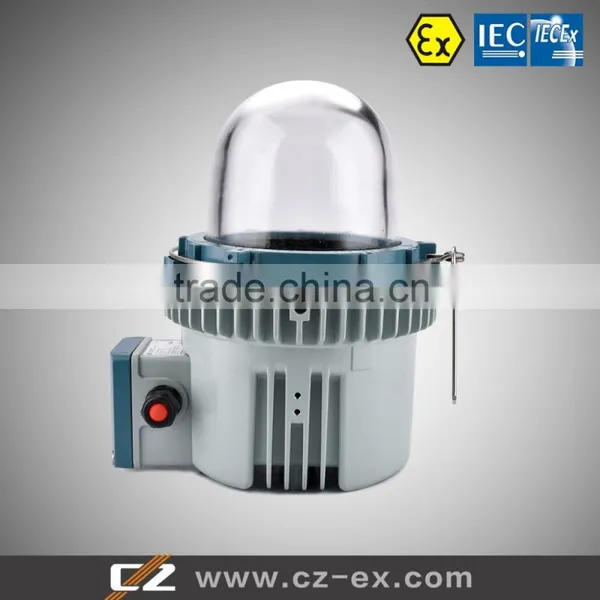

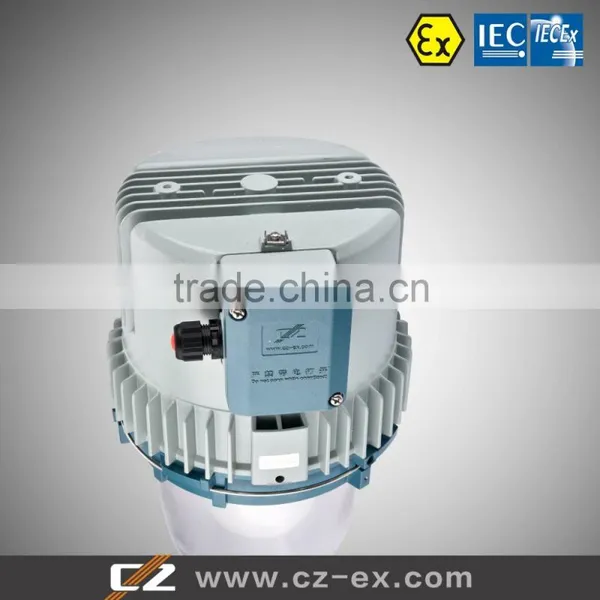

Explosion-proof Light Fitting/lighting Fixture/lamp Fixture

US$ 310 - 510 MOQ: 1 Piece

Key Specifications

Lamp Body Material:

Aluminum Alloy

Place of Origin:

Zhejiang, China

Brand Name:

CZ Explosion-Proof Electric Appliances Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Lamp Body Material Aluminum Alloy

Place of Origin Zhejiang, China

Brand Name CZ

Model Number CZ0872

Ex mark: Ex de IIC T6/T5/T4/T3 and DIPA21 TA T6/T5/T4/T3
Intended use:
- Can be used in zone 1 and zone 2
- Can be used in zone 21 and zone 22, zone 20
Protection degree: IP66
Rated voltage: 220 V AC, 50 or 60Hz
Ambient temperature: -40 ≤ Ta≤50 degrees
Lampholder code: E40
Power: 150 to 500W
Light source: OSRAM's self-ballasted mercury lamp 500w; incandescent lamp 500w; OSRAM's electromagnetic induction compact fluorescent lamp 165w; metal halide lamp 250w,400w; OSRAM's high pressure sodium lamp 150w, 250wand 400w ; ORSAM's high pressure mercury lamp 250w
Terminal: L1,N Cage type terminal, PE terminal 2×10mm2
Cable entry:
- Molded plasticc M25 x 1.5 cable gland, Outside diameter: Ø8 to 17mm,Molded plastic 1xM25 x 1.5 stopping plug

Feaures:
Four patents
Highest class IIC of flameproof, protection degree up to IP66
Convenient to be wired and mounted due to the wiring of explosion-proof junction box
Convenient to be installed and maintained due to the design of ferrule suspension hook type between the glass cover and the lighting fixture body
Easier to be wired by cage type terminal which is certified internationally
High impact toughened glass cover is compliance with international standard even without the mesh shade
External fastener and other accessories are made of stainless steel which is high corrosion-proof
Standard equipped with the light source of Philips brand
High luminance, high light efficiency and high coloration
Energy saving is up to 70% higher than the ordinary incandescent lamp
Range of wide operating voltage: 170 to 250V
Once start-up, the light is no frequent flash
Cold sunlight color: 6,500K
Air pump type is used to the light source which makes the design life longer
All brands and trademarks used are for reference only
