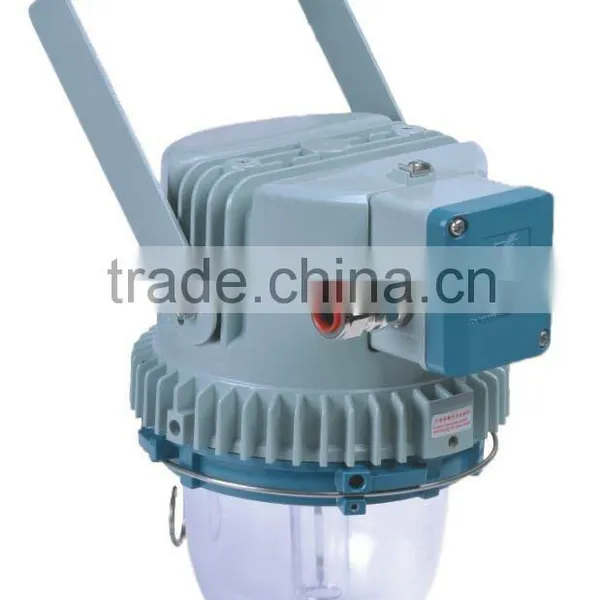

Explosion-proof light fitting

Specifications

1ATEX Certifing
2With China Conformity Certificate of Explosion-proof
3Ex de IIC T6/T5/T4/T3 and DIPA21 TA T6/T5/T4/T3
4 IP66

Main technical data:

1. Ex mark: Ex de IIC T6/T5/T4/T3 and DIPA21 TA T6/T5/T4/T3
2. Intended use:
   • Can be used in zone 1 and zone 2
   • Can be used in zone 21 and zone 22, zone 20
3. Protection degree: IP66
4. Rated voltage: 220 V AC, 50 or 60Hz
5. Ambient temperature: -40 ≤ Ta≤50 degrees
6. Lampholder code: E40 or E27
7. Power: 45to 300W
8. Light source:  PHILIPS'energy saving lamp 45w or 65w; OSRAM's self-ballasted mercury lamp 125w,160w and 250w; incandescent lamp 200w and 300w; OSRAM's electromagnetic induction compact fluorescent lamp 40w, 50w, 55w, 85w; metal halide lamp 70w,150w;  OSRAM's high pressure sodium lamp 70w and 100w ; ORSAM's high pressure mercury lamp 80w and 125w
9. Terminal: L1,N Cage type terminal, PE terminal 2×10mm2
10. Cable entry:
    • Molded plasticc M25 x 1.5 cable gland, Outside diameter: Ø8 to 17mm,Molded plastic 1xM25 x 1.5 stopping plug

Feaures:

• Four patents
• Highest class IIC of flameproof, protection degree up to IP66
• Convenient to be wired and mounted due to the wiring of explosion-proof junction box
• Convenient to be installed and maintained due to the design of ferrule suspension hook type between the glass cover and the lighting fixture body
• Easier to be wired by cage type terminal which is certified internationally
• High impact toughened glass cover is compliance with international standard even without the mesh shade
• External fastener and other accessories are made of stainless steel which is high corrosion-proof
• Standard equipped with the light source of Philips brand
• High luminance, high light efficiency and high coloration
• Energy saving is up to 70% higher than the ordinary incandescent lamp
• Range of wide operating voltage: 170 to 250V
• Once start-up, the light is no frequent flash
• Cold sunlight color: 6,500K
• Air pump type is used to the light source which makes the design life longer
• All brands and trademarks used are for reference only
