IEC ex Proof Socket

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port chinese port
Payment TermsMoney Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Light Source	Fluorescent	Input Voltage(V)	220
Lamp Power(W)	36	Lamp Luminous Flux(lm)	100
Color Temperature(CCT)	Cool White	Working Temperature(℃)	85, 125
Working Lifetime(Hour)	10000	Certification	CCC
Lamp Body Material	ABS	Base Type	G6.5
Place of Origin	Zhejiang, China	Brand Name	CZ
Model Number	0251

Product Description

Specifications

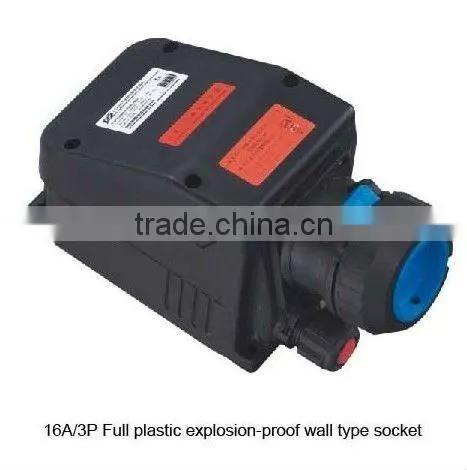

IEC ex proof socket

Detailed Product Description

Full plastic material,Toppest quality ,the same as Cooper,Lower price than top brand all over the world, 5 years guarantee.

Ex mark: Ex edIIC T6    DIP A21 TA, T6
Intended use: Can be used in zone 1 and zone 2
                       Can be used in zone 21 and zone 22
Ambient temperature use: -40°C≤Ta≤40°C
Degree of protection: IP66
Frequency: 50/60Hz
Rated voltage: maximum 690V
Rated current: maximum 125A
Switch capacity: AC3  16A       DC1  16A
Cable entry: Wall type socket ( bottom ) 1×M25    Φ8 ~ 17mm
                     Plug: Cable outside diameter Φ8 ~ 19mm
                     Coupler type: Cable outside diameter Φ8 ~ 19mm
