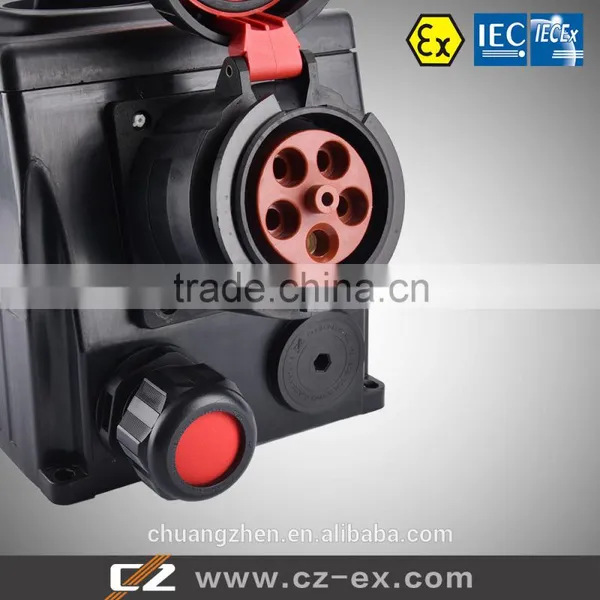

CZ Full Plastic Explosion-proof Wall Type Socket

US$ 58 - 433 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

CZ0252 Series

CZ Explosion-Proof Electric Appliances Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name CZ

Model Number CZ0252 Series

Type Plug with Socket

Grounding Standard Grounding

Rated Voltage 200-250V 380-415V 480-500V 600-690V

Rated Current 32A

Application Other, Oil&Gas and industrial and commercial

Specifications
1.Ex mark:Wall type socket,plug ,coupler type socket:Ex II 2GD Ex de IIC T6 Gb Ex tD A21 T 80 ^oC Ta ≤ 40^oC

Ex II 2GD Ex de IIC T5 Gb Ex tD A21 T 95 ^oC Ta ≤ 55^oC

Panel type socket: Ex II 2GD Ex de IIC Gb Ex tD A21
2.Intended use:zone 1,2&21,22
3.Degree of protection:IP66

4.Ambient temperature use:-40^oC≤Ta≤55^oC

5.Frequency:50/60HZ

6.Rated voltage:up to 690V

7.Rated current:maximum 32A

8.Switch capacity:AC3 up to 690V~/32A

9.Cable entry:Wall type socket(bottom)Moulded plastic 1*M32 Φ12-21mm & Moulded plastic 1*M32 stopping plug

4,5 poles plug:cable outside diameter:Φ10-28mm

4,5 poles couple type:cable outside diameter:Φ10-28mm

10.Order specifications:

Plug clock h (position) and voltage	Type	Weight(kg)	Aux.Contact	Order No.
32A-4 Poles
9 clock 200-250V 3P+PE	Wall type socket	1.8		CZ0252 4409 0001
	Panel type socket	1		CZ0252 8409 0001
	Coupler type socket	1.7		CZ0252 3409 0001
	Plug	0.7		CZ0252 7409 0001
	Plug with protective cover	0.74		CZ0252 7409 8034
6 clock 380/415V 3P +PE	Wall type socket	1.8	NO	CZ0252 4406 0001
	Wall type socket	1.8	YES	CZ0252 4406 4001
	Panel type socket	1	NO	CZ0252 8406 0001
	Coupler type socket	1.7	NO	CZ0252 3406 0001
	Plug	0.7	NO	CZ0252 7406 0001
	Plug with protective cover	0.74	NO	CZ0252 7406 8034
7 clock 480-500V 3P+PE	Wall type socket	1.8	NO	CZ0252 4407 0001
	Wall type socket	1.8	YES	CZ0252 4407 4001
	Panel type socket	1	NO	CZ0252 8407 0001
	Coupler type socket	1.7	NO	CZ0252 3407 0001
	Plug	0.7	NO	CZ0252 7407 0001
	Plug with protective cover	0.74	NO	CZ0252 7407 8034
5 clock 600-690V 3P+PE	Wall type socket	1.8	NO	CZ0252 4405 0001
	Wall type socket	1.8	YES	CZ0252 4405 4001
	Panel type socket	1	NO	CZ0252 8405 0001
	Coupler type socket	1.7	NO	CZ0252 3405 0001
	Plug	0.7	NO	CZ0252 7405 0001
	Plug with protective cover	0.74	NO	CZ0252 7405 8034
32A-5 Poles
6 clock 200-250V 380/415V 3P +N+PE	Wall type socket	1.8	NO	CZ0252 4506 0001
	Wall type socket	1.8	YES	CZ0252 4506 4001
	Panel type socket	1	NO	CZ0252 8506 0001
	Coupler type socket	1.7	NO	CZ0252 3506 0001
	Plug	0.7	NO	CZ0252 7506 0001
	Plug with protective cover	0.74	NO	CZ0252 7506 8034
