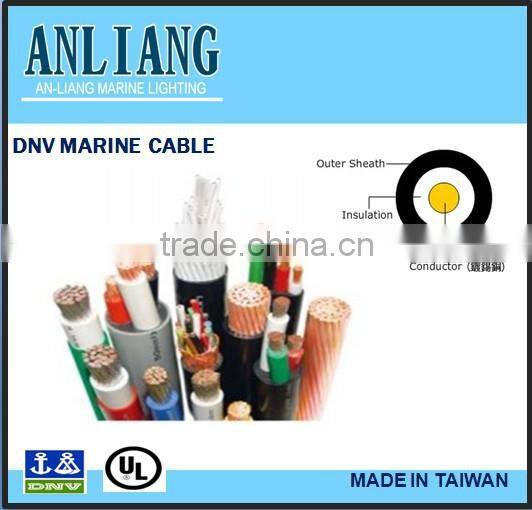

UL/DNV 1core 9.3mm shipboard PVC insulted Power Distribution electrical cable wire
| Certificate No. : E-8832 File No. : 827.10 |
|
Application:
|
Construction:
Conductor : Tinned stranded copper class 5
Insulation : PVC,A.Flame Retardant
Sheath : PVC,ST2.Flame Retardant
Operating Temp. : 70℃
Voltage Rating : 600/1000 Volts
| Number of cores |
Conductor Cross-section mm2 |
Overall diameter mm |
Tin coated Conductor Resistance at 20℃ Ω/km |
Insulation Resistance at 70℃ MΩ-km |
| 1 | 1.5 | 6.3±0.2 | 13.7 | 0.0116 |
| 1 | 2.5 | 6.9±0.2 | 8.21 | 0.010 |
| 1 | 4 | 7.7±0.2 | 5.09 | 0.0094 |
| 1 | 6 | 8.4±0.2 | 3.39 | 0.0085 |
| 1 | 10 | 9.3±0.3 | 1.95 | 0.0069 |
| 1 | 16 | 10.8±0.3 | 1.24 | 0.0056 |
| 1 | 25 | 12.4±0.3 | 0.795 | 0.0051 |
| 1 | 35 | 13.9±0.3 | 0.565 | 0.00434 |
| 1 | 50 | 16.2±0.4 | 0.393 | 0.0042 |
| 1 | 70 | 18.8±0.4 | 0.277 | 0.0042 |
| 1 | 95 | 20.5±0.4 | 0.21 | 0.0036 |
| 1 | 120 | 23.2±0.4 | 0.164 | 0.0031 |
| 1 | 150 | 25.9±0.4 | 0.132 | 0.0031 |
| 1.Company founded in 1985 |
| 2.All made in Taiwan |
| 3.Quick Shipment-has 100 pcs in stock |
| 4.OEM based on certain quantity |
| 5.Extra reaplcement / repair parts order |
| 6.Export carton package |
