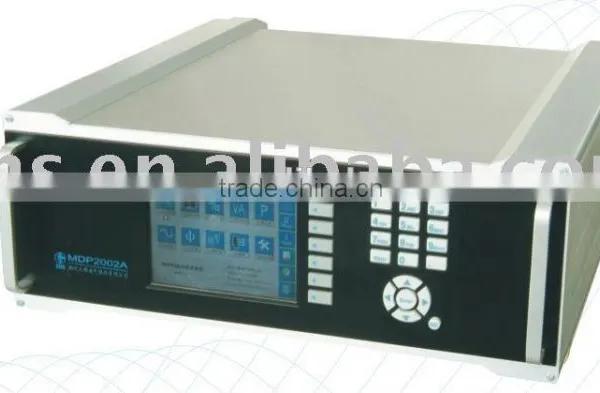

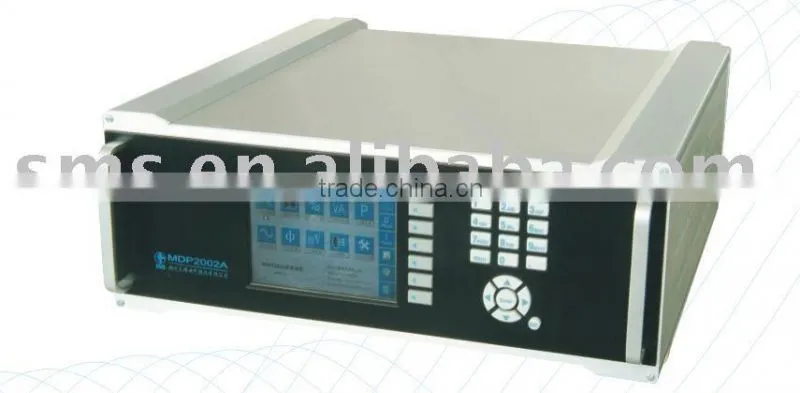

MDP2002A Three Phase Reference Standard Meter

MDP2002A Three Phase Reference Standard Meter thumbnail-1
MDP2002A Three Phase Reference Standard Meter photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
SMS
Model Number:
MDP1000
Contact Supplier Request Quote Chat Now
SMS Electric Co., Ltd. Zhengzhou
Payment & Shipping
Payment Methods:
Port of Shipment:
any port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name SMS
Model Number MDP1000
Display Type Analog and Digital
Phase Three Phase
Measuring Energy Range 5A(single range)
Accuracy Class 0.02

Specifications

1.Certificate: ISO 9001;
2.Accuracy class: 0.02;
3.High stability;
4.Prompt delivery
5.Excellent aftersale service

Main function:

1.High precision : Class 0.02 for measurement of U,I,P,E

2.Multi-function: measure voltage,current, phasor, frequency,Power, atctive/reactive energy, errors at the same time.

3.Wide measuring range: 30V~480V for Voltage,.0.1A~120A for current

4.convenient operation: equipped with ARM series high performance CPU as the main controlling unit, operating by Windows CE.NET and with 640X480TFT true color, high light LCD.

5.Build-in testing plan as per energy meter calibration procedure, autosaving testing data

6.Fully digital product: adopping high speed A/D +DSP technology

7. Multi additional functions, include:
a. Symmetery calculation  for Voltage, Current and Phasor
b. Stability calculation  for voltage, current and phasor
c. Interaction calculation for volatge, current and phasor
d: wave display, harmonic analysis, distortion calculation
e: Calibrate Voltmeter, amperemeter,phasor indicator, frequency indicator and power indicator
f: volage calculation for the same end
g: intensity mesurement for magnetic field
h. Errors, S value measurement and multi-output consistency and short term stability variation measurement.
i: exterior interface: RS232, USB convenient for data interchange, display and output.

INDEX:



Voltage measuring range:

3×60,3×100,3×200,3×400V auto/manual -shift

Current measuring range:

0.1A, .25A,0.5A,1A,2.5A,5A,10A,20A,40A100A

Auto/manual shift

Accuracy:

Voltage

0.02%

current

0.02%

Basic Errors

0.02%

Frequency

±0.01Hz

Active power

0.02%

Reactive power

0.1%

Reactive energy

0.1%

Phase angle

±0.05°

Power supply

AC220±10%

Power consumption

<30VA

Phase angle measuring range

0°--359.999°  resolution:0.001°

Frequency scope

45.0000Hz---65.0000Hz   resolution:0.0001Hz

24Hour variation

<0.004%

yearly variation

<0.01%

Dimension

540*486*182mm

Working temperature

20°C±10°C

Relative humidity:

25%--90% no condensation

connect mode

4 wire active

4 wire reactive true

4 wire reactive cc

3 wire active

3 wire reactive true

3 wire 2-element reactive cc

3 wire 3-element reactive cc

3 wire man-made netual reactive

3 wire 60° reactive





































SMS PC software

1-      Design according to JJG597-2005.  automatically make conclusion. Auto- Data integer

2-      With 1024*768 interface, accord with basis dispaly requirement of Laptop

3-      Print model and modification of printing certification can be modified in  WORD format

4-      Realize all testing items according to related standard

Comprised by: class 0.02 MDP2002A wide range reference standard meter  + SMS PC software (not include the notebook PC)



Associated Standards

IEC 62053-21 (2003)  Alternating current static watt-hour meters for active energy.

IEC 62053-22 (2003)  Electricity metering equipment (A.C.)-Particular requirements

static meters for active energy (Class 0.2S and  0.5S )

IEC 62053-23 (2003)  Alternating current static var-hour meters for reactive energy.

IEC 60736 (1982)    Testing equipment for electrical energy meters.

DIN 4 3857 (1,2)    Watthour meters in moulded insulation cases without instruments transformers, principal dimensions for poly-phase and single-phase meters

BS 7856            Design of alternating current, watt hour meters for active energy (class 1 and 2).





Standard config list

1,      Portable box for Host machine  1 set

2,      Accessories box  1

3,      Current testing lead  2 sets (100A,25A)

4,      Voltage testing lead  1 set

5,      mv testing lead  1 set

6,      magenetic field intensity induced winding  1 pcs

7,      impulse output lead  2pcs

8,      impluse output lead   2pcs

9,      communication lead   1 pcs

10,  power lead  1 pcs

11,  5A tube    5 pcs

12,  User manual  2

13,  PC software installation CD  1set
