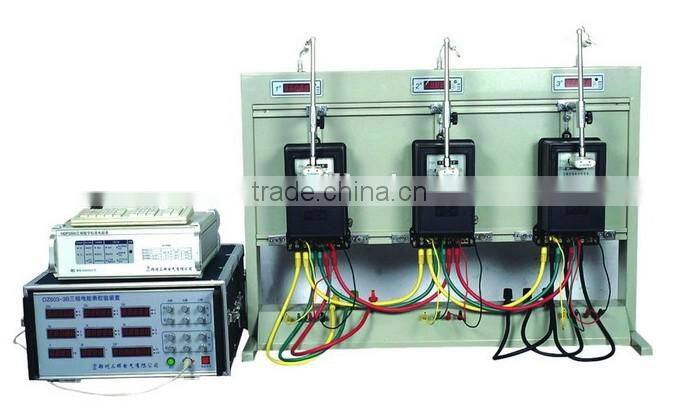

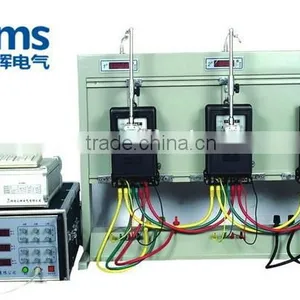

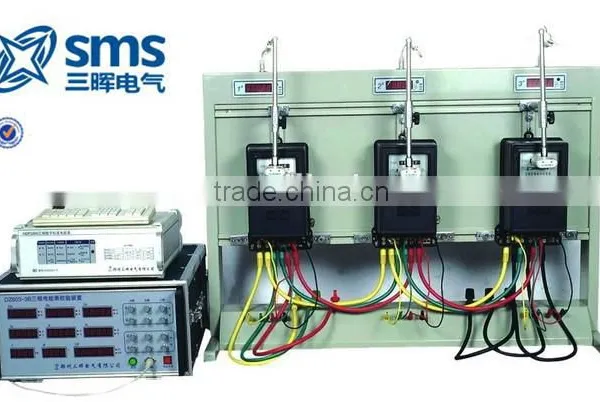

Help Center3 Meter Positions Portable Three Phase Energy Meter Calibrating Bench
Related Products
-
3 Meter Positions Portable Single Phase Energy Meter Calibrating BenchUS$ 5,000 - 33,000MOQ: 1 Set -
Portable Energy Meter Test EquipmentUS$ 3,500 - 8,500MOQ: 1 Set
-
Portable Single Phase Energy Meter Calibrating Bench Test BenchUS$ 5,000 - 33,000MOQ: 1 Set
-
Portable Three Phase Energy Meter Calibrating Bench Test Device With 3 Meter PositionsUS$ 5,000 - 33,000MOQ: 1 Set
-
Three Phase Portable Meter Test DeviceUS$ 3,500 - 8,500MOQ: 1 Set
Specifications
1. Test all items as per IEC and ANSI2. Certificate: ISO 9001
3. Accuracy class: 0.05

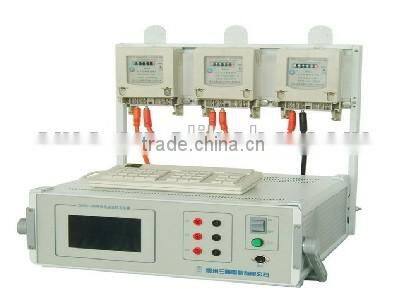

DZ603-3B Portable Single Phase Energy Meter Calibrating Bench
Features:
1. The operation can be controlled via computer software or special keyboard.
2. Program controlled power source, high precision reference standard meter.
3. Output voltage and current adopts soft-stop and start, alarm protection when voltage short circuit and current open circuit,
4. Voltage, current, frequency and phase shall be set freely under manual calibration.
5. Output voltage and current signal can be set according to the city power.
6. Small size, high stability and portable.
Specifications:
item | Class 0.05 Class 0.1 | |
Equipment accuracy class | 0.05 for active | |
Standard meter accuracy class | 0.05 | |
Voltage isolated transformer(PT) accuracy class | 0.01 | |
Measure repeatio (cosφ=1.0) | 0.01 | |
Current range | 0.1A,0.5A,1.0A,2 .5A ,5A,10A,20A,50A,60A | |
Voltage range | 57.7V 100V 220V 380V | |
Output power | voltage | 50VA/phase |
Current | 60VA/phase | |
Voltage adjusting | Adjusting range | 0~120% |
Adjusting resolution | 10%,1%,0.1%,0.01% | |
Current adjusting | Adjusting range | 0~120% |
Adjusting resolution | 10%,1%,0.1%,0.01% | |
Phase adjusting | Adjusting range | 0.00°~359.99° |
Adjusting resolution | 10°,1°,0.1° | |
Frequency adjusting | Adjusting range | 45.00~65.00Hz |
Adjusting resolution | 10Hz,1Hz,0.1Hz | |
Waveform distortion | 1.0% | |
Power stability | 0.05% | |
Display Accuracy class | Voltage | ±0.1% |
Current | ±0.1% | |
power | ±0.1% | |
frequency | ±0.1% | |
phase | ±0.2° | |
Working power | 220V±10%,50Hz (or as per your request) | |
1. We can produce the single phase meter test bench/single phase energy meter instrument/single phase electricity meter test equipment according to client's requirement.
2. Good after-sale service, and good quality.
3. All our products can test all items such as Per IEC and ANSI
Founded in 1996, SMS Electric Co., Ltd. Zhengzhou is a hi-tech enterprise, which specializes in the research & development (R&D) and production of energy meters, energy meter test benches, automated energy meter test line, energy meter assembly line, reference standard energy meters and instrument transformers, etc
With the development for years, we have possessed 9 series and 100 variety of energy meters, energy meter test benches, automated energy meter test line, energy meter assembly line, reference standard energy meters, and instrument transformers with annual production capacity of USD40,200,000, of which home market takes up about 83.%, while the overseas market takes about 17%.
Now, our sales network covers worldwide market and our products have been sold well all over the world, such as Denmark, Serbia, Brazil, Colombia, India, South Korea, Vietnam, Qatar, Mongolia, Taiwan, Egypt, Ethiopia, etc.
SMS creates excellent products to benefit the customers
SMS creates glorious achievements to benefit the society
SMS creates high value to benefit your life
SMS welcome you!
Add: No.85, The Fifth Street, Economic & Technological Development Zone, Zhengzhou City, PRC
Skype:rachelzhang1992
Mobile: +86-158-38316839 ; Fax: +86-371-67391399;
Website: /
1. What is the advantages of your products?
Thanks for your inquiry. Our products' advantages is that all products achieve the standard of IEC and ANSI.
And our goods have been exported to many countries in the world, such as Korea, India, Russion, Pakistan, Vietnam ans so on. The quality is excellent that it wins lot reputation for us.
2. What is the shelf life for your products?
Thanks for your consideration. The shelf life of our products is 3 years. (Our company is responsible for the repairing and maintaining free of charge)
3. What terms of trade your company accept?
Thanks for your consideration. Our company accepts T/T, L/C, Western Union. Thanks for your understanding.
