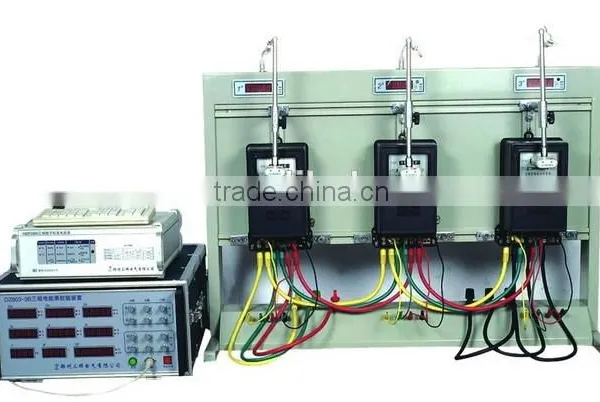

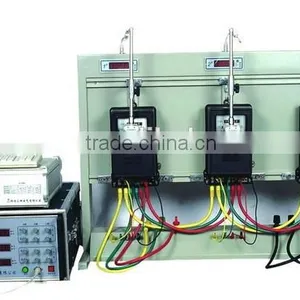

Help CenterThree Phase Portable Meter Test Device
Related Products
-
Worksite Energy Meter CalibratorUS$ 3,500 - 8,500MOQ: 1 Set -
MT3000D Worksite Energy Meter Test DeviceUS$ 3,500 - 8,500MOQ: 1 Set
-
Multifunction Energy Meter Calibrator at Work SiteUS$ 3,500 - 8,500MOQ: 1 Set
-
3 Meter Positions Portable Single Phase Energy Meter Test EquipmentNegotiableMOQ: 1 Set
-
3 Energy Meter Positions Portable Single Phase Energy Meter Calibrating BenchNegotiableMOQ: 1 Set
Specifications
1.ISO 9001 verified2.Accuracy class: 0.05, 0.1
3.Fully surport moving test-online meter calibration
wide voltage measurement
Three Phase Portable Meter Test Equipment
Main performance:
1. Newly designed outer case with small size and little weight.
2. Built operation system windows CE. NET. Window operating interface with convenient application.
3. 640x480TFT true color and high precision screen with the wonderful display interface.
4. Built-in large capacity FLASH. The intelligent meter is synchronous loading.
5. DSP high precision technology, multi-electirc parameters measurement synchronously with higher precision.
6. Adopts the latest ARM high performance CPU as the main control unit, the operation speed is faster.
7. The main and subsidiary meter calibration P3/P4 automatic wire checking, constant checking Waveform and the harmonics analysis, demand quantity burden test.
8. Standard RS232 USB interface, the external device such as the bar code, U disk and the portable PC are optional.
9. The GPS and GPRS modular are optional, which can realize the real time data transmission and the GIS information processing.
10. Equipped with wireless model, communication with PDA.
Index
Voltage measuring range: |
30400V (3×60,3×100,3×200,3×400V) |
|
Current measuring range: |
Direct measurement |
3×1A,3×5A,3×20A(as per requirement) |
Clamp measurement |
5A,500A Optional:100A,200A,1000A |
|
Accuracy: |
Voltage |
0.1% |
current |
0.1% |
|
power |
0.05% |
|
Reactive |
0.1% |
|
Frequency |
±0.01Hz |
|
Phase angle |
±0.05° Iin>20%In |
|
±1° 10%In<Iin<20%In | ||
Working voltage range |
AC80V400V |
|
Power consumption |
<15VA |
|
Working temperature |
-10°C--+40°C (special -25°C--+70°C) |
|
Relative humidity: |
30%--80% no condensation |
|
Dimension |
340*295*152mm |
|
weight |
<3KG |
|
1. Packing & Shipping
Packed in Plywood case
Deliver the goods within one month after receiving the prepayment
1. We can produce the single phase meter test bench/single phase energy meter instrument/single phase electricity meter test equipment according to client's requirement.
2. Good after-sale service, and good quality.
3. All our products can test all items such as Per IEC and ANSI
1. What is the advantages of your products?
Thanks for your inquiry. Our products' advantages is that all products achieve the standard of IEC and ANSI.
And our goods have been exported to many countries in the world, such as Korea, India, Russion, Pakistan, Vietnam ans so on. The quality is excellent that it wins lot reputation for us.
2. What is the shelf life for your products?
Thanks for your consideration. The shelf life of our products is 3 years. (Our company is responsible for the repairing and maintaining free of charge)
3. What terms of trade your company accept?
Thanks for your consideration. Our company accepts T/T, L/C, Western Union. Thanks for your understanding.
