Specifications
1. Test all items as per IEC and ANSI2. Certificate: ISO 9001
3. Accuracy class: 0.05

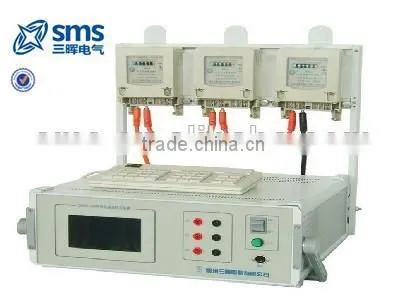

DZ601-3B Portable Single Phase Energy Meter Calibrating Bench
Features:
1. New type aluminum alloy case, composed meter-mounting rack, light weight and portable; Single phase electric or mechanical meter can be tested simultaneously.
2. Programmed control and high accuracy testing power source, all operations can be carried out via the special keyboard.
3. Large screen liquid crystal display, and all operation process can be displayed on the screen.
4. Automatic captures spots from tested meter, starting and creep testing.
5. Saving 240 meters tested data.
6.Saved data could be managed by PC with RS232.
Specifications:
1. Accuracy class: 0.1, 0.2
2. Output current: 0.01-60A, range: 0.1A, 0.5A, 1.0A, 2.5A, 5A, 10A, 20A, 60A.
3. Output voltage: 220V(230V,240V)
4. Output power: 30VA for voltage, 60VA for current.
5. For each range of voltage and current, 0-120% of range value could be continually adjusted, the resolution: 0.1%
6. Phase scope: 0-359.9°, adjusted resolution: 0.1°
7. Adjusted frequency scope: 45.00--65.00Hz, resolution: 0.1Hz.
8. Dimensions:480*320*25mm
9.Power supply: 220V, 230V, 240V, +/-10%.
1. We can produce the single phase meter test bench/single phase energy meter instrument/single phase electricity meter test equipment according to client's requirement.
2. Good after-sale service, and good quality.
3. All our products can test all items such as Per IEC and ANSI
Founded in 1996, SMS Electric Co., Ltd. Zhengzhou is a hi-tech enterprise, which specializes in the research & development (R&D) and production of energy meters, energy meter test benches, automated energy meter test line, energy meter assembly line, reference standard energy meters and instrument transformers, etc
With the development for years, we have possessed 9 series and 100 variety of energy meters, energy meter test benches, automated energy meter test line, energy meter assembly line, reference standard energy meters, and instrument transformers with annual production capacity of USD40,200,000, of which home market takes up about 83.%, while the overseas market takes about 17%.
Now, our sales network covers worldwide market and our products have been sold well all over the world, such as Denmark, Serbia, Brazil, Colombia, India, South Korea, Vietnam, Qatar, Mongolia, Taiwan, Egypt, Ethiopia, etc.
SMS creates excellent products to benefit the customers
SMS creates glorious achievements to benefit the society
SMS creates high value to benefit your life
SMS welcome you!
Add: No.85, The Fifth Street, Economic & Technological Development Zone, Zhengzhou City, PRC
Skype:rachelzhang1992
Mobile: +86-158-38316839 ; Fax: +86-371-67391399;
Website: /
1. What is the advantages of your products?
Thanks for your inquiry. Our products' advantages is that all products achieve the standard of IEC and ANSI.
And our goods have been exported to many countries in the world, such as Korea, India, Russion, Pakistan, Vietnam ans so on. The quality is excellent that it wins lot reputation for us.
2. What is the shelf life for your products?
Thanks for your consideration. The shelf life of our products is 3 years. (Our company is responsible for the repairing and maintaining free of charge)
3. What terms of trade your company accept?
Thanks for your consideration. Our company accepts T/T, L/C, Western Union. Thanks for your understanding.
