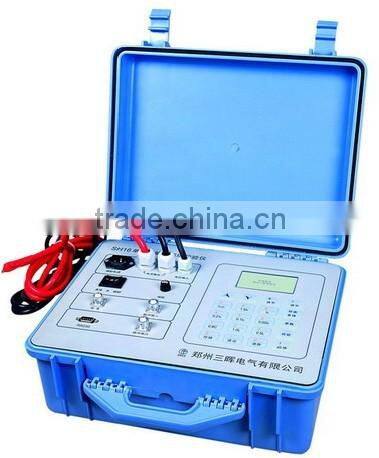

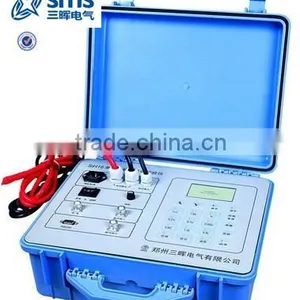

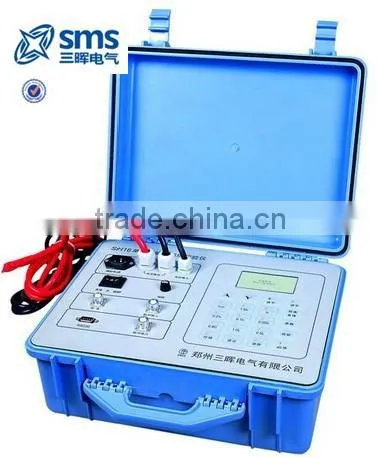

Portable Single Phase Energy Meter Calibrator at work site

Specifications

  Portable Single Phase Energy Meter Calibrator at work site

Main Performance:

1. Inner setting programmed power source, scientific meter calibrator.

2. Current output: 060A, satisfying the calibration for different meters and more testing points.

3. The phase between the voltage on site and current output: 0359.9° shall be adjusted.

4. Measurement on site without disconnecting power circuit by current clamps.

5. Error, voltage, current, phase, frequency, and power factor can be tested directly.

6. LCD display, simple and easy operation interface.

7. Low power consumption, high accuracy and convenient and portable.

Index:

1.Accuracy class: 0.2, 0.3.

2.Phase scope: 0359.9°, adjusted resolution: 0.1°.

3.Current output scope: 060A, continually adjusting, detailed range: 1A, 5A, 20A, 60A.

4.Traceable city power frequency: 45.0065.00 HZ.

5.Power supply: 45.0065.00 HZ.; 220V±10%.

6..Power consumption: <=120VA.

7.Working circumstance:

  temperature: 0-40°C, humidity:30%-80%RH.

Dimension: 406X330X174MM

1. Packing & Shipping

      Packed in Plywood case

      Deliver the goods within one month after receiving the prepayment

  1. We can produce the single phase meter test bench/single phase energy meter instrument/single phase electricity meter test equipment according to client's requirement.

  2. Good after-sale service, and good quality.

  3.  All our products can test all items such as Per IEC and ANSI

  1.  What is the advantages of your products?

        Thanks for your inquiry. Our products' advantages is that all products achieve the standard of IEC and ANSI.

        And our goods have been exported to many countries in the world, such as Korea, India, Russion, Pakistan, Vietnam ans     so on. The quality is excellent that it wins lot reputation for us.

   2.   What is the shelf life for your products?

         Thanks for your consideration. The shelf life of our products is 3 years. (Our company is responsible for the repairing and maintaining free of charge)

   3.   What terms of trade your company accept?

         Thanks for your consideration. Our company accepts T/T, L/C, Western Union. Thanks for your understanding.
