worksite meter calibrator
- 15 Set / Sets per Month
- As per your request
- T/T
Product Details
Place of Origin: | Henan, China | Brand Name: | SMS | Model Number: | MT3000D |
Power: | Electronic | Usage: | Other, meter calibration |
Product Description
Specifications
1. Field meter calibration device2. Able to check 48 different wrong wiring connection for P3
3. Certificate: ISO 9002;

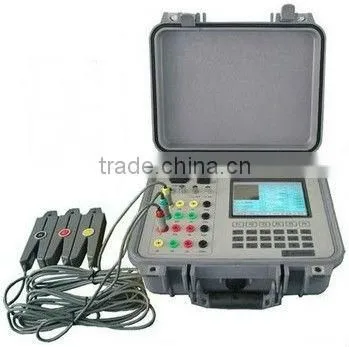

Field meter calibration device
Main features:
1) Large color LCD, friendly user's interface, display vector diagram and
wiring connection results, check 48 kinds of different wrong wiring
connections for 3p3w
2) Single or three phase active / reactive electronic or mechanical meter
can be tested, directly measure voltage, current, frequency, phase,
power factor at work site
3) Energy meter data memory: >4,000 meters with completely computer
management system
4) Automatic voltage and current range selection
5) Measure low voltage and current transformer (CT) ratio online
6) Harmonic analysis (2 - 21 times) at worksite, display harmonic data and
waveform diagram directly
7) Supports bar code reading, automatic interprets the code
8) Automatic measurement and record of ambient temperature
Technical index
1) Accuracy class: 0.05, 0.1
2) Voltage range: 60V, 100V, 200V, 400V
3) Current: direct measure: 1A, 5A, clamp transformer 100A (200A, 500A,
1,000A) is optional
4) Voltage, current and power measurement accuracy: 0.05%
5) Phase measurement accuracy: ±0.05 degree
5) Frequency measurement accuracy: 0.001Hz
6) Voltage supply: AC 80 - 380V, shall obtain electricity from the test loop
directly
7) Power consumption: 15A
8) Working conditions: temperature: -25 - +35°C, relative humidity: 30 - 80%
1. Packing & Shipping
Packed in Plywood case
Deliver the goods within one month after receiving the prepayment
1. We can produce the single phase meter test bench/single phase energy meter instrument/single phase electricity meter test equipment according to client's requirement.
2. Good after-sale service, and good quality.
3. All our products can test all items such as Per IEC and ANSI
1. What is the advantages of your products?
Thanks for your inquiry. Our products' advantages is that all products achieve the standard of IEC and ANSI.
And our goods have been exported to many countries in the world, such as Korea, India, Russion, Pakistan, Vietnam ans so on. The quality is excellent that it wins lot reputation for us.
2. What is the shelf life for your products?
Thanks for your consideration. The shelf life of our products is 3 years. (Our company is responsible for the repairing and maintaining free of charge)
3. What terms of trade your company accept?
Thanks for your consideration. Our company accepts T/T, L/C, Western Union. Thanks for your understanding.
