Home > Consumer Electronics > Display & Accessories > LCD Module > 3.0inch 240*400 ILI9327 Sunlight Readable Lcd Display Planel With MCU Interface
3.0inch 240*400 ILI9327 Sunlight Readable Lcd Display Planel With MCU Interface
US$ 0.1 - 99
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Wilcon
Model Number:
SW030N-SV4
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2.8inch 240*400 R61509V Wide View Angle Lcd Screen Module With MCU InterfaceNegotiableMOQ: 1 Piece -
5inch 800*480 Lvds Interface Outdoor Lcd ModuleUS$ 0.1 - 99MOQ: 1 Piece
-
5inch 800*480 Lcd Lvds Capactive Touch ScreenUS$ 0.1 - 99MOQ: 1 Piece
-
5inch 800*480 Lcd Panel Lvds Interface With Resisitve Touch ScreenUS$ 0.1 - 99MOQ: 1 Piece
-
5inch 800*480 Lvds Interface Lcd Panel Display With LVDS to RGB BoardNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Wilcon
Model Number
SW030N-SV4
Type
Other, TFT, TFT
3.0inch sunlight readable lcd display panel
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 3.0inch sunlight readable lcd display panel |
| 2 | Model number | SW030N-SV4 |
| 3 | Size | 3.0INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | 12:00 |
| 6 | Display scale | 5:3 |
| 7 | Display mode | Transmissive |
| 8 | Resolution | 240*400 |
| 9 | Piexel pitch | 0.162*0.162 |
| 10 | Dimension | 45.04*77*2.3mm |
| 11 | Active area | 38.88*64.8 |
| 12 | Color | 262K |
| 13 | Color arragement | RGB |
| 14 | Interface | MCU |
| 17 | Response time | / |
| 18 | Contrast ratio | / |
| 19 | Brightness | 600cd/m2 |
| 20 | VDD | 2.8V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 3.2V |
| 25 | Current for LED | 90mA |
| 26 | Consumption | / |
| 27 | Module weight | / |
| 28 | Drive IC | ILI9327 |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Hard coationg |
| 31 | Pin number | 40PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | -20----70℃ degrees |
| 2 | Storage Temperature | -30----80℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | RTP is available |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

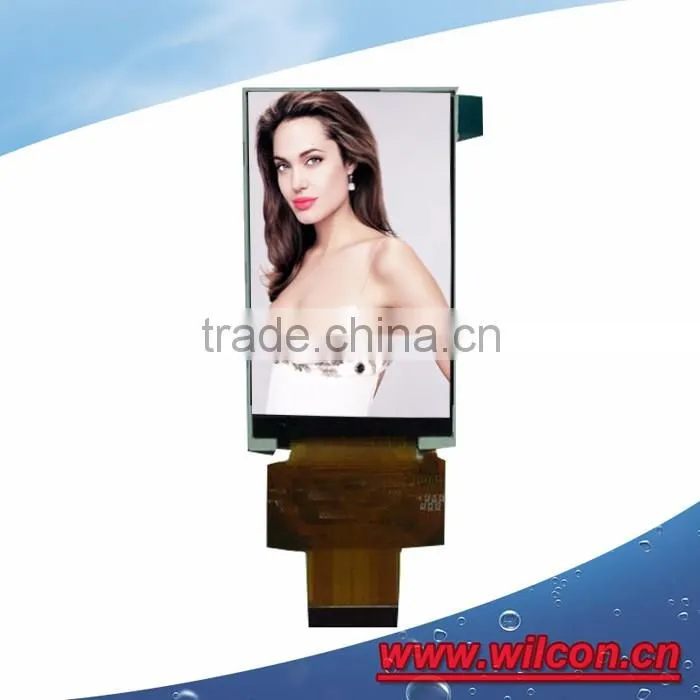

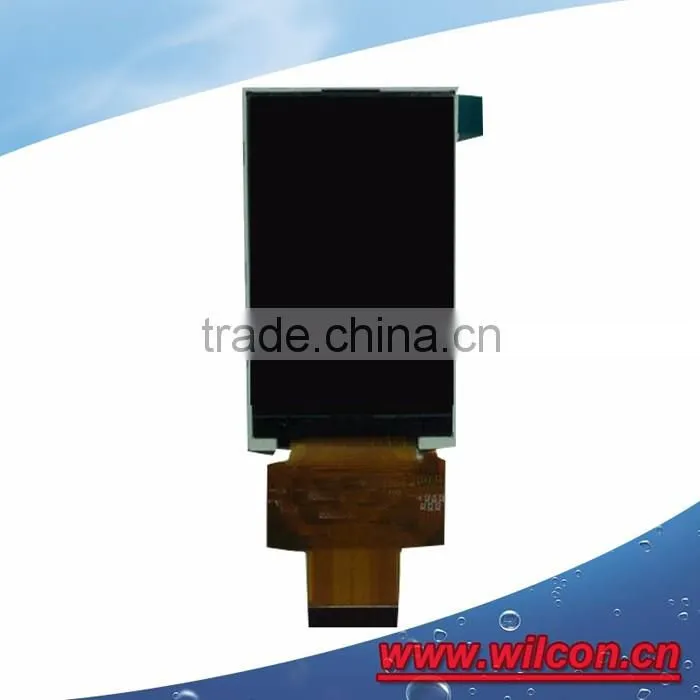

LCD PICS

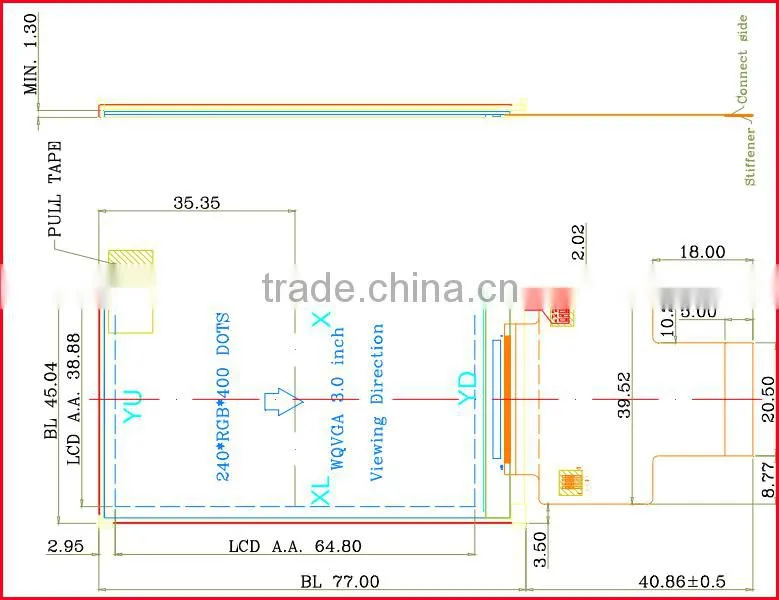

LCD structure
