Home > Consumer Electronics > Display & Accessories > LCD Module > 5inch 800*480 Lvds Interface Lcd Panel Display With LVDS to RGB Board
5inch 800*480 Lvds Interface Lcd Panel Display With LVDS to RGB Board
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Wilcon
Model Number:
SW050N-SV1-L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10.4inch 800*600 250nits RGB Interface Tft Lcd Touch With 5 Wire Resistive Touch ScreenNegotiableMOQ: 1 Piece -
5inch 800*480 RGB Interface 800nits Sunlihgt Readable Panel ScreenNegotiableMOQ: 1 Piece
-
9inch 1000nits 800*480 RGB Interface Sunlight Readable Module DisplayNegotiableMOQ: 1 Piece
-
6.5inch 640*480 RGB Interface 800nits Sunlight Readable Module LcdNegotiableMOQ: 1 Piece
-
5.6inch 640*480 RGB Interface 800nits Sunlight Readable Screen LcdNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Wilcon
Model Number
SW050N-SV1-L
Type
Other, TFT, TFT
5inch 800*480 lvds interface lcd panel display with LVDS to RGB board
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 5.0inch lvds interface lcd panel |
| 2 | Model number | SW050N-SV1-L |
| 3 | Size | 5.0INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | 6:00 |
| 6 | Display scale | 16:9 |
| 7 | Display mode | Transmissive |
| 8 | Resolution | 800*480 |
| 9 | Piexel pitch | 0.045*0.135mm |
| 10 | Dimension | 120.7*76.3*3.1mm |
| 11 | Active area | 108(W)*64.8(H)mm |
| 12 | Color | 262K( lvds interface lcd panel ) |
| 13 | Color arragement | RGB |
| 14 | Interface | lvds |
| 17 | Response time | 25ms |
| 18 | Contrast ratio | 500:1 |
| 19 | Brightness | 250cd/m2 |
| 20 | VDD | 3.3V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 21.7V |
| 25 | Current for LED | 40mA( lvds interface lcd panel ) |
| 26 | Consumption | / |
| 27 | Module weight | / |
| 28 | Drive IC | / |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Hard coationg |
| 31 | Pin number | 40PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions for 5inch lvds interface lcd panel | ||
| 1 | Operature Temperature | -20----70℃ degrees |
| 2 | Storage Temperature | -30----80℃ degrees |
| Part 3:Touch panel for 5inch lvds interface lcd panel | ||
| 1 | Touch | RTP ,CTP is available,depends on customer need |
| Part 4:Lead time for 5inch lvds interface lcd panel | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

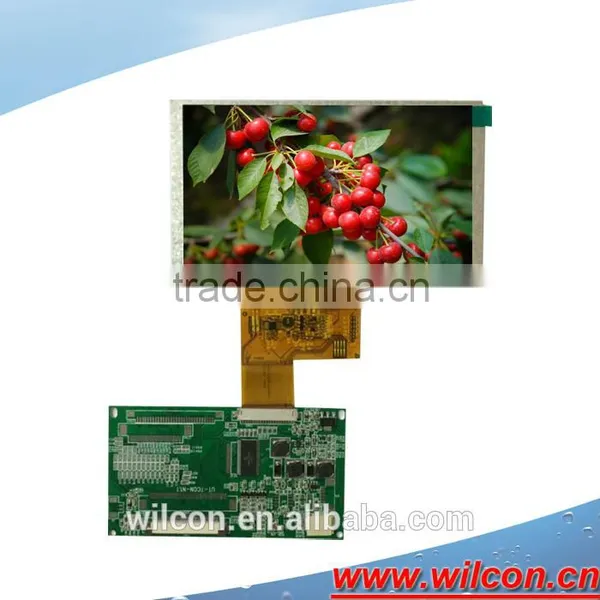

LCD PICS for 5inch lvds interface lcd panel
lvds interface lcd panel structure
BOARD structure
