Home > Consumer Electronics > Display & Accessories > LCD Module > 5inch 800*480 Lcd Lvds Capactive Touch Screen
5inch 800*480 Lcd Lvds Capactive Touch Screen
US$ 0.1 - 99
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Wilcon
Model Number:
SW050N-SV1-L-CTP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5inch 800*480 Lcd Panel Lvds Interface With Resisitve Touch ScreenUS$ 0.1 - 99MOQ: 1 Piece -
5inch 800*480 Lvds Interface Lcd Panel Display With LVDS to RGB BoardNegotiableMOQ: 1 Piece
-
10.4inch 800*600 250nits RGB Interface Tft Lcd Touch With 5 Wire Resistive Touch ScreenNegotiableMOQ: 1 Piece
-
5inch 800*480 RGB Interface 800nits Sunlihgt Readable Panel ScreenNegotiableMOQ: 1 Piece
-
9inch 1000nits 800*480 RGB Interface Sunlight Readable Module DisplayNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Wilcon
Model Number
SW050N-SV1-L-CTP
Type
Other, TFT, TFT
5.0inch lcd lvds capactive touch screen
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 5.0inch lcd module |
| 2 | Model number | SW050N-SV1-L-CTP |
| 3 | Size | 5.0INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | 6:00 |
| 6 | Display scale | 16:9 |
| 7 | Display mode | Transmissive |
| 8 | Resolution | 800*480 |
| 9 | Piexel pitch | 0.045*0.135mm |
| 10 | Dimension | 120.7*76.3*5.38mm |
| 11 | Active area | 108(W)*64.8(H)mm |
| 12 | Color | 262K |
| 13 | Color arragement | RGB |
| 14 | Interface | LVDS |
| 17 | Response time | 25ms |
| 18 | Contrast ratio | 500:1 |
| 19 | Brightness | 300cd/m2 |
| 20 | VDD | 3.3V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 21.7V |
| 25 | Current for LED | 40mA |
| 26 | Consumption | / |
| 27 | Module weight | / |
| 28 | Drive IC | / |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Hard coationg |
| 31 | Pin number | 40PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | -20----70℃ degrees |
| 2 | Storage Temperature | -30----80℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | CTP |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

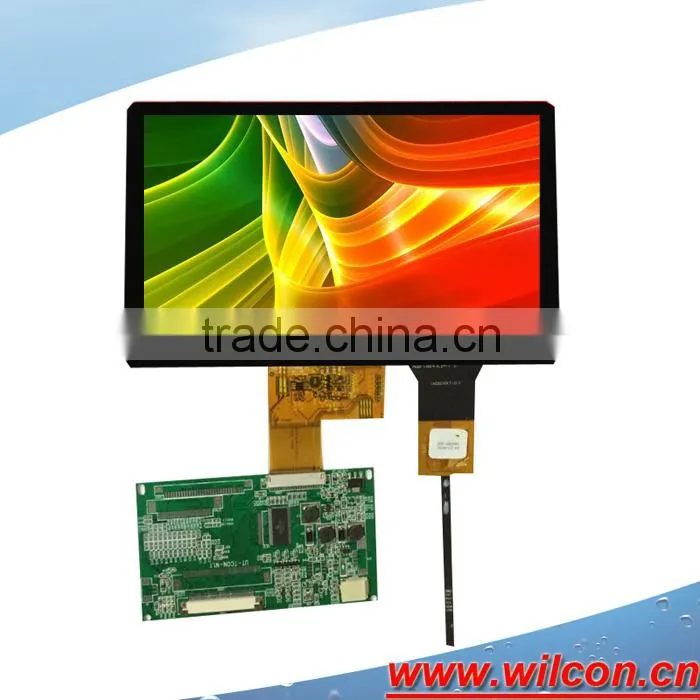

LCD PICS

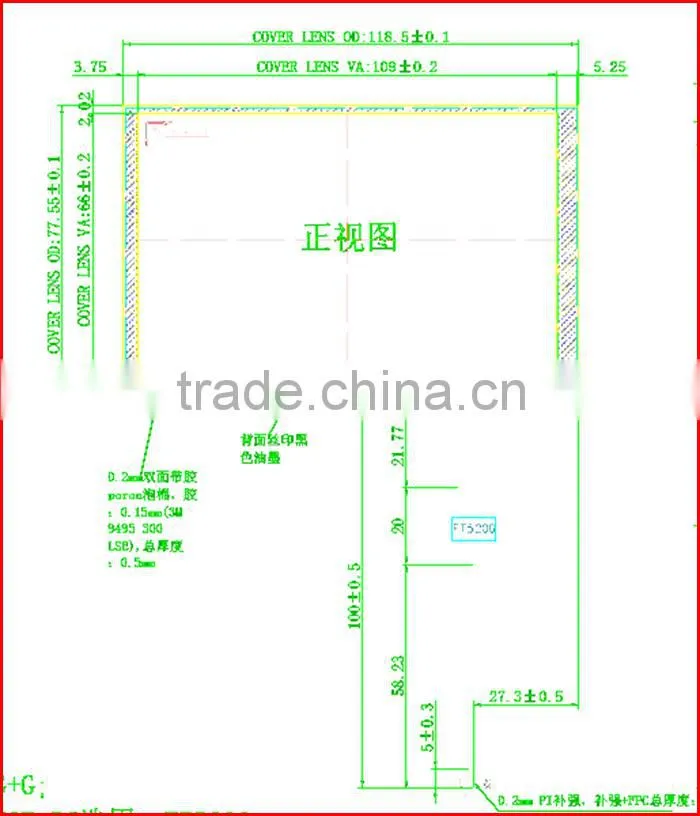

LCD structure
Board structure
Packaging & Shipping
Our Services
Company Information
Send Inquiry to This Supplier
Mrs. Lynn Lee
Overseas sales manag
Shenzhen Wilcon Electronics Technology Co., Ltd.
Shenzhen, Guangdong, China
Business Type
Manufacturer, Trading Company, Agent
Year Established
2015
Factory Size
3,000-5,000 square meters
Total Employees
11 - 50 People
