Specifications
1.The 16ton single reduction axle is customizalbe2. Largest output torque
3.Established 1986 year
4.Europe technology

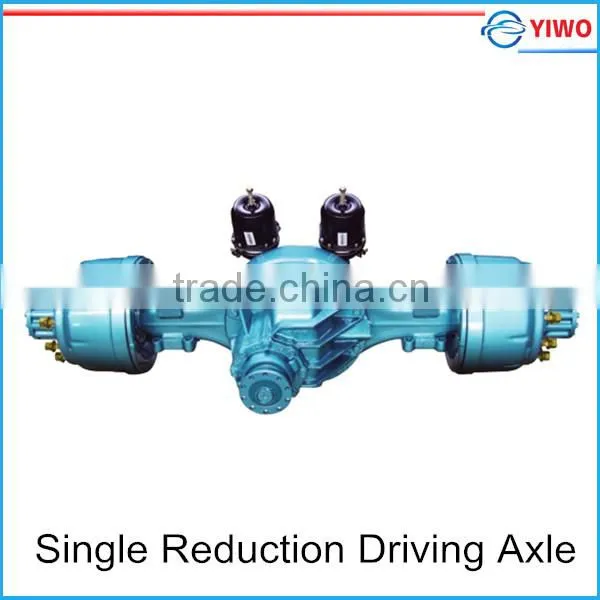

16 ton europe single reduction axle
Our main products are all kinds of truck axle, trailer axle,tractor axle and axle parts.
Advantages:
- The 16 ton Europe single reduction axle is customizalbe
- Established on 1986 year
- Professional technical team
- Advanced equipments
| 499 Single reduction driving axle | ||
| Main technical parameters | ||
| Specifications | Reax axle parameters | |
| Payload (KG) | 16000 | |
| Maximum output torque (N.m) | 60000 | |
| Self-weight (KG) | 800 | |
| Track (mm) | 1828-1867 | |
| Spring pin distance (mm) | 960-1030 | |
| Selected ratio | 3.7;4.11;4.625;5.286 | |
| Diameter of hub bolt distributed cicular (mm) | Φ335 | |
| Brake specification-diameter(mm)*width(mm) | Φ410*220 | |
| Suitable rim | 8.5-20/8.0-20 | |
| Suitable tire | 12.00-20/11.00-20 | |
| Minimum clearance to ground (mm) | 265 | |
| 499 single reduction axle 485 a upgraded single reduction axle by 20% increased output output torque ,high transmission efficiency and strong interchangeability and versatility with 485 axle ,and currently it is one of the most largest torque-output axles in China. | ||
|
3.5ton/4.5ton/5.5ton/6.5ton/ 7.5ton dis braked front axle assembly |
9 Ton front drum braked axle assembly
|
13 t dingle reduction driving axle for high power heavy duty truck
|
|
16t Single reduction driving axle ; China largest torque output: 60000 |
13 ton Single reduction tandem driving axle; Press welding housing and cast steel is optional
|
13ton or 16ton double reduction tandem driving axle 13 ton axle is press welding housing;16 ton is cast steel housing |
|
The bus axle has small noise and smooth brake , be used on 9-11m long bus |
32 ton suspension for heavy duty truck, engineering heavy truck
|
26 ton rear suspension assy for heavy duty engineering vehicle |
a
For more truck axle , please visit : https://img13.fr-trading.com/productgrouplist-222106055/Truck_Axle.html
Warranty
Shanghai YIWO will provide our clients a Claim Documents before cooperate.During the warranty period,
in case of material or workmanship has occurred with spare sparts in normal operation, the defective part
will be repaired or replaced free of charge, and the parts will be delivered with next batch goods.
Spare Parts
Shanghai YIWO will provide our clients a documents on axle parts before produce. And provide a
part price list for purchase.
Installation and Maintenance
Shanghai YIWO will provide Clients the instruction manual on installation and Maintenance.
If necessary, we will send technicist to site guidance.
Technical Service
We have strong after-sale technical service team to help you solve all problem during you use our products.
