Help Center16 Ton 6x4 Tipper and Dumper and Heavy Duty Truck Europe Double Reduction Hub Reduction Truck Rear Driving Axle
Related Products
-
13 Ton Heavy Duty Truck Hub Reduction Axle AssemblyUS$ 1 - 2,000MOQ: 10 Pieces -
Heavy Duty Engineering Vehicle 26 Ton Suspension AssemblyUS$ 1 - 2,000MOQ: 10 Pieces
-
Heavy Duty Engineering Vehicle 26 Ton Suspension Axle AssemblyUS$ 1 - 2,000MOQ: 10 Pieces
-
Light Weight Truck Suspension Highway Truck Suspension Dumper SuspensionUS$ 1 - 2,000MOQ: 10 Pieces
-
Highway and Engineering Heavy Duty Vehicle SuspensionUS$ 1 - 2,000MOQ: 10 Pieces
Specifications
1.high quality truck driving axle2.Established 1986 year
3.Professional technical team
4.Advanced Eauipments

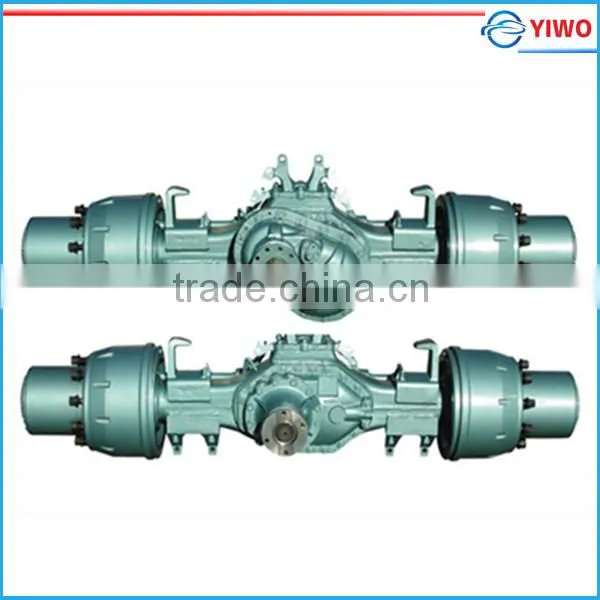

16 ton truck driving axle
Our main products are all kinds of truck axle, trailer axle,tractor axle and axle parts.
Advantages:
- The 16 ton Europe truck driving axle is customizalbe
- Established on 1986 year
- Professional technical team
- Advanced equipments
| LC300 Double reduction driving axle | ||
| Main technical parameters | ||
| Specifications | Middle axle parameters | Rear axle parameters |
| Payload (KG) | 16000 | 16000 |
| Maximum output torque (N.m) | 50000 | 50000 |
| Self-weight (KG) | 1000 | 840 |
| Track (mm) | 1840-1880 | 1840-1880 |
| Spring pin distance (mm) | 1010-1040 | 1010-1040 |
| Selected ratio | 3.866;4.26;4.769;5.26;5.45;5.921;6.733;8.8 | 3.866;4.26;4.769;5.26;5.45;5.921;6.733;8.8 |
| Diameter of hub bolt distributed cicular (mm) | Φ335 | Φ335 |
| Brake specification-diameter(mm)*width(mm) | Φ410*220 | Φ410*220 |
| Suitable rim | 8.50-20/8.0-20 | 8.5-20/8.0-20 |
| Suitable tire | 12.00-20/11.00-20 | 12.00-20/11.00-20 |
| Minimum clearance to ground (mm) | 290 | 290 |
| LC300 Double reduction driving axle is developed as a heavy duty driving axle on the introduction of Europe technology,it has fully considered the heavy duty dumpers working enviroments and serious overload situations during the design ,which makes it available with advantages of high payload and good reliability. It can apply to highway truks with press-welding axle housing. It can apply to highway trucks with press-welding axle housing. | ||
|
3.5ton/4.5ton/5.5ton/6.5ton/ 7.5ton dis braked front axle assembly |
9 Ton front drum braked axle assembly
|
13 t dingle reduction driving axle for high power heavy duty truck
|
|
16t Single reduction driving axle ; China largest torque output: 60000 |
13 ton Single reduction tandem driving axle; Press welding housing and cast steel is optional
|
13ton or 16ton double reduction tandem driving axle 13 ton axle is press welding housing;16 ton is cast steel housing |
|
The bus axle has small noise and smooth brake , be used on 9-11m long bus |
32 ton suspension for heavy duty truck, engineering heavy truck
|
26 ton rear suspension assy for heavy duty engineering vehicle |
a
For more truck axle , please visit : https://img13.fr-trading.com/productgrouplist-222106055/Truck_Axle.html
Warranty
Shanghai YIWO will provide our clients a Claim Documents before cooperate.During the warranty period,
in case of material or workmanship has occurred with spare sparts in normal operation, the defective part
will be repaired or replaced free of charge, and the parts will be delivered with next batch goods.
Spare Parts
Shanghai YIWO will provide our clients a documents on axle parts before produce. And provide a
part price list for purchase.
Installation and Maintenance
Shanghai YIWO will provide Clients the instruction manual on installation and Maintenance.
If necessary, we will send technicist to site guidance.
Technical Service
We have strong after-sale technical service team to help you solve all problem during you use our products.
