Home > Transportation > Trailer Parts > Trailer Suspension > 13 Ton Europe Super Heavy Duty Driving Heavy Duty Driving Axles for High Power Heavy Duty Trucks

13 Ton Europe Super Heavy Duty Driving Heavy Duty Driving Axles for High Power Heavy Duty Trucks

13 Ton Europe Super Heavy Duty Driving Heavy Duty Driving Axles for High Power Heavy Duty Trucks thumbnail-1
13 Ton Europe Super Heavy Duty Driving Heavy Duty Driving Axles for High Power Heavy Duty Trucks photo-1
US$ 1 - 2,000 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Parts:
Trailer Axles
OEM No.:
heavy duty driving axle
Max Payload:
13 ton
Contact Supplier Request Quote Chat Now
Shanghai YIWO Vehicle Parts And Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Parts Trailer Axles
OEM No. heavy duty driving axle
Max Payload 13 ton
Size 1847 mm
Place of Origin Shandong, China
Brand Name YIWO
Model Number heavy duty driving axle

Specifications

1.The 13ton heavy duty driving axle is customizalbe
2. Large output torque
3.Established 1986
4.Europe technology

Product Description

13 ton Europe super heavy duty driving heavy duty driving axles for high power heavy duty trucks

13 ton europe  heavy duty driving axle



Our main products are all kinds of truck axle, trailer axle,tractor axle and axle parts.


Advantages:

  1. The 13 ton Europe heavy duty driving axle is customizalbe
  2. Established on 1986 year
  3. Professional technical team
  4. Advanced equipments

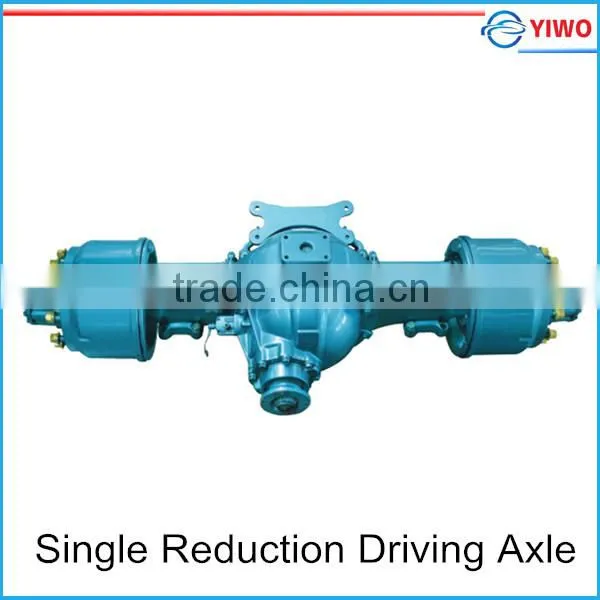

485 Single reduction driving axle
Main technical parameters
Specifications Rear axle parameters
Payload (KG) 13000
Maximum output torque (N.m) 50000
Self-weight (KG) 825
Track (mm) 1804-1867
Spring pin distance (mm) 950-1025
Selected ratio 2.846;3.083;3.364;3.7;4.11;4.625;5.286
Diameter of hub bolt distributed cicular (mm) Φ335
Brake specification-diameter(mm)*width(mm) Φ410*220
Suitable rim 8.5-20/8.0-20
Suitable tire 12.00-20/11.00-20
Minimum clearance to ground (mm) 265
485 single reduction driving axle is a self-developed super heavy duty driving axle on the basis of Europe technology absorption,with the advantages of large output torque,good brake performance,being optional of ABS,brake gap automatic adjusting arm,wheel differential lock ,and it applies to high-power heavy duty trucks.



Tuck axle show

13 ton Europe super heavy duty driving heavy duty driving axles for high power heavy duty trucks

3.5ton/4.5ton/5.5ton/6.5ton/

7.5ton dis braked front axle

assembly

13 ton Europe super heavy duty driving heavy duty driving axles for high power heavy duty trucks

9 Ton front drum braked axle assembly





13 ton Europe super heavy duty driving heavy duty driving axles for high power heavy duty trucks

13 t dingle reduction driving axle for high power heavy duty truck



13 ton Europe super heavy duty driving heavy duty driving axles for high power heavy duty trucks

16t Single reduction driving

axle  ;   China largest torque output: 60000

13 ton Europe super heavy duty driving heavy duty driving axles for high power heavy duty trucks

13 ton Single reduction tandem driving axle; Press welding housing and cast steel is optional



13 ton Europe super heavy duty driving heavy duty driving axles for high power heavy duty trucks

13ton or 16ton double reduction tandem driving axle

13 ton axle is press welding housing;16 ton is cast steel housing

13 ton Europe super heavy duty driving heavy duty driving axles for high power heavy duty trucks

The bus axle has small noise and smooth brake , be used on 9-11m long bus

13 ton Europe super heavy duty driving heavy duty driving axles for high power heavy duty trucks

32 ton suspension for heavy duty truck, engineering heavy truck



13 ton Europe super heavy duty driving heavy duty driving axles for high power heavy duty trucks

26 ton rear suspension assy for heavy duty engineering vehicle

a

For more truck axle , please visit : https://img13.fr-trading.com/productgrouplist-222106055/Truck_Axle.html





Axle Quality Control

13 ton Europe super heavy duty driving heavy duty driving axles for high power heavy duty trucks







Axle Production Line

13 ton Europe super heavy duty driving heavy duty driving axles for high power heavy duty trucks



After-Sales Service

Warranty

Shanghai YIWO will provide our clients a Claim Documents before cooperate.During the warranty period,

in case of material or workmanship has occurred with spare sparts in normal operation, the defective part

will be repaired or replaced free of charge, and the parts will be delivered with next batch goods.

Spare Parts

Shanghai YIWO will provide our clients a documents on axle parts before produce. And provide a

part price list for purchase.

Installation and Maintenance

Shanghai YIWO will provide Clients the instruction manual on installation and Maintenance.

If necessary, we will send technicist to site guidance.

Technical Service

We have strong after-sale technical service team to help you solve all problem during you use our products.





Main Clients

13 ton Europe super heavy duty driving heavy duty driving axles for high power heavy duty trucks



13 ton Europe super heavy duty driving heavy duty driving axles for high power heavy duty trucks
