Help Center13 Ton Europe Tandem Driving Axles for Highway Vehicle and Engineering Vehicle
Related Products
-
13 Ton Europe Super Heavy Duty Driving Heavy Duty Driving Axles for High Power Heavy Duty TrucksUS$ 1 - 2,000MOQ: 10 Pieces -
16 Ton Europe China Largest Output Torque Single Reduction AxleUS$ 1 - 2,000MOQ: 10 Pieces
-
13 Ton Europe High Transmission and Lighter Weight Double Rear Driving AxleUS$ 1 - 2,000MOQ: 10 Pieces
-
13 Ton Europe Heavy Duty Truck Rear Driving AxleUS$ 1 - 2,000MOQ: 10 Pieces
-
13 Ton/16 Ton 6x4 Truck or Trailer Truck Europe Double Reduction Hub Reduction Truck Rear Driving AxleUS$ 1 - 2,000MOQ: 10 Pieces
Specifications
1.The 13ton driving axles is customizalbe2. Press-Welding axle for highway
3.Established 1986
4.Cast steel axle for engineer

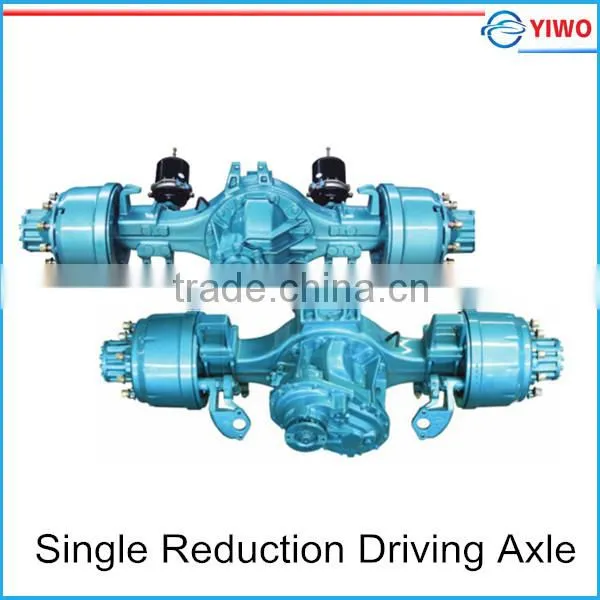

13 ton europe tandem driving axle
Our main products are all kinds of truck axle, trailer axle,tractor axle and axle parts.
Advantages:
- The 13 ton Europe tandem driving axle is customizalbe
- Established on 1986 year
- Professional technical team
- Advanced equipments
| 469 Single reduction driving axle | ||
| Main technical parameters | ||
| Specifications | Middle axle parameters | Reax axle parameters |
| Payload (KG) | 13000 | 13000 |
| Maximum output torque (N.m) | 45000 | 45000 |
| Self-weight (KG) | 940 | 820 |
| Track (mm) | 1847 | 1847 |
| Spring pin distance (mm) | 1035 | 1035 |
| Selected ratio | 2.846;3.083;3.364;3.7;4.11;4.625;5.286;6.166 | 2.846;3.083;3.364;3.7;4.11;4.625;5.286;6.166 |
| Diameter of hub bolt distributed cicular (mm) | Φ335 | Φ335 |
| Brake specification-diameter(mm)*width(mm) | Φ410*220 | Φ410*220 |
| Suitable rim | 8.00-20 | 8.00-20 |
| Suitable tire | 11.00-20 | 11.00-20 |
| Minimum clearance to ground (mm) | 252 | 252 |
| 469 single reduction driving axle is a heavy single reduction driving axle introduction of the latest technology developed in Europe,it has the advantages of compact structure ,light weight,high transfer efficiency and obviously oil saving.Press-welding axle applies to highway heavy duty trucks. Cast-steel axle applise to engineering heavy duty vehicles. | ||
|
3.5ton/4.5ton/5.5ton/6.5ton/ 7.5ton dis braked front axle assembly |
9 Ton front drum braked axle assembly
|
13 t dingle reduction driving axle for high power heavy duty truck
|
|
16t Single reduction driving axle ; China largest torque output: 60000 |
13 ton Single reduction tandem driving axle; Press welding housing and cast steel is optional
|
13ton or 16ton double reduction tandem driving axle 13 ton axle is press welding housing;16 ton is cast steel housing |
|
The bus axle has small noise and smooth brake , be used on 9-11m long bus |
32 ton suspension for heavy duty truck, engineering heavy truck
|
26 ton rear suspension assy for heavy duty engineering vehicle |
a
For more truck axle , please visit : https://img13.fr-trading.com/productgrouplist-222106055/Truck_Axle.html
Warranty
Shanghai YIWO will provide our clients a Claim Documents before cooperate.During the warranty period,
in case of material or workmanship has occurred with spare sparts in normal operation, the defective part
will be repaired or replaced free of charge, and the parts will be delivered with next batch goods.
Spare Parts
Shanghai YIWO will provide our clients a documents on axle parts before produce. And provide a
part price list for purchase.
Installation and Maintenance
Shanghai YIWO will provide Clients the instruction manual on installation and Maintenance.
If necessary, we will send technicist to site guidance.
Technical Service
We have strong after-sale technical service team to help you solve all problem during you use our products.
