Specifications
1.The 9 ton non-drive disc braked steering front axle is customizalbe2.Established on 1986 year
3.Professional technical team

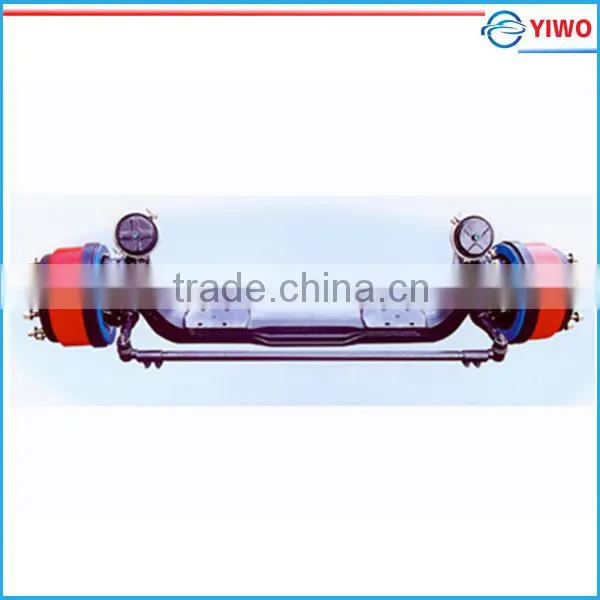

9 ton non-drive disc braked front axle
| 9 Ton front axle | ||
| Main technical parameters | ||
| Specifications | 90B | 95A |
| Payload (KG) | 9000 | 9000 |
| Max.steering angle of front inner wheel | 47° | 42° |
| Self-weight (KG) | 520 | 540 |
| Track (mm) | 2028 | 2050 |
| Leaf spring center distance (mm) | 860-900 | 850-890 |
| Kingpin centre (mm) | 1748 | 1790 |
| Gap of front axle (mm) | 127 | 127 |
| Diameter of hub bolt distributed cicular (mm) | Φ335 | Φ335 |
| Brake specification | Φ420*175 | Φ420*175 |
| Kingpin inclination angle (mm) | 6.75° | 6° |
| camber angle | 0.25° | 1° |
| Toeing-in (mm) | 0-2 | 0-2 |
| The front axle apply to all types of bus, truck, and are optional with ABS, disc brake and air suspension | ||
Advantages:
- The9 ton non-drive disc braked steering front axle is customizalbe
- Established on 1986 year
- Professional technical team
- Advanced equipments
| Type | 9 ton non-drive disc braked front axle |
| Advantage | The China earliest Axle poducer with higest technology |
| Material | Steel |
| Color | Black or according to your requests |
| MOQ | 10 Pieces |
| Packaging | Naked Packaging or as per customers' requests |
| Delivery | Generally 15-25 days or according to your order quantity |
| Payment | T/T, L/C, West Union |
| Track | Optional Track Lengths available |
| Alternative Parts | Air Brake Chamber & ABS |
| Marks | Logo and words can be printed on the Axle as your requirement |
| Certification | ISO/TS16949, ISO9001 |
| Years in Axle | Since 1986 YEAR |
| Market | Russia,Chile,Malaysia, US, Singapore, Canada, Indonesia, South Africa, Peru etc |
|
3.5ton/4.5ton/5.5ton/6.5ton/ 7.5ton dis braked front axle assembly |
9 Ton front drum braked axle assembly
|
13 t dingle reduction driving axle for high power heavy duty truck
|
|
16t Single reduction driving axle ; China largest torque output: 60000 |
13 ton Single reduction tandem driving axle; Press welding housing and cast steel is optional
|
13ton or 16ton double reduction tandem driving axle 13 ton axle is press welding housing;16 ton is cast steel housing |
|
The bus axle has small noise and smooth brake , be used on 9-11m long bus |
32 ton suspension for heavy duty truck, engineering heavy truck
|
26 ton rear suspension assy for heavy duty engineering vehicle |
a
For more truck axle , please visit : https://img13.fr-trading.com/productgrouplist-222106055/Truck_Axle.html
About Us
Shanghai YIWO Part&Equipment Co.,Ltd, engages in manufacturing Truck axles & Trailer axles & Tractor axles and axle parts since 1986 years, having achieved ISO/TS16949 Accreditation in 2002.
Now Shanghai YIWO is producing over 200 sorts axles, which are well known home and abroad.
Main products includes:Lightweight truck axle & Midium truck axle & heavy duty truck axle & off road wide body truck axle & BPW trailer axle & Fuwa trailer axle & big horsepower tractor axle & axle parts & Air Suspension & Single Point Suspension (Bogie / Boogie)& Suspension Parts and so on .
All the Above axle including front axle & rear drive axle & rear non drive axle & Suport axle & steering axle and so on.
We also Produce off road mining dump haul truck, including 40 ton, 60 ton ,70 ton mining haul truck.Now our mining haul truck occupy 50% China Market.
1. Shanghai YIWO is Supplier of China best brand truck, Like FAW,FOTON,SINOTTUK,Beiben,JAC and so on.
2. Shanghai YIWO OEM factory All kinds of Truck axles & Trailer axles & Tractor axles and axle parts
3. Any requests or drawings are welcome.
Sincerely do expect to enter into business relations with you soon.
