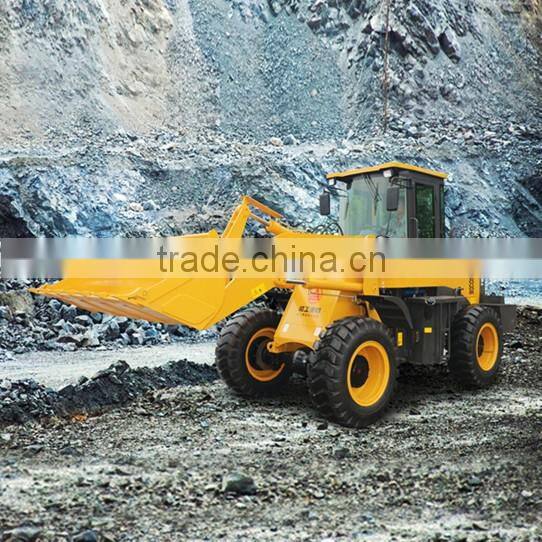

Small Wheel Loader T936L
* Yunnei 4102 turbo engine,
* 280 gearbox and converter ,
* 16/70-20 tire,
* 3.3m dump height
| Item | T936L |
| Loading Capacity(kg) | 1800kg |
| Capacity(m³) | 0.95m³ |
| Operating weight(kg) | 5200kg |
| Max Tractive Force(Kn) | 30KN |
| Dumping Height(mm) | 3500mm |
| Dumping Distance(mm) | 1100mm |
| Grade ability(%) | 35% |
| Min Turning Radius(mm) | 5400mm |
| Dimensions | |
| Length(mm) | 6050mm |
| Width(mm) | 2200mm |
| Height(mm) | 2960mm |
| Wheel base(mm) | 2510mm |
| Tread(mm) | 1575mm |
| The minimum clearance | 340mm |
| Engine | |
| Manufacturer | Yunnei Turbo |
| Model | YN38GBZ |
| Power(Kw) | 76KW |
| Transmission | |
| Converter Tyre | 280gearbox and converter |
| Low speed(km/h) | 0~11Km/h |
| High Speed(km/h) | 0~27Km/h |
| Service Brake | air brake |
| Axles | ZOT |
| Battery | 6-QW-100MF |
| Cabin | Luxury |
| Chair | Luxury |
| Steering System | |
| Type | Full Hydraulic steering |
| Steering Angle(°) | ±33° |
| Hydraulic system | |
| System Pressure(Mpa) | 16MPa |
| Total Time(s) | ≤9s |
| Oil Tank | |
| Fuel Tank(L) | 94L |
| Hydraulic Oil Tank(L) | 61L |
| Tyre | |
| Model | 16/70-20 |
| Front tyre Pressure(Mpa) | 0.33MPa |
| Rear tyre Pressure(Mpa) | 0.30MPa |
What can we do for you?
Diversified Products:
Our products covered most of engineering machinery, main products are wheel loader, backhoe loader, road roller, motor grader.
ho
Rich sales experience:
We have rich sales experience. This year we exported 500 sets Russia, Brazil, Australia, Libya, Nigeria and other countries and regions.
Perfect factory management system:
We have our own factory and supporting plant, could provide good technical support, parts support, stable supply.
Competitiveprice:
We will provide competitive prices base on your purchases quantity.
Company brief introduction
Shandong ZOT Machinery Co., LTD is specialized in research and development of wheel loader, backhoe loader, road loader, and motor grader. Relying on SDLG group over forty years engineering machinery manufacturing mature experience and the support of comprehensive and leading product research and development system, ZOT focus on the small units, high ratio of mechanical engineering research as well as providing simple solutions for clients.
ZOT products are exported to Russia, Brazil, Australia, Libya, Nigeria and other countries and regions.
