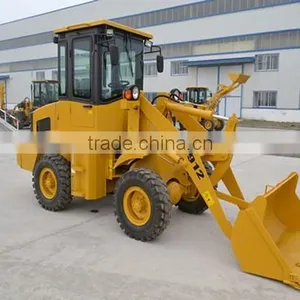

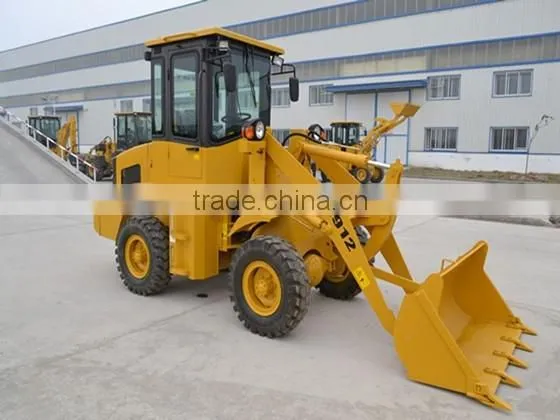

Help Center1.8t Wheel Loader
Related Products
Specifications
Front Loader, Wheel Loader
YUCHAI/DEUTZ/CUMMINS engine,Final reduce, shaft drive,16/70-20tire,articulated chassis frame,double steering oil cylinder,2.61m dump height
Item |
Specifications |
|
Loading Capacity |
kg |
1800 |
Bucket Capacity |
m3 |
1 |
Max. Dumping Height |
mm |
2610 |
Dumping Distance |
mm |
920 |
Boom Lifting Time |
s |
5.2 |
Bucket Dumping Time |
s |
3.6 |
Max. Breakout Force |
kN |
58 |
Low Shift Speed |
km/h |
10 |
High Shift Speed |
km/h |
27 |
Min. Turning Radius |
mm |
4850 |
Dimension (L*W*H) |
mm |
5800*2120*2895 |
Bucket Width |
mm |
2120 |
Axle Base |
mm |
2260 |
Wheel Base |
mm |
1630 |
Min. Ground Clearance |
mm |
290 |
Machine Weight |
kg |
6120 |
Diesel Engine/Model |
YC4108/ |
|
YUCHAI/DEUTZ/ |
||
Rated Power |
kw |
60 |
Steering Pump |
BZZ-320 |
|
Working Hydro. Pressure |
mpa |
17.5 |
Working Pump |
CBGJA2050 |
|
Multiple Valve |
ZL20DL1-02 |
|
Transmission |
Trans.Ass'y |
|
Driving Axle |
Final Raduce |
|
Tyres |
16/70-20 |
|
Braking System |
Air Press Oil |
