Help CenterSmall Wheel Loader T926 With Pallet Fork, Joystick for Sale
Related Products
MINI WHEEL LOADER WITH GOOD QUALITY AND PRICE
1.Shandong ZOT Machinery Co.,LTD is specialized in the small scraper machinery, mining machinery, compaction machinery and paving machinery research and development, manufacturing and sales. Relying on over forty years engineering machinery manufacturing mature experience and the support of comprehensive and leading product research and development system, ZOT focus on the small units, high ratio of mechanical engineering research as well as providing simple solutions for clients.
2. The company will always put optimizing structure, improving the products quality and the reliability on the first place and implement the whole course quality control. The stability of the supporting system and strict parts access and the delivery inspection standards ensure the product quality and the function steadily improved, which has been widely recognized by customers both at home and abroad. ZOT products are exported to Russia, Brazil, Australia, Nigeria and other countries and regions. In the constant development and expansion, the company according to the features of customer requirements and years of market validation, timely introduced a new type of T series loader, G series loader, Backhoe loader, Road roller, Motor grader, Excavator, Paver, Bulldozer, Forklift, Truck crane, Rim, Valve, etc.
| ITEM | T912 | T916 | T918 | T920 | T926 | |
| Loading Capacity | kg | 1200 | 1600 | 1800 | 2000 | 2000 |
| Bucket Capacity | m3 | 0.60 | 0.80 | 0.90 | 1.00 | 1.00 |
| Max.Dumping Height | mm | 2700 | 2800 | 2800 | 3200 | 3200 |
| Dumping Distance | mm | 700 | 800 | 800 | 750 | 800 |
| Boom Lifting Time | s | 7 | 7 | 7 | 7 | 7 |
| Bucket Dumping Time | s | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| Max.Breakout Force | KN | 20 | 30 | 30 | 38 | 38 |
| Low Shift Speed | km/h | 4 | 4 | 4 | 4 | 4 |
| High Shift Speed | km/h | 18 | 24 | 24 | 24 | 24 |
| Min. Turning Radius | m | 4.2 | 4.5 | 4.5 | 4.5 | 4.5 |
| Dimension | ||||||
| Length(mm) | mm | 4880 | 4600 | 4800 | 5530 | 5385 |
| Wideth(mm) | mm | 1600 | 1650 | 1650 | 1850 | 1850 |
| Height(mm) | mm | 2700 | 2650 | 2700 | 2800 | 2670 |
| Bucket Wideth | mm | 1300 | 1550 | 1550 | 1850 | 1850 |
| Axle Base | mm | 2080 | 1900 | 1930 | 2095 | 2335 |
| Wheel Base | mm | 1320 | 1330 | 1360 | 1495 | 1500 |
| Min.ground clearance | mm | 300 | 230 | 270 | 260 | 260 |
| Machine Weight | kg | 2440 | 2650 | 2760 | 3480 | 3680 |
| Diesel Engine/Model | ZJD32 | 4DW81-37 | 4DW91-45 | ZHBG41 | ZHBG41 | |
| JAC | XICHAI | XICHAI | WEICHAI | WEICHAI | ||
| Rated Power | kw | 23.5 | 33 | 37 | 47 | 47 |
| Start Model | Electrical | Electrical | Electrical | Electrical | Electrical | |
| Steering Pump | BZZ-200 | BZZ-200 | BZZ-200 | BZZ-200 | BZZ-200 | |
| Working Hydro.Pressure | mpa | 16 | 16 | 16 | 16 | 16 |
| Working Pump | CD-FC25 | CB-FC40 | CB-FC40 | CB-FC40 | CB-FC40 | |
| Multiple Valve | ZL15.2 | ZL15.2 | ZL15.2 | ZL15.2 | ZL15.2 | |
| Gearbox | Six Shafts | Six Shafts | Six Shafts | Six Shafts | Trans.Ass'y | |
| Driving Axle | ISUZU | ISUZU | ISUZU | Final Raduce | Final Raduce | |
| Tyres | 8.25-16 | 8.25-16 | 14.00-16 | 16/70-16 | 16/70-20 | |
| Braking systerm | Oil | Oil | Oil | Air Press Oil | Air Press Oil | |
18months or 1800 working hours whichever comes first

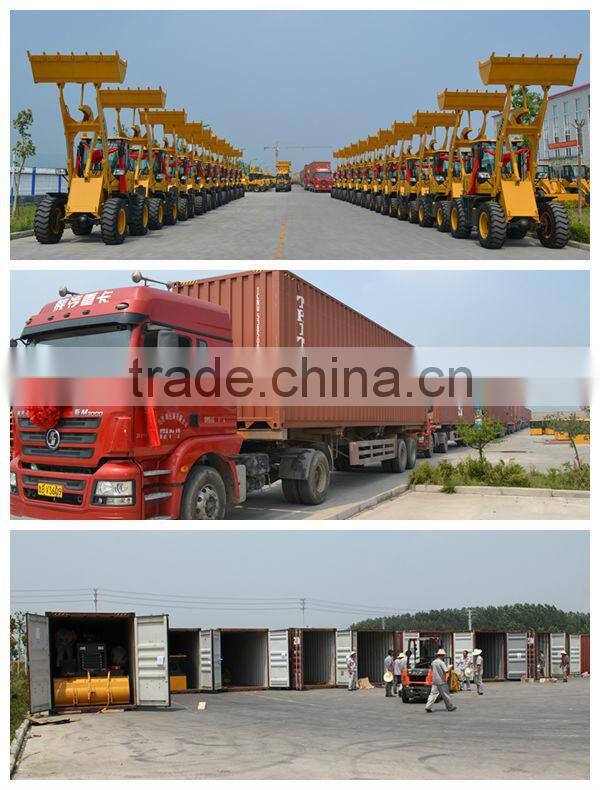

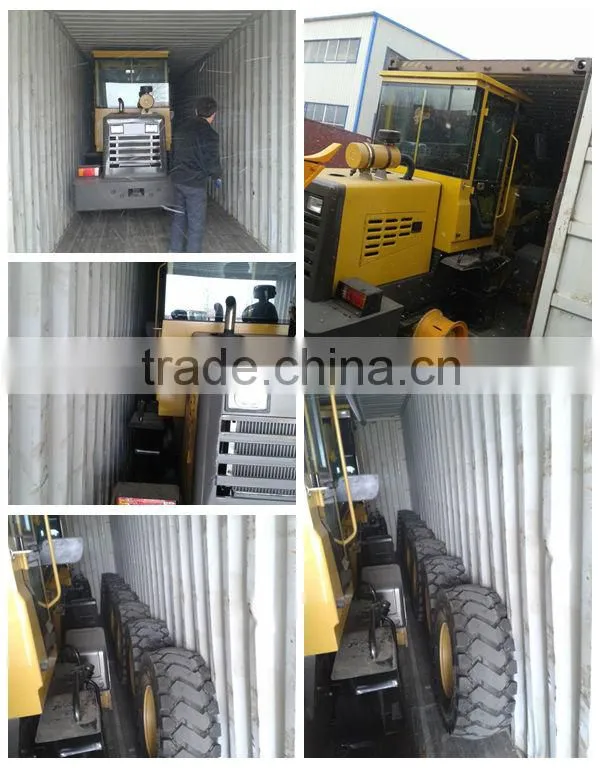

2units/ 40HQ container
1. It is equipped with the engine meeting the requirements of China II emission standard, with strong power, low noise and reliable performance.
2. Single-stage three-element hydraulic torque converter and axis-fixed transmission case are used, with high reliability and are convenient for maintenance; SDLG reinforced drive axle is configured, with large bearing capacity, long service life and high reliability.
3. Load-sensing full hydraulic steering system is used, with light and quick steering and reliable energy saving properties; Pilot-control working device hydraulic system is used, with high operating efficiency and is light and easy to operate.
4. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing capacity, reasonable entire-machine load distribution and good stability.
5. New steel structure cab is adopted, which ensures wide vision, a larger operation space,good sealing performance; the air conditioner can be installed optionally, which ensures good comfort.
6. Electrical system adopts high-end and mature electrical apparatus element, which makes it stable and reliable.
7. Engine hood is designed with large door, which makes it more convenient for repair and maintenance.
8. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high coefficient of fullness and high reliability.
II. What can be used for the terms of payment?
Usually, TT and LC would be taken.
III. How about the after-sale service.?
There is a long period as 18 months of warranty for Beston's clients, and fully technical support by engineers.
