China mini wheel excavators 6ton,7ton,8ton,10ton (19)
- 2000 Unit / Units per Month
- Qingdao
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | ZOT | Model Number: | ZE906 |
Condition: | New | Moving Type: | Wheel Excavator | Operating Weight: | 6000kg |
Bucket capacity: | 0.4 | Maximum Digging Height: | 6590mm | Maximum Digging Depth: | 4721mm |
Machine Weight: | 5670kg | Max Digging Radius: | 67560mm | Rated Speed: | 32km/h |
Certification: | ISO CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

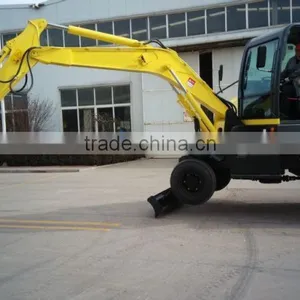

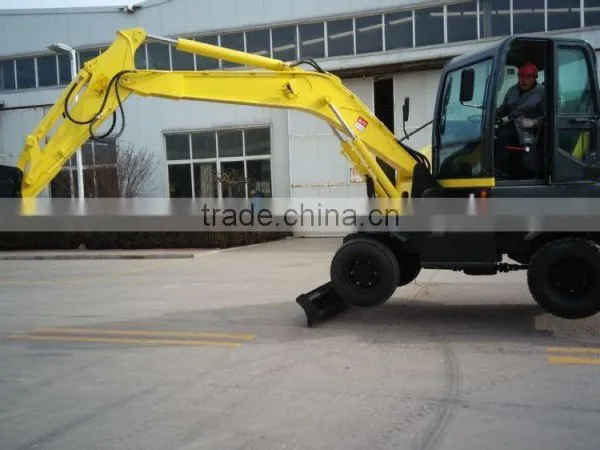

6ton,7ton,8ton,10ton wheel excavators
ABOUT US:
Shandong ZOT Machinery Co.,LTD. which is specialized in the small scraper machinery, mining machinery, compaction machinery and paving machinery research and development, manufacturing and sales. Relying on SDLG group over forty years engineering machinery manufacturing mature experience and the support of comprehensive and leading product research and development system, ZOT focus on the small units, high ratio of mechanical engineering research as well as providing simple solutions for clients.
ZOT machinery is the professional manufacturer, who carries an extensive range of new heavy duty equipments and agricultural machinery, such as road rollers, motor graders, crawler excavators, bulldozers, wheel loaders, forklifts, and wheel tractors with years of experience, strong R&D and engineering capabilities.
Product- advantages:
Engine:
XinChai(A498BPG)- standard form 40Kw/2300rpm &compression-adding type 48Kw/2300rpm with low fuel consumption, low noise and large power reserve
Primary pump:
Kawasaki main pumps from Japan, KYB pilot pump or domestic pumps
Master valve:
imported from South Korea with the inner confluence function of boom, arm and bucket& the domestic 183military hydraulic valve with the outer confluence function
Rotary bearing:
full sealed, waterproof, dust and pollution prevention
Product- specifications:
PERFORMANCE PARAMETER | ||
MAIN PARAMETER | ||
OPERATING WEIGHT | Kg | 7200 |
BUCKET CAPACITY | m³ | 0.3 |
RATED POWER | Kw/rpm | 48/2300 |
MAX.TORQUE | N.m/rpm | 230/1800 |
OPERATING PRESSURE | Mpa | 22 |
RATED FLOW | L/min | 55X2 |
PUMP DELIVERY | ml/r | 25X2 |
TRAVELING SPEED | Km/h | 30 |
SWING SPEED | rpm | 9.2 |
MAX.TRACTION FORCE | KN | 43.2 |
BUCKET DIGGING FORCE | KN | 50 |
ARM DIGGING FORCE | KN | 25 |
GRADEABILITY | ° | 20 |
FUEL TANK | L | 125 |
HYDRAULIC OIL TANK | L | 105 |
WORKING RANGE | ||
A MAX.DIGGING RANGE | mm | 6758 |
B MAX.DIGGING DEPTH | mm | 4721 |
C MAX.DIGGING HEIGHT | mm | 4481 |
D MAX.DUMPING HEIGHT | mm | 6756 |
E MIN.TURNING RADIUS | mm | 4956 |
F AFTERBODY TURNING RADIUS | mm | 2431 |
G MAX.DIGGING RANGE ON THE GROUND LEVEL | mm | 1951 |
DIMENSION | ||
OVERALL LENGTH | mm | 6355 |
OVERALL WIDTH | mm | 2000 |
OVERALL HEIGHT(CAB TOP) | mm | 2710 |
OVERALL HEIGHT(BOOM TOP) | mm | 2617 |
UNDER BALANCE WEIGHT GROUND CLEARANCE | mm | 985 |
MIN.GROUND CLEARANCE | mm | 280 |
WHEEL BASE | mm | 2310 |
THE DISTANCE BETWEEN THE BOTH SIDE OF TYRES | mm | 1560 |
DOZER BLADE WIDTH | mm | 2024 |
DOZER BLADE HEIGHT | mm | 310 |
BOOM LENGTH | mm | 3500 |
ARM LENGTH | mm | 2000 |
Products Photos:
