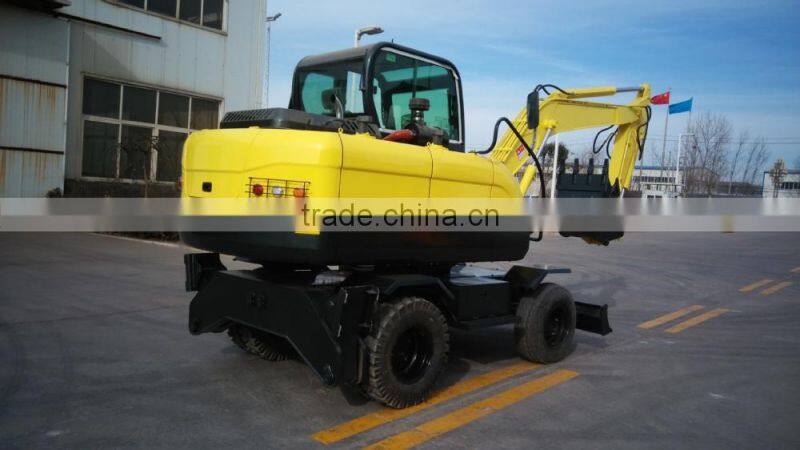

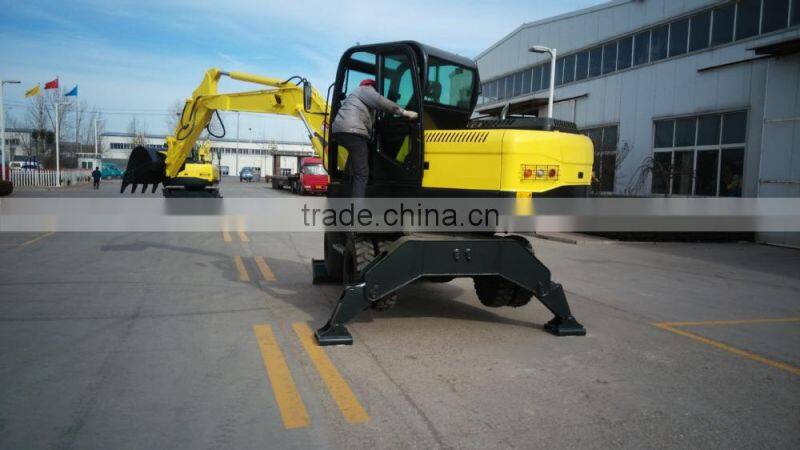

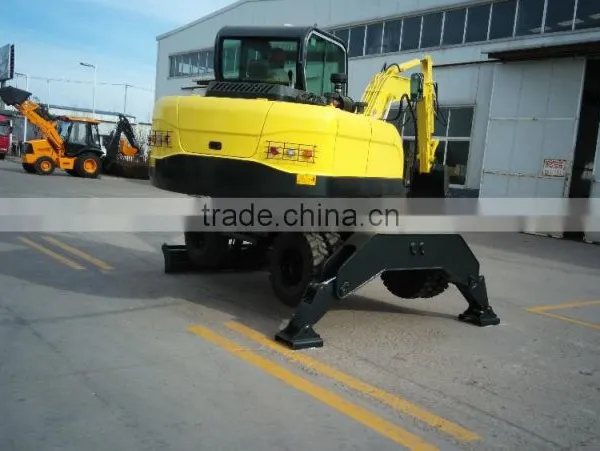

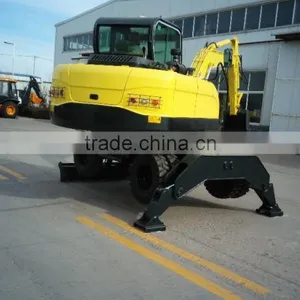

Help Center8T ZE980W Small Wheel Excavator With CUMMINSS Engine,2 Years Warranty , A/C ,for Sale
Related Products
-
12T Wheel Excavator With Big Power Engine , A/C, Good Quality for SaleUS$ 25,000 - 28,000MOQ: 1 Unit -
6T,7T,8T,10T Cheap Excavator With Wheel ,big Power Engine , A/CUS$ 25,000 - 28,000MOQ: 1 Unit
-
6T,7T,8T,10T Cheap Wheel ExcavatorUS$ 25,000 - 28,000MOQ: 1 Unit
-
8T ZE908W Mini Wheel Excavator With Chinese Engine for SaleUS$ 25,000 - 28,000MOQ: 1 Unit
-
6T ZE906W Mini Wheel Excavator With Chinese Engine for SaleUS$ 25,000 - 28,000MOQ: 1 Unit
ZOT WHEEL EXCAVATOR ZE907W
Engine:
XinChai(A498BPG)- standard form 40Kw/2300rpm &compression-adding type 48Kw/2300rpm with low fuel consumption, low noise and large power reserve
Primary pump:
Kawasaki main pumps from Japan, KYB pilot pump or domestic pumps
Master valve:
imported from South Korea with the inner confluence function of boom, arm and bucket& the domestic 183military hydraulic valve with the outer confluence function
Rotary bearing:
full sealed, waterproof, dust and pollution prevention
Item |
Unit |
Specification |
Model/Type |
|
ZE908W |
Operating weight |
kg |
8000 |
Bucket Capacity |
cbm |
0.3 |
Engine Model |
|
YTO(YTR4105G66L-4) |
Rated Power |
kw |
51.5KW |
Rated Speed |
r/min |
2300 |
Dimension |
mm |
7170x2190x3145 |
Height of cab |
mm |
1645 |
Ground Clearance |
mm |
300 |
Wheel Tread |
mm |
1650 |
Wheel Base |
mm |
2265 |
Tire Model |
|
14-17.5 8 Tires |
Rear Turning Radius |
mm |
1788/5500 |
Hydraulic Pressure |
Mpa |
18 |
Flow rate |
L/min |
120 |
Valve |
|
RUILONG--China |
Swing motor |
|
EATON--USA |
Hydraulic pump |
|
SHIMADZU--Japan |
Axle |
|
YTO--China |
Working Range | ||
Max. digging height |
mm |
4660 |
Max. digging depth |
mm |
3580 |
Max. Dumping height |
mm |
4660 |
Max. Digging depth vertically |
mm |
2250 |
Turning Radius |
mm |
2552 |
Max. digging distance |
mm |
5975 |
Max. digging force |
KN |
62 |
Rotating speed |
r/min |
13 |
a. Machinery Gurantee
The Gurantee Of Machine is 1Year or 2000 working Hours
b.Machinery Parts Sevice
The Vulnerable And Manitence Parts List would be supplyed once make a confirmation .Some Vulnerable Parts would be supplyed for free .
c.Machinery Testing
All the machinery will be tested befor exporting to ensure the good working condition.
service
all the inquiry and questions about the mahiney will be replyed within 24 hours.
