Hebei manufactory Cable 35mm2 sigle core XLPE insulation Power Cable
1. Standard of XLPE Cable: According to GB12706( Equal to IEC60502)Also can do by standard of ASTM,BS,DIN and AS/NZS or other standards as request.
2. Rated Voltage of XLPE Cable:0.6/1KV 6/10KV;8.7/15KV;12/20KV;18/20KV;21/35KV;6/35KV

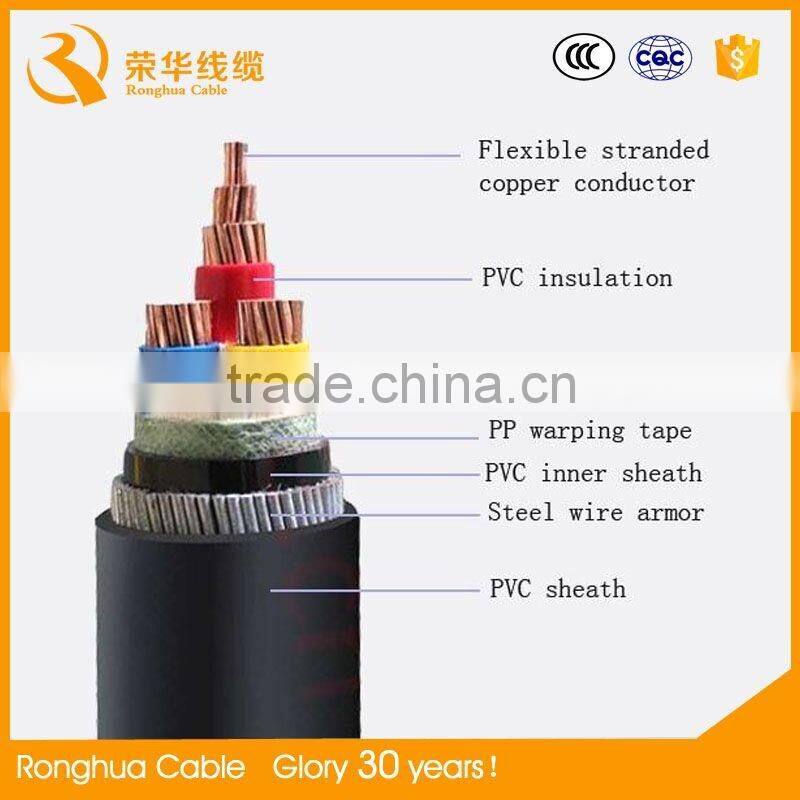

3. Construction of XLPE Cable:
Conductor:Copper or Aluminum
Insulation:XLPE
Inner sheath:PVC or PE
Armoured:Galvanized steel tape,Galvanized steel wire
Outer Sheath:PVC or PE
NO. of cable cross: 1 core(Single core),2cores(Double cores),3cores, 4cores(4 equal-section-area cores OR 3 equal-section-area+1 small section area neutral core),5cores(5 3 equal-section-area cores+2 small area neutral cores OR 4 equal-section-area +1 small area neutral cores).We provide armored type and non-armored type for the cables stated above.
Also can do according to the customer's request.
4. Characters of XLPE Cable:
a.Max Long-time operating temperature of XLPE insulated cable is 90°C
b.Installing temperature of cable should not be less than 0°C
c.Max short-circuit temperature is not exceed 250°C,Not more than5 Sec.
d.Unable be laid without the limit of fall with enough mechanical pull,Single core cable can not be laid in iron tube or fixed by circled iron tools around cables
According to GB12706( Equal to IEC60502)Also can do by standard of ASTM,BS,DIN and AS/NZS or other standards as request.
2. Rated Voltage of XLPE Cable:0.6/1KV 6/10KV;8.7/15KV;12/20KV;18/20KV;21/35KV;6/35KV
3. Construction of XLPE Cable:
Conductor:Copper or Aluminum
Insulation:XLPE
Inner sheath:PVC or PE
Armoured:Galvanized steel tape,Galvanized steel wire
Outer Sheath:PVC or PE
NO. of cable cross: 1 core(Single core),2cores(Double cores),3cores, 4cores(4 equal-section-area cores OR 3 equal-section-area+1 small section area neutral core),5cores(5 3 equal-section-area cores+2 small area neutral cores OR 4 equal-section-area +1 small area neutral cores).We provide armored type and non-armored type for the cables stated above.
Also can do according to the customer's request.
4. Characters of XLPE Cable:
a.Max Long-time operating temperature of XLPE insulated cable is 90°C
b.Installing temperature of cable should not be less than 0°C
c.Max short-circuit temperature is not exceed 250°C,Not more than5 Sec.
d.Unable be laid without the limit of fall with enough mechanical pull,Single core cable can not be laid in iron tube or fixed by circled iron tools around cables
Model |
Name |
YJV/YJLV |
Cu or conductor ,XLPE insulated.PVC sheathed electric cable |
YJV22/YJLV22 |
Cu or AL conductor,XLPE insulated steel tape armoured PVC sheathed electric cable |
|
YJV32/YJLV32
|
Cu or AL conductor,XLPE insulated steel wire armoured PVC sheathed electric cable |
1. Any inquiries will be replied within 24 hours.
2. OEM/ODM available.
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
3. High quality, reasonable and competitive price, fast lead time.
4. Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
5. Faster delivery.
Sample order in stock, and 3-7 days for bulk production.
6. Payment
We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.
7. Package
Standard Export Wooden or Steel Drums or as per Customer's Requirement
8. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products
Welcome your inquiry of power cables, please kindly inform us the section area, insulation material, quantity, and your application. So that we could quote accordingly.
