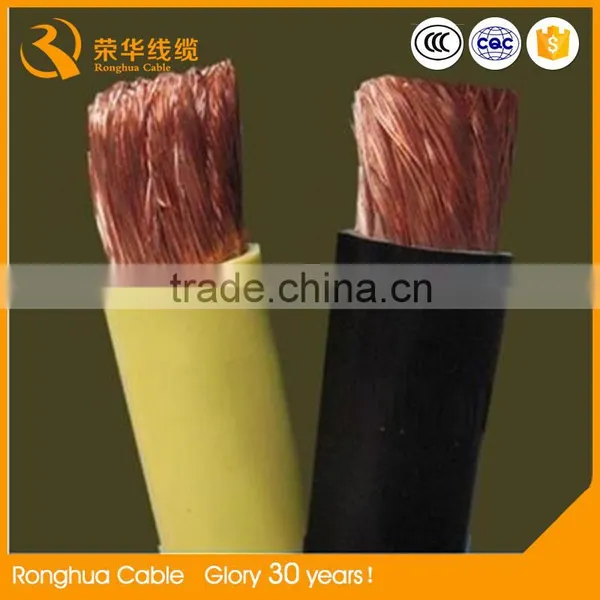

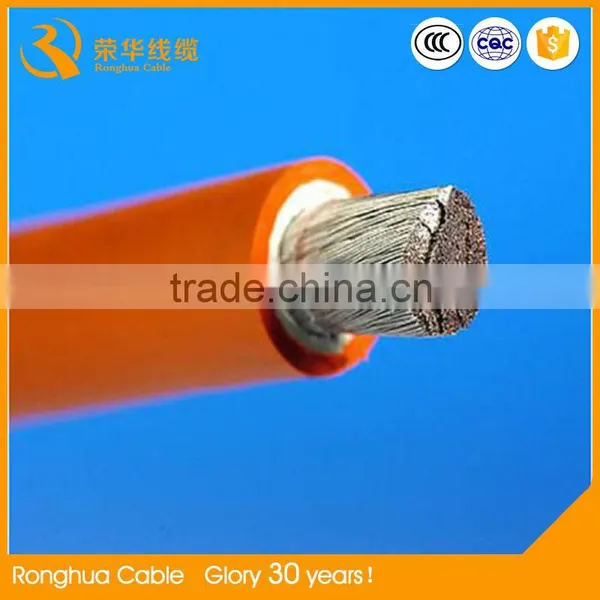

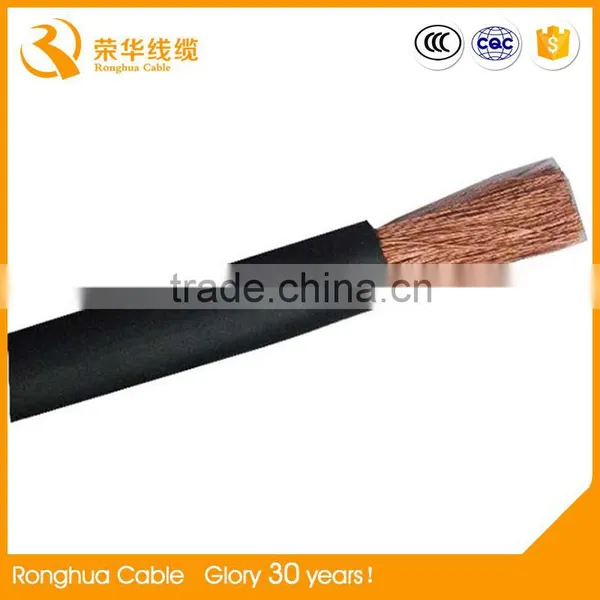

Welding Cable 4/0 - 6 gauge american made flexible welding cable
Welding Cable 4/0 - 6 gauge american made flexible welding cable

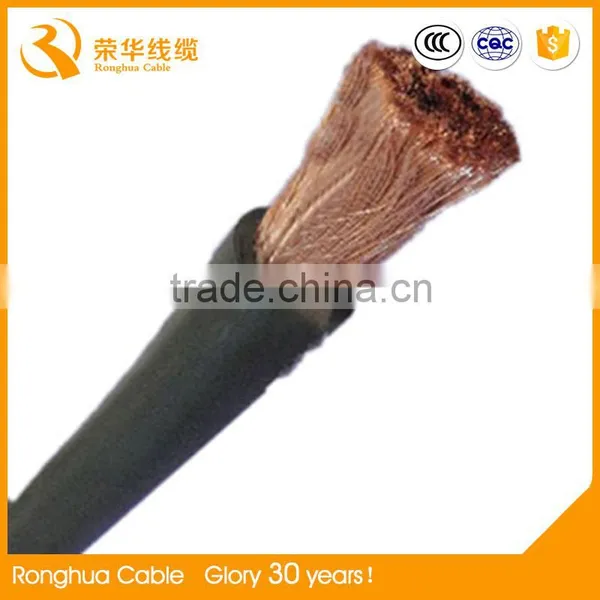

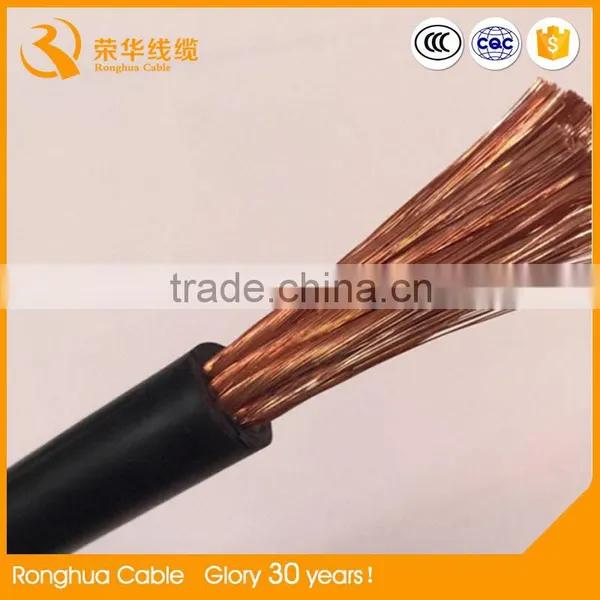

H01N2-E/H01N2-D welding cable For the transmission of high
currents from the electric welding device to the welding tool.
1. Service conditions
Welding cable is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value
is 400V.
2.Working information
|
Model
|
Name
|
Main applications
|
Working temperatur of core ≤℃ |
|
YH
|
Natural Rubber Sheath for Welding Cable |
Always used indoor
|
65
|
|
YHF
|
Neoprene Rubber Sheath Welding Cable |
Always used outdoor
|
65
|
Synthetic elastomer Sheath Welding Cable |

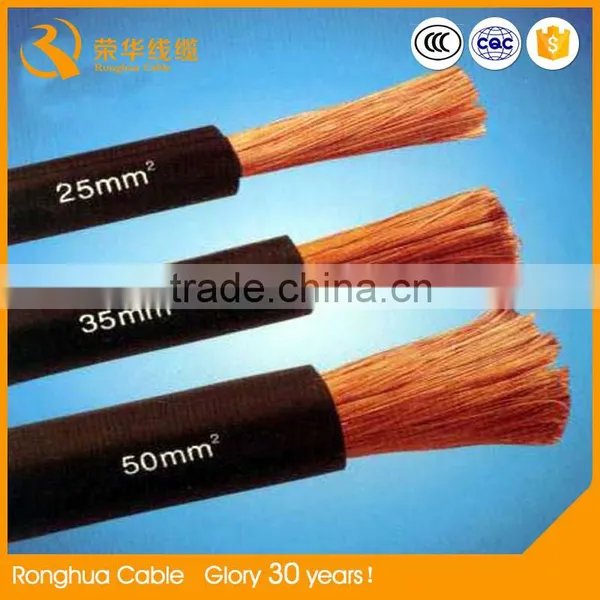

3.Products datas
welding cable H01N2-D 60245 IEC 81 (YH) 60245 IEC 82(YHF)
| Nom. | Max. Dia. | Nom. Cover | Average O.D. mm | Maximum DC | ||
| Area | of wire | Thickness | Resistance at 20°C | |||
| 2mm | mm | mm | Ω/km | |||
| Min. | Max. | Tinned copper | Untinned copper | |||
| 10 | 0.21 | 2 | 7.7 | 9.7 | 1.95 | 1.91 |
| 16 | 2 | 8.8 | 11 | 1.24 | 1.21 | |
| 25 | 2 | 10.1 | 12.7 | 0.795 | 0.78 | |
| 35 | 2 | 11.4 | 14.2 | 0.565 | 0.554 | |
| 50 | 2.2 | 13.2 | 16.5 | 0.393 | 0.386 | |
| 70 | 2.4 | 15.3 | 19.2 | 0.277 | 0.272 | |
| 95 | 2.6 | 17.1 | 21.4 | 0.21 | 0.206 | |
| 120 | 0.51 | 2.8 | 19.2 | 24 | 0.164 | 0.161 |
| 150 | 3 | 21.1 | 26.4 | 0.132 | 0.129 | |
| 185 | 3.2 | 23.1 | 28.9 | 0.108 | 0.106 | |

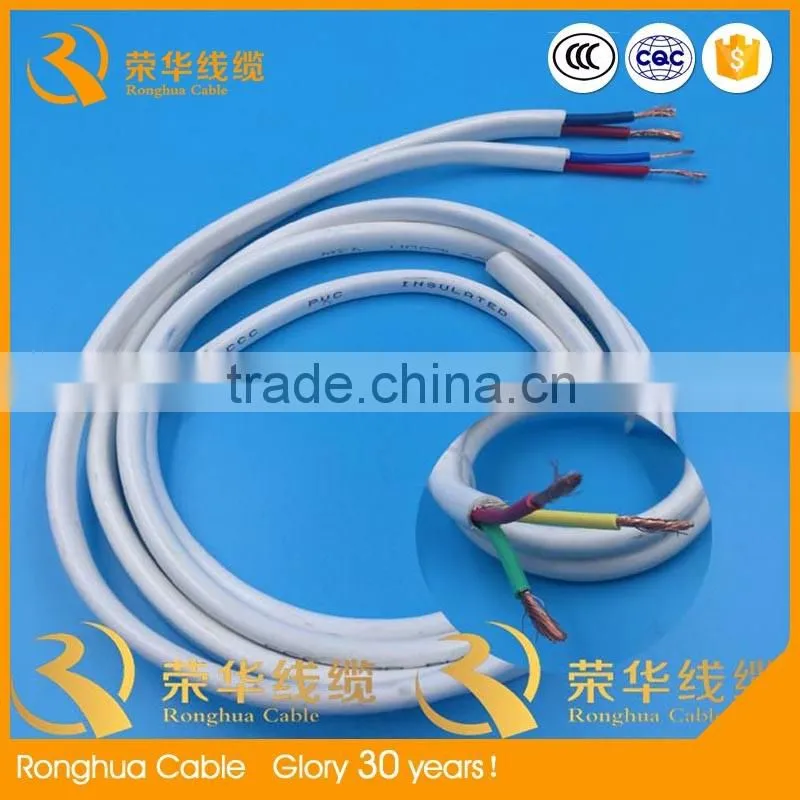

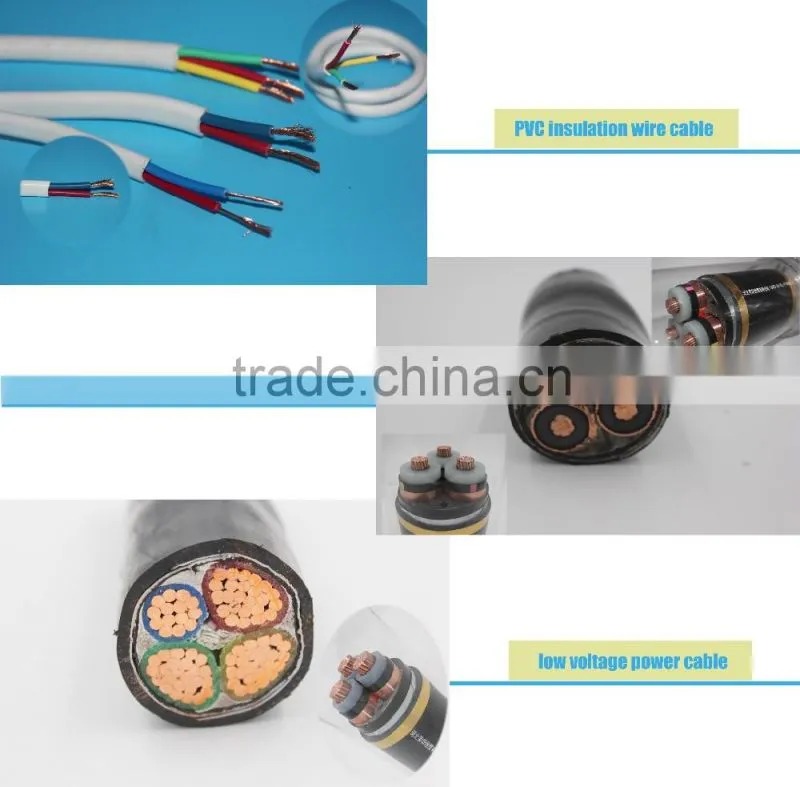

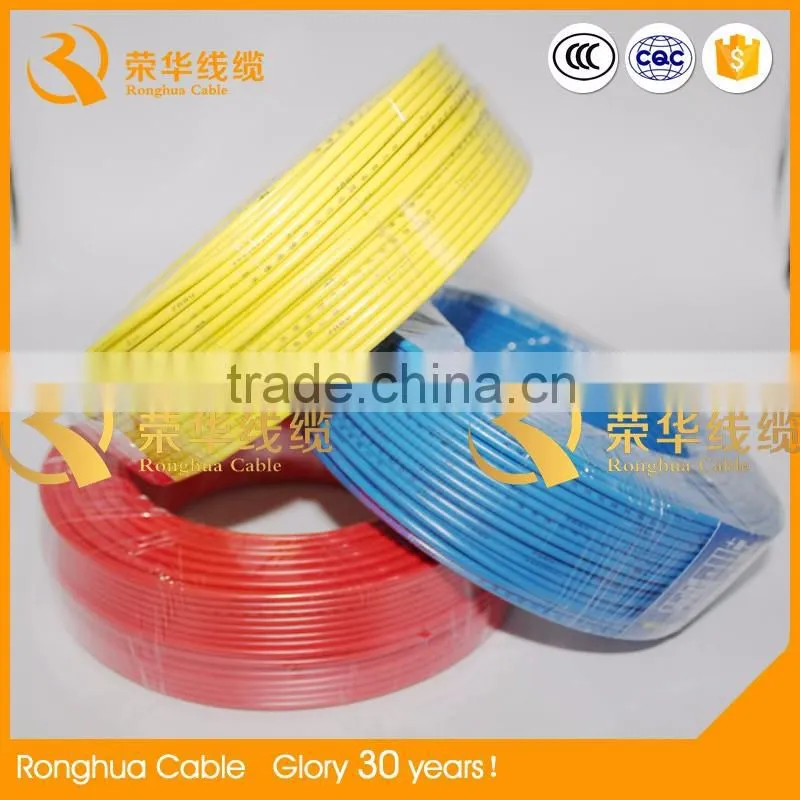

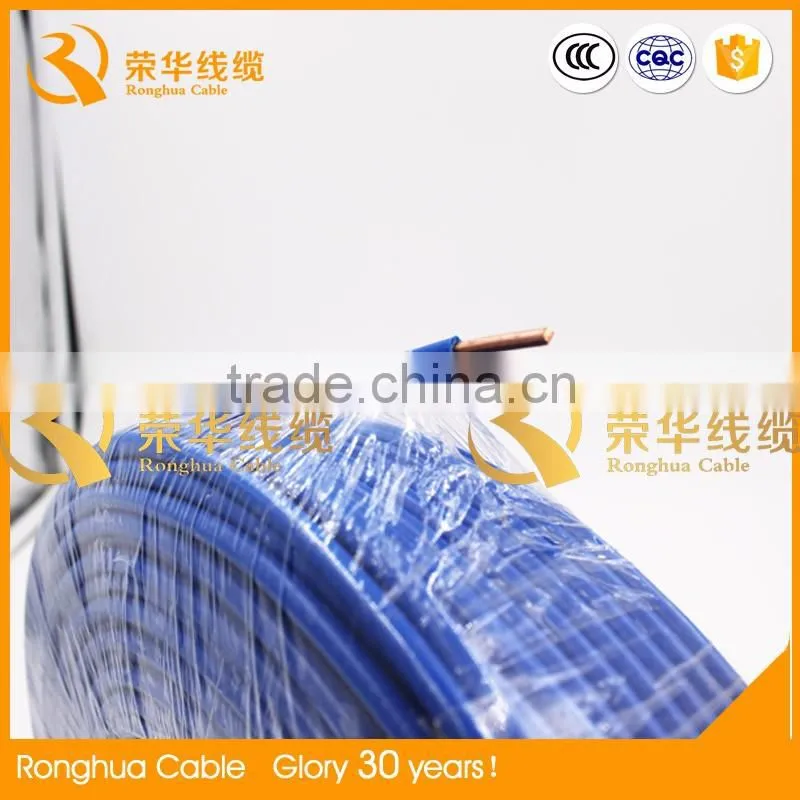

bv house wire cable pvc insulated wire cable xlpe sheath wire cable

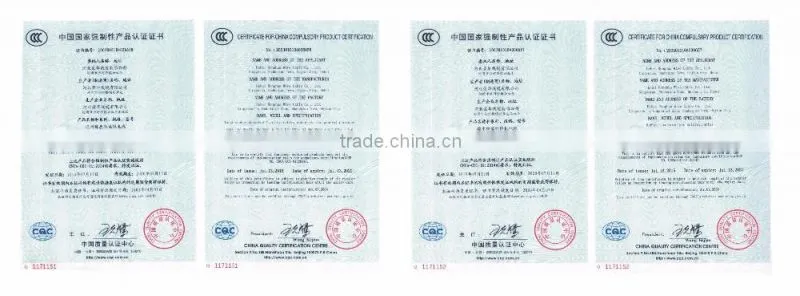

Certifications Required:
1.When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
