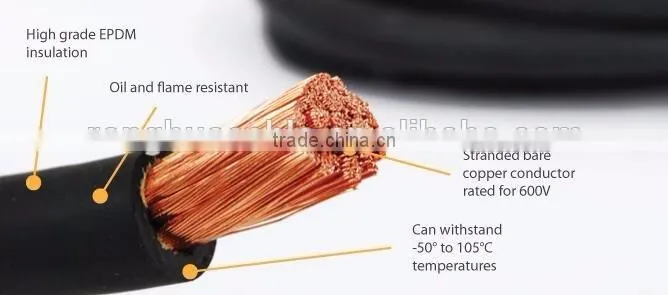

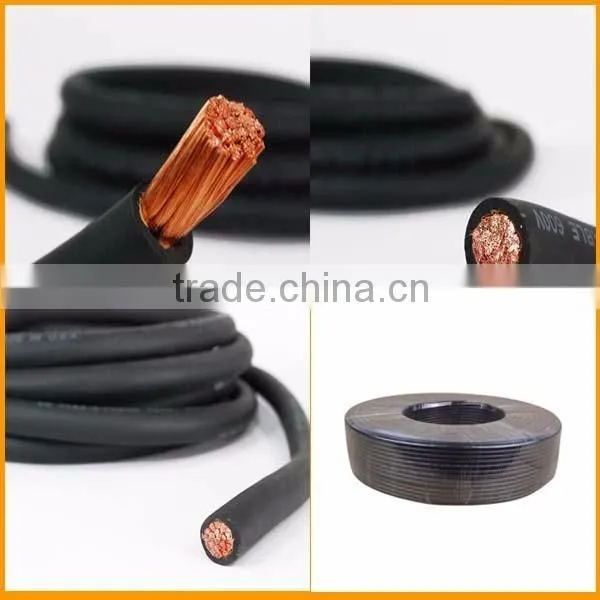

Low Voltage Industrial Red Copper Wire Conductor Rubber Insulation Weld Cable

US$ 0.1 - 50 MOQ: 200 Meters

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Model Number:

YH flexible welding cable

Hebei Ronghua Wire And Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Xingang

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name RH

Model Number YH flexible welding cable

Insulation Material Rubber

Type Low Voltage

Application Other, Welding Machine used cable

Conductor Material Copper

Jacket Rubber

Hebei Ronghua Wire Cable Co,.LTD

Product Description

1>Service Conditions For Weld Cable

This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.

No.Cross-section 10mm2-185mm2

Conductor material: CU or CCA. ( Based on client's requirements )

Sheathing material: Natual Rubber, Neoprene Rubber, EPDM

2>Model , Names and Work in this Temperature

Model	Name	Main applications	Working temperature of core ≤⁰C
YH	Natural Rubber Sheath for Welding Cable	Always used indoor	65
YHF	Neoprene Rubber Sheath Welding Cable	Always used outdoor	65
YHF	Synthetic elastomer Sheath Welding Cable	Always used outdoor	65

3> Technical Parameters Rubber Welding Cable 10/16/25/35/50/7095/120/150/185mm2

Conductor Nominal Section (mm2)	Conductive Core	Thickness of Section Sheath (mm)	Average Outer Diameter (mm2)		20oC Conductor Resistance≤(Ω/km)	Reference Weight(kg/km)
Conductor Nominal Section (mm2)	Number/Diameter of Core(mm)	Thickness of Section Sheath (mm)	Min	Max	20oC Conductor Resistance≤(Ω/km)	YH	YHF
10	322/0.20	1.8	7.5	9.7	1.91	146	153.51
16	513/0.20	2.0	9.2	11.5	1.16	218.9	230.44
25	798/0.20	2.0	10.5	13.0	0.758	316.6	331.15
35	1121/0.20	2.0	11.5	14.5	0.536	426	439.87
50	1596/0.20	2.2	13.5	17.0	0.379	592.47	610.55
70	2214/0.20	2.4	15.0	19.5	0.268	790	817.52
95	2997/0.20	2.6	17.0	22.0	0.198	1066.17	1102.97
120	1702/0.30	2.8	19.0	24.0	0.161	1348.25	1392.55
150	2135/0.30	3.0	21.0	27.0	0.129	1678.5	1698.72
185	1443/0.40	3.2	22.0	29.0	0.106	1983.8	2020.74
