VDE Standard Leading wire PVC/Rubber insulation and sheath 185mm2 super flexible welding ground cable
- 7000000 Meter / Meters per Month
- Tianjin Xingang
- T/T L/C D/P D/A Credit Card PayPal
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Hebei, China | Brand Name: | RH | Model Number: | YH YHF |
Insulation Material: | Rubber | Type: | Low Voltage | Application: | Other, welding machine, welding tools,ship building |
Conductor Material: | Copper | Jacket: | Rubber |
Product Description

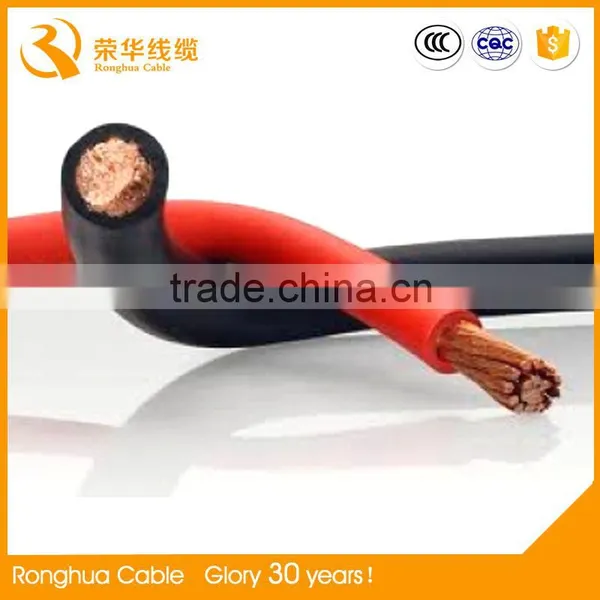

VDE Standard Leading wire PVC/Rubber insulation and sheath 185mm2 super flexible welding ground cable
Hebei Ronghua Wire And Cable Co.,LTD- Single Tinned Copper Core Flex Welding Cable
H01N2-D is a harmonized, flexible, rubber jacketed welding cable. This cable is designed for the transmission of high currents from electric welding machines to the welding tool on manually or automatically operated line and spot welding machines. Also suitable for assembly lines and conveyor systems in the ship building, automobile industry and tool making industries. H01N2-D cables retain their high flexibility even under the influence of ozone, light, oxygen, protective gases, and oils. The robust jacket and construction aids in the resistance to both hot and cold temperatures as well as to flames. They are suitable for use outdoors in dry or damp conditions.
Construction: - Extra fine bare copper strands - Strands to VDE-0295 as listed below - Synthetic or paper separator over core - Polychloroprene rubber (neoprene) jacket - UV, heat, cold and flame resistant
Technical: - Working voltage: 100/100 volts - Test voltage: 1000 volts - Flexing bending radius: 12.0 x Ø - Fixed bending radius: 7.5 x Ø - Flexing Temp: -25º C to +80º C - Fixed Temp: -40º C to +80º C - Flame retardant: IEC 60332.1
What's the Technical Parameters welding cable?
Conductor Nominal Section (mm2)
| Conductive Core
| Thickness of Section Sheath (mm) | Average Outer Diameter (mm2) | 20oC Conductor Resistance≤(Ω/km) | Reference Weight(kg/km) | ||
Number/Diameter of Core(mm) | Min | Max | YH | YHF | |||
10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 316.6 | 331.15 |
35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 592.47 | 610.55 |
70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 790 | 817.52 |
95 | 2997/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 1066.17 | 1102.97 |
120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 1348.25 | 1392.55 |
150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.129 | 1678.5 | 1698.72 |
185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 1983.8 | 2020.74 |
How to Choosing The Correct Welding Cables?
Choosing the correct welding cable size (diameter) depends on the maximum output amperage of the welder – the more amps produced the bigger the cable needs to be. It’s like a garden hose vs a fire fighting hose – the more water that is required the larger the diameter of the hose needs to be.
To choose the correct size 3 factors need to be considered – the total length of the welding circuit (including the full length of both the electrode and work cables), the welder’s rated electrical output and the welder’s duty cycle (% of a ten-minute period that the welder will operate at a particular output current before exceeding its thermal limit). If greater flexiblity is required, choose Super flexibleWelding Cable.
1>. We’re a professional manufacturer for over 30 years
2>. High quality assurance with competitive price
3>. OEM & ODM are available
4>. Any of your feedback will be responded within 12 hours
Packaging:
Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping:
Port: Tianjin, or other ports as per your requireents.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
Hebei Ronghua Wire And Cable Co.,LTD, a professional manufacture of various of Electric Power Cables, Rubber Sheath Flexible Cable, Housing Wiring Electric Wires for more than 30 years experience. Surely we could provide you the factory price, stable quality, professional service. For any information, please kindly contact us.
Certifications:
Related Products:
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Any questions, please kindly contact us freely! We will reply you within 12 hours!
