Single Core Stranded Copper Conductor Super Flexible 250mm Cables welding
- 7000000 Meter / Meters per Month
- Tianjin Xingang
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | RH | |
| Model Number | YH flexible welding cable | Insulation Material | Rubber | |
| Type | Low Voltage | Application | Other, Welding Machine | |
| Conductor Material | Copper | Jacket | Rubber |
Product Description

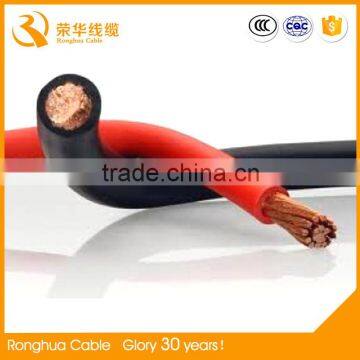

Single Core Stranded Copper Conductor Super Flexible 250mm Cables welding
Sheathed Flexible Welding Cable
1>Service Conditions
This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.
2>NO. Cross-Section Range : 10mm2 ~240mm2
3> Conductor Material
Copper, Tinned Copper or CCA,CCA(Copper clad aluminum) or CCAM (Copper Clad Aluminum Magnesium Wire)
4> Jacket/ Sheath Material:
Natual Rubber, Neoprene Rubber, EPDM,PVC,TPE, as customers' design
| Copper Welding Cable | Aluminum Welding Cable |
 | |
| Rubber Welding Cable | PVC Welding Cable |
| |
| Welding Ground Cable | Welding Cable Specifications |
| |
| Rubber Insulated flexible welding cable | Stranded Copper Welding Flexible Cable |
| |
5>Model , Names and Work in this Temperature
Model | Name | Main applications | Working temperature of core ≤0C |
YH | Natural Rubber Sheath for Welding Cable | Always used indoor | 65 |
YHF | Neoprene Rubber Sheath Welding Cable | Always used outdoor | 65 |
Synthetic elastomer Sheath Welding Cable |
6> Technical Parameters Rubber Welding Cable 10/16/25/35/50/7095/120/150/185mm2
Conductor Nominal Section (mm2)
| Conductive Core
| Thickness of Section Sheath (mm) | Average Outer Diameter (mm2) | 20oC Conductor Resistance≤(Ω/km) | Reference Weight(kg/km) | ||
Number/Diameter of Core(mm) | Min | Max | YH | YHF | |||
10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 316.6 | 331.15 |
35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 592.47 | 610.55 |
70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 790 | 817.52 |
95 | 2997/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 1066.17 | 1102.97 |
120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 1348.25 | 1392.55 |
150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.129 | 1678.5 | 1698.72 |
185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 1983.8 | 2020.74 |
7> Strand Copper Process:
Flexible Welding Cable Packaging:
1. 100 m per roll, then in wooden pallet.
2. Drums, drum size will be choosen according to your quantity.
3. As customers' design
rubber welding cable shipping items:
Hebei Ronghua Wire And Cable Co.,LTD, established in 1984, a professional manufacture of various types cables, mainly welding cable, H/M/L voltage power cables, house wiring electric wire and etc. As a professional Welding Cable Manufacture, we could provide the competitve price and control the delivery in time.
Certifications:
Other Wire and Cable Products:
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
For more information of welding cable, please kindly contact us freely! We will reply you within 12 hours!
